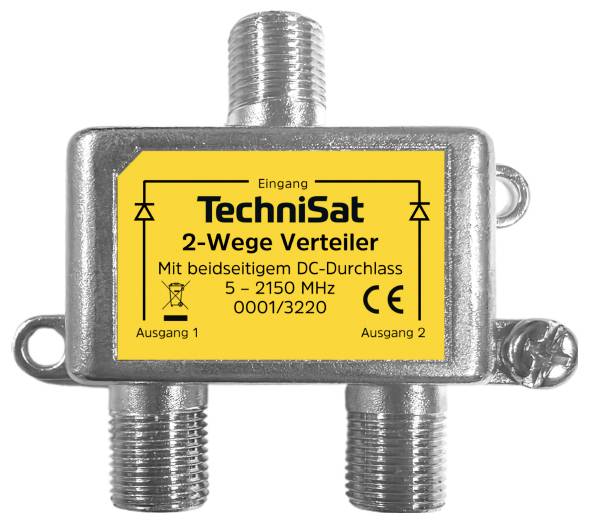

TechniSat 2-Wege-Verteiler SAT splitter 2-way 5 - 2150 MHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Bypass
- 5 - 862 MHz - Type. 16 dB (less than 40 MHz = 8 dB)
- 950 - 1750 MHz - Type. 15 dB
- 1750 - 2150 MHz - Type. 12 dB
- F-socket connection type
- Impedance: 75 Ω
- Type
2-way
- Frequency range
5 - 2150 MHz
- Participants
2
- No. of inputs
1 x
- SAT damping
12 dB, 16 dB
- Decoupling (H/V)
16 dB
- Operating voltage
5 - 2150 M. Hz
- Shielding rating
≥ 75 dB EN 50083-2 (Class A) dB
- Weight
41 g
- Dim
(L x W x H) 1.7 x 5.5 x 5.4 cm
- Length
1.7 cm
- Height
5.4 cm
- Width
5.5 cm
- Product type
SAT splitter
Documents & Downloads
Datasheet
Datasheet 3466159 TechniSat 2-Wege-Verteiler SAT splitter 2-way 5 - 2150 MHz
User & Safety Instructions
User & Safety Instructions 3466159 TechniSat 2-Wege-Verteiler SAT splitter 2-way 5 - 2150 MHz
Description
Broadband 2-way distribution for the distribution of the 1. Satellite intermediate frequency
The distributor works in the frequency range 5 - 2150 MHz and each has F-sockets on the input and output side.
The outputs are DC diode-uncoupled and have a DC-passage. As a result, the splitter can also be used in TECHNIROUTER systems.
This text is machine translated.
The distributor works in the frequency range 5 - 2150 MHz and each has F-sockets on the input and output side.
The outputs are DC diode-uncoupled and have a DC-passage. As a result, the splitter can also be used in TECHNIROUTER systems.
This text is machine translated.
Features
- DC pass-through
- DC diode-isolated
- DiSEqC compatible
- TECHNIROUTER-enabled
Scope of delivery
- 2-way sat distributor
