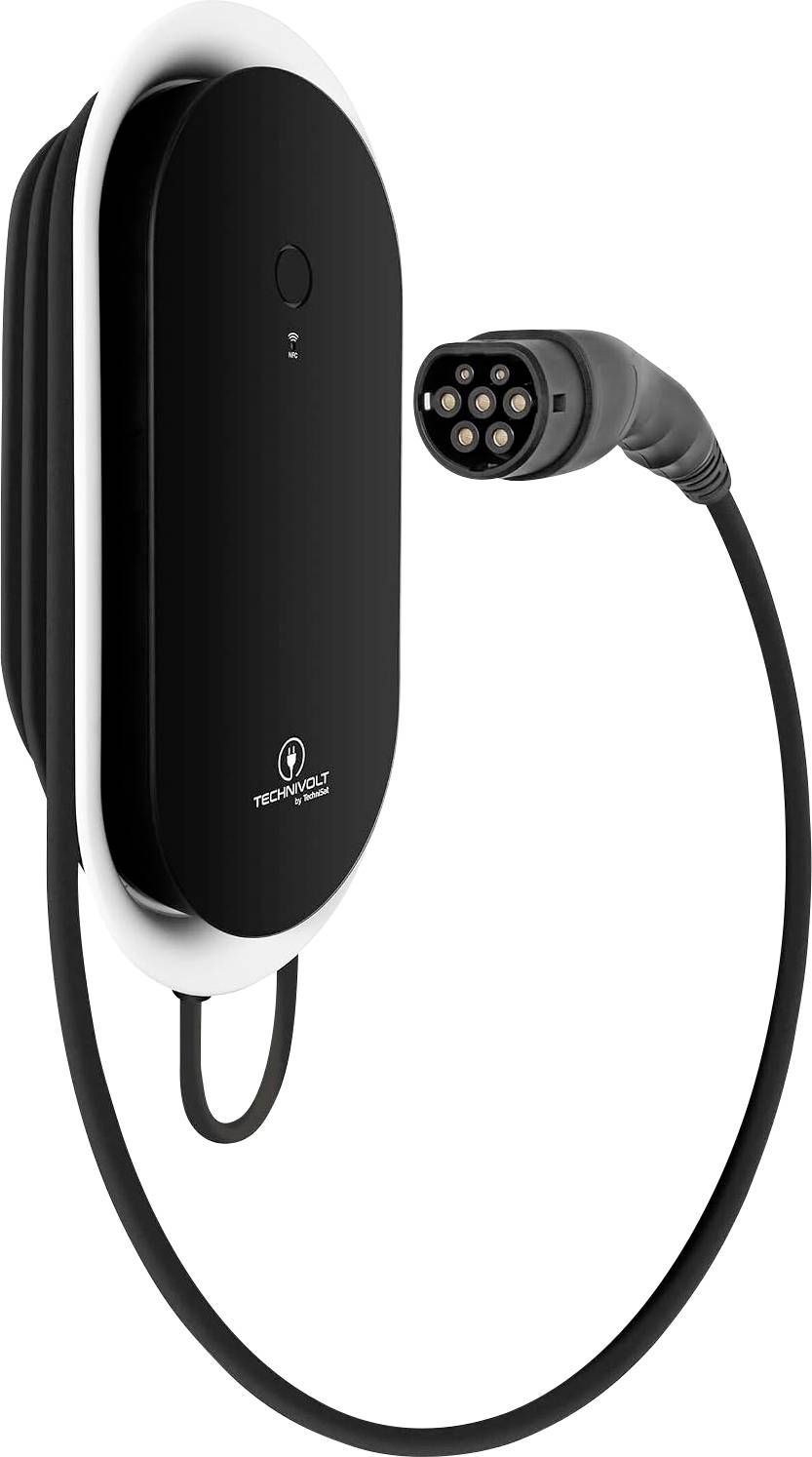

TechniSat TECHNIVOLT 1100 Wallbox Type 2 Mode 3 No. of ports 1 11 kW RFID
EAN:
Part number:
Item no:
Highlights & Details
TechniSat TECHNIVOLT 1100 black, white wall 3
- For private charging at home: TECHNIVOLT enables quick and safe charging at home with numerous advantages

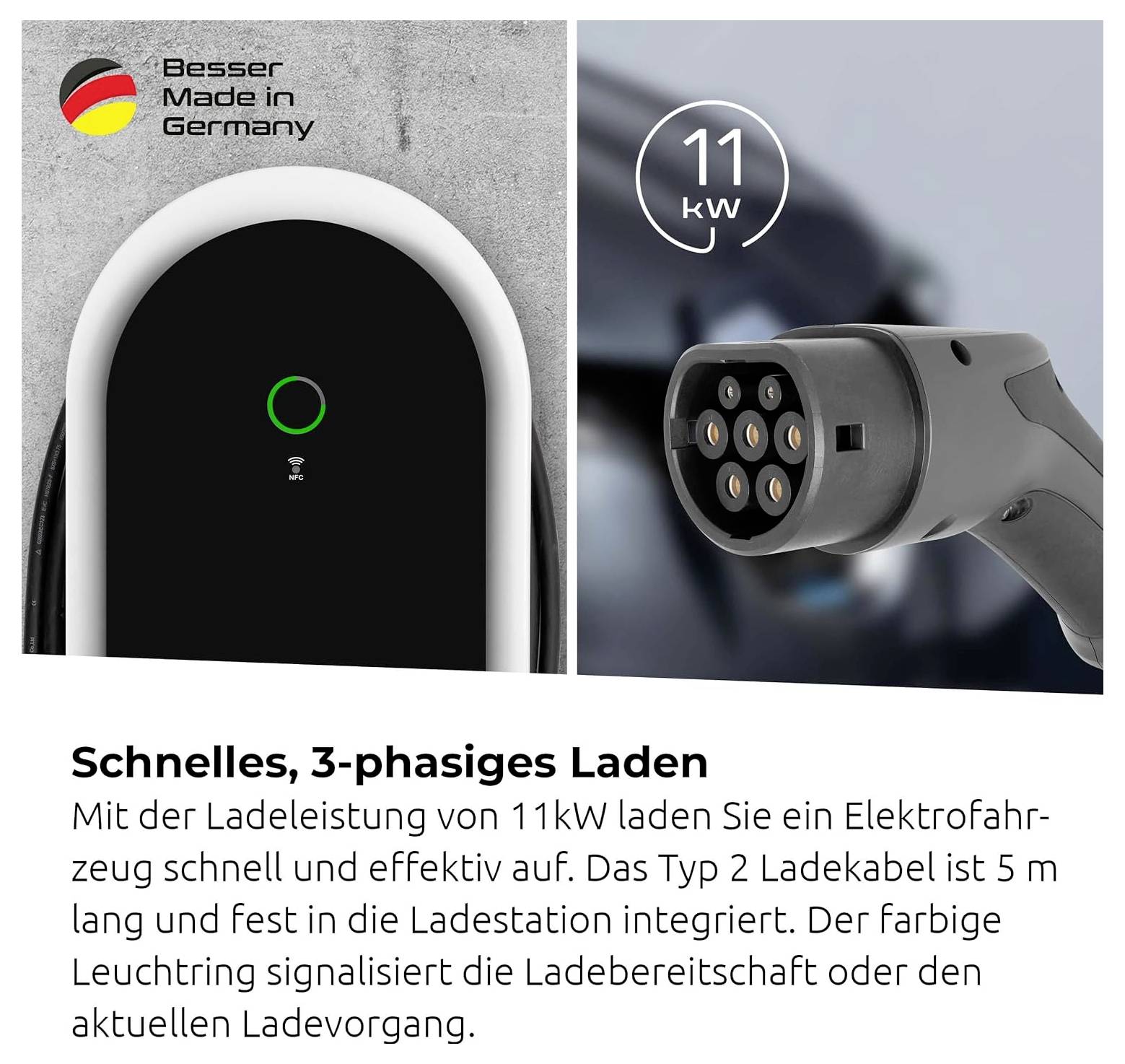

- Type 2 charging plug: TECHNIVOLT uses the widely used type 2 charging plug in Europe, which is now the standard 11kW for extra fast charging of the car - including permanently connected charging cable
- Protected by RFID-card: An access protection makes sense, in order to prevent unauthorized persons from loading. It can only be used with registered user cards (2 included in delivery)
- TechniSat charging solutions are suitable for everyday use, easy to use, future-proof and meet the highest performance and quality requirements

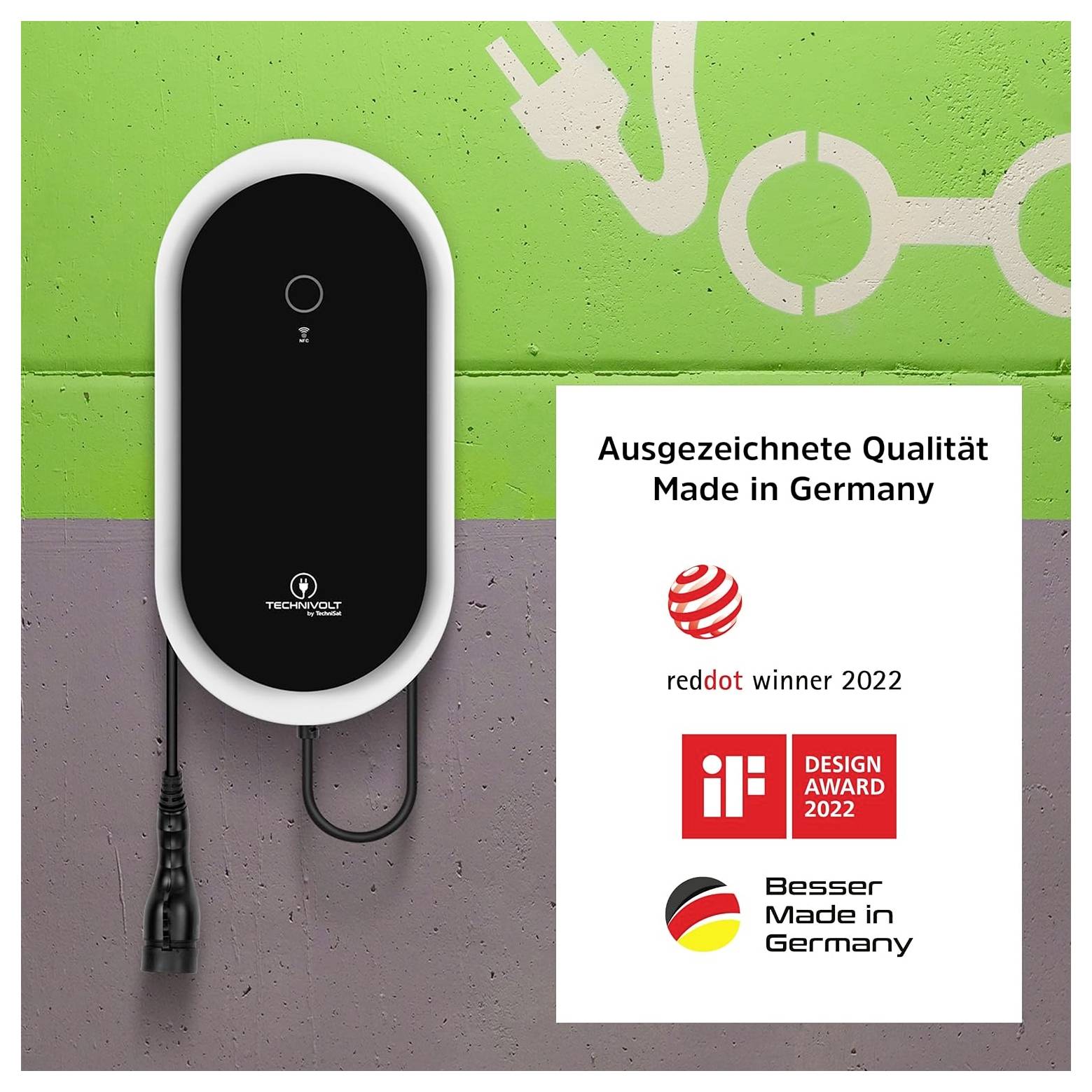

- The Wallbox TECHNIVOLT 1100 is made in Germany

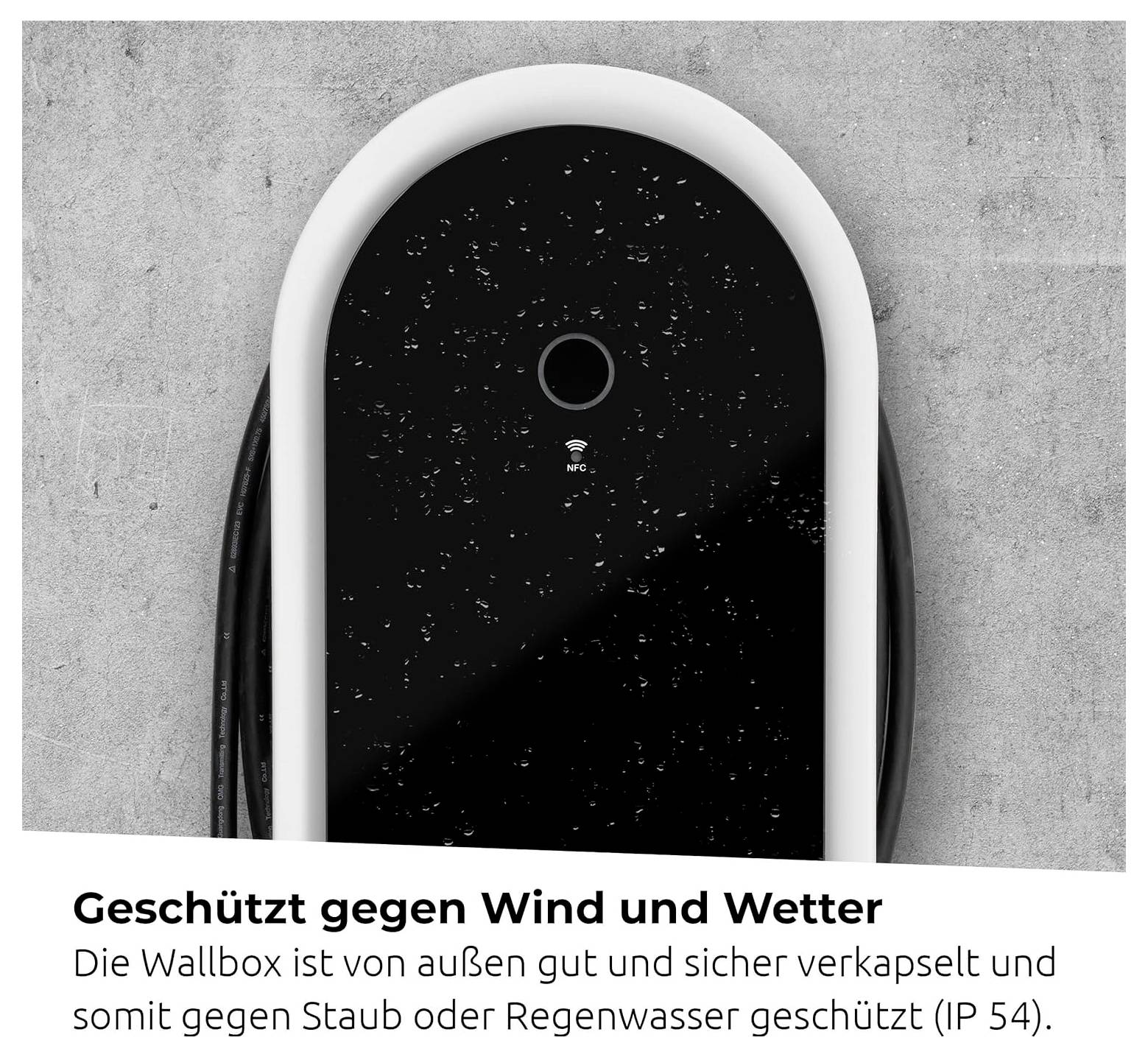

- IP54
- Plug & Charge ISO 15118 certified
- Suitable for an OCPP backend
Technical specifications
- Housing material: Plastic, flame-proof
- The following back-end providers are certified and therefore compatible:
- VIRTA
- Charge point
- Ladenetz.de
- MONTH
- COMPO
- Charge IQ
- Spiri
- Product type
Wallbox
- Authorisation
RFID
- Charger connectors
Type 2
- Charging mode
Mode 3
- No. of ports
1
- Charging capacity
11 kW
- No. of phases
3-phase
- Nominal voltage
230 V
400 V
- Cable length
5 m
IP54
- Factory colour
Black
White
- Width
340 mm
- Height
1120 mm
- Depth
660 mm
- Weight
8.06 kg
- Max. temperature
70 °C
- Min. temperature
-30 °C
- Wi-Fi
Yes
- UKCA
not relevant
- Ethernet LAN
yes
- Storage relative humidity (H-H)
5 - 95 %
- RFID reader
yes
- Charging cable length
5 m
- Quantity per pack
1 Stück(e)
- Nominal frequency
50 Hz
- Maximum operating current per phase
16 A
- Maximum operating current (three-phase)
16 A
- Integrated charging cable
yes
- Number of phases
3
- Storage temperature (T-T)
-30 - 70 °C
- Package weight
10.4 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3841212 TechniSat TECHNIVOLT 1100 Wallbox Type 2 Mode 3 No. of ports 1 11 kW RFID
Description
For private charging at home
The TECHNIVOLT 1100 enables fast and safe charging at home. In contrast to this, charging using a conventional socket does not only lead to longer charging times, but is also associated with a high safety risk. Moreover, your own Wallbox at home offers you another big advantage as compared to public charging stations: You can determine even via the electricity provider and thus via the price for charging your E-car.
The mounting possibilities of the TECHNIVOLT 1100 are as numerous as the advantages. It can be installed under the carport, in the garage or underground car park and even in the driveway – anywhere where you park your electric car. For those who do not wish to or may not damage the building material of a wall (third-party property), mounting on a stand with the TECHNIVOLT 1100 is also possible.
This text is machine translated.
The TECHNIVOLT 1100 enables fast and safe charging at home. In contrast to this, charging using a conventional socket does not only lead to longer charging times, but is also associated with a high safety risk. Moreover, your own Wallbox at home offers you another big advantage as compared to public charging stations: You can determine even via the electricity provider and thus via the price for charging your E-car.
The mounting possibilities of the TECHNIVOLT 1100 are as numerous as the advantages. It can be installed under the carport, in the garage or underground car park and even in the driveway – anywhere where you park your electric car. For those who do not wish to or may not damage the building material of a wall (third-party property), mounting on a stand with the TECHNIVOLT 1100 is also possible.
This text is machine translated.
Features
- Charging mode 3 in accordance with IEC 61851
- Per phase 16A charging current, also single-phase charging possible
- RFID function for activating the charging processes
Scope of delivery
- TechnivoLT 1100 charging station
- Front glass panel
- Installation guide
- User manual
- Mounting template
- Mounting set (4x Fischer SXRL 8 x 60 FUS A4)
- Allen key (TR 20)
- Locking screw for glass pane (TR 20 M4)
- 2x user RFID-card
