Teledyne LeCroy Oszilloskop-Tastkopf Probe 1 GHz 10:1 15 V
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 2,284.80 / piece)
€ 2,284.80
incl. VAT
14-day return policy included
Highlights & Details
Teledyne LeCroy, 1 GHz, 0.9 pF, 1 MΩ high-resistance active oscilloscope probe
- 10:1
- Bandwidth 1 GHz
Technical specifications
- Output impedance: 50 Ω
- Product type
Probe
- Bandwidth
1 GHz
- Divider voltage ratio
10:1
- Slew rate
500 ps
- Nominal voltage
15 V
- Input capacity
0,9 pF
- Input resistance
1000 kΩ
- Type
ZS1000A
Manufacturer's standards (no certificate)
- Weight
110 g
- Cable length
1.3 m
- Calibration service
Factory standard
- Compatible with (details)
Teledyne LeCroy oscilloscopes with ProBus interface
Documents & Downloads
Datasheet
Datasheet 3864036 Teledyne LeCroy Oszilloskop-Tastkopf Probe 1 GHz 10:1 15 V
User & Safety Instructions
User & Safety Instructions 3864036 Teledyne LeCroy Oszilloskop-Tastkopf Probe 1 GHz 10:1 15 V
Description
Engineers often have to scan high frequency signals with high signal fidelity. Typical passive probe heads with high input R and C deliver good response at lower frequencies, but load the circuit too much at higher frequencies and distort the signal. Active voltage probes have a high input resistance (R) as well as a low input capacity (C) to reduce the switching load across the entire probe and oscilloscope bandwidth. Thanks to this low circuit load and a compact format, which allows measurements even in difficult to reach places, the active voltage probe becomes the daily standard tool for various signals and contact points.
This text is machine translated.
This text is machine translated.
Features
- The probes of the ZS-A series are high-resistance, low-capacity active probes that ensure a high signal reliability up to 4 GHz. A compact design and a large selection of accessories ensure that the probe of the ZS-A series is suitable for every demanding measurement task.
Scope of delivery

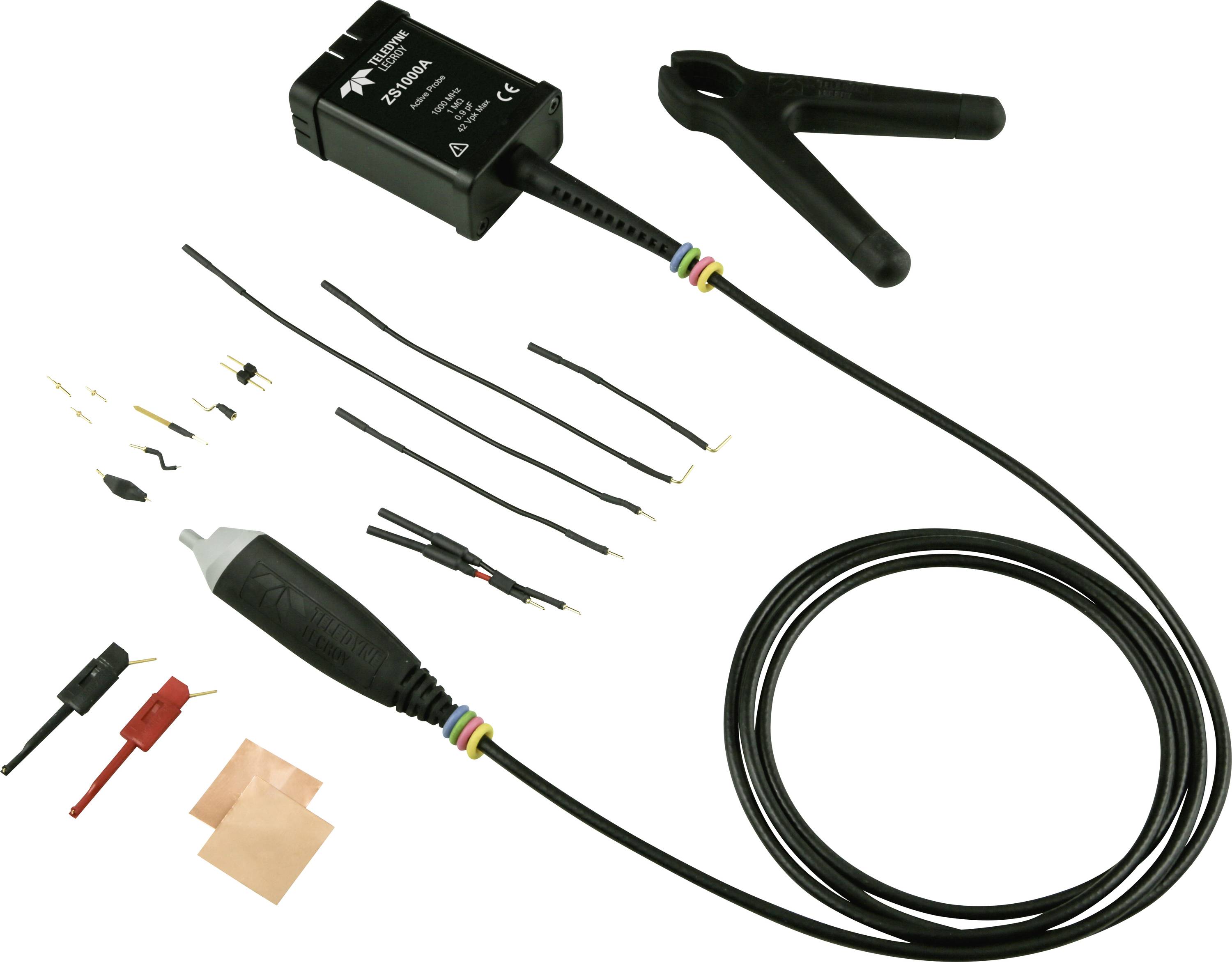

- Probe ZS1000A
- 2x fixed standard tip (PK-ZS-001)
- 1x spring contact tip / Pogo Tip (PK-ZS-017)
- 1x 2.54 mm square pin adapter (PK-ZS-018)
- 2x 2.54 mm PCB adapter (PK-ZS-024)
- 1x straight pin wire short / 7 cm (PK-ZS-022)
- 1x straight pin wire long / 13 cm (PK-ZS-023)
- 1x Y-cable adapter (PK-ZS-014)
- 1x angled cable short / 5 cm (PACC-LD003)
- 1x angled cable long / 10 cm (PACC-LD004)
- 1x offset ground / Z-lead (PK-ZS-016)
- 1x slim ground sheet (PK-ZS-021)
- 1x Ground sheet wide (PK-ZS-015)
- 2x copper adhesive tape (PK-ZS-009)
- 1 pair of micro grabber (red & black, PK-ZS-007R/B)
- 1x freehand probe holder/freehand probe holder (PK-ZS-019)
