Name: Teledyne LeCroy Oszilloskop-Tastkopf Probe 4 GHz 10:1 8 V
Brand: Teledyne LeCroy
SKU: 3864039
Availability: BackOrder

Highlights & Details

Teledyne LeCroy, 4 GHz, 0.6 pF, 1 MΩ high-resistance active oscilloscope probe

10:1
Bandwidth 4 GHz

Technical specifications

Output impedance: 50 Ω

Product type: Probe

Bandwidth: 4 GHz

Divider voltage ratio: 10:1

Slew rate: 112 ps

Nominal voltage: 8 V

Input capacity: 0,6 pF

Input resistance: 1000 kΩ

Type: ZS4000A

: Manufacturer's standards (no certificate)

Weight: 110 g

Cable length: 1.3 m

Calibration service: Factory standard

Compatible with (details): Teledyne LeCroy oscilloscopes with ProBus interface

Documents & Downloads

Datasheet

Datasheet 3864039 Teledyne LeCroy Oszilloskop-Tastkopf Probe 4 GHz 10:1 8 V

User & Safety Instructions

User & Safety Instructions 3864039 Teledyne LeCroy Oszilloskop-Tastkopf Probe 4 GHz 10:1 8 V

Description

Engineers often have to scan high frequency signals with high signal fidelity. Typical passive probe heads with high input R and C deliver good response at lower frequencies, but load the circuit too much at higher frequencies and distort the signal. Active voltage probes have a high input resistance (R) as well as a low input capacity (C) to reduce the switching load across the entire probe and oscilloscope bandwidth. Thanks to this low circuit load and a compact format, which allows measurements even in difficult to reach places, the active voltage probe becomes the daily standard tool for various signals and contact points.

This text is machine translated.

Features

The probes of the ZS-A series are high-resistance, low-capacity active probes that ensure a high signal reliability up to 4 GHz. A compact design and a large selection of accessories ensure that the probe of the ZS-A series is suitable for every demanding measurement task.

Scope of delivery

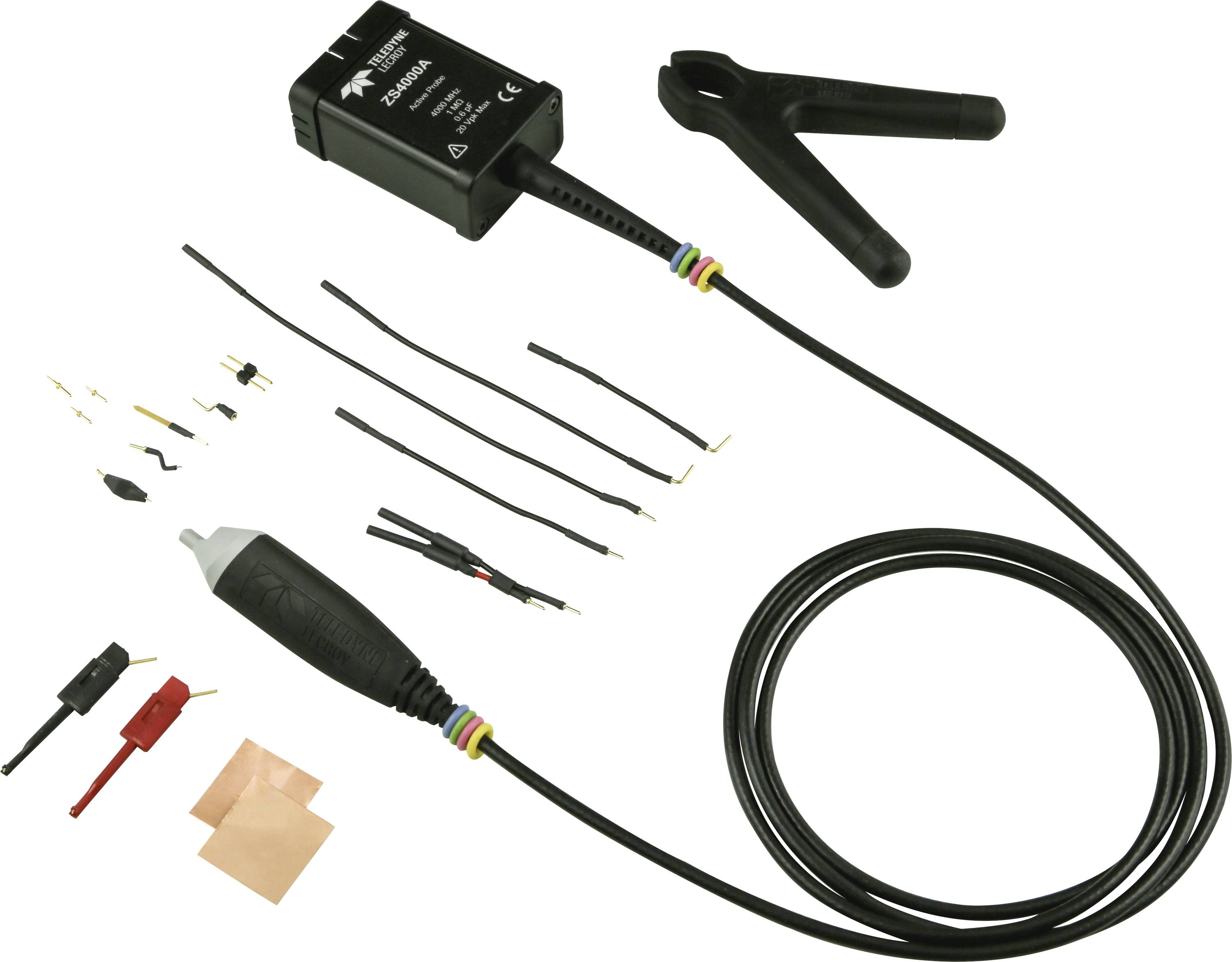

Probe ZS4000A
2x standard straight tip (PK-ZS-001)
1x Pogo tip (PK-ZS-017)
1x 2.54 mm square pin adapter (PK-ZS-018)
2x 2.54 mm PCB adapter (PK-ZS-024)
1x straight pin lead - short (PK-ZS-022)
1x straight pin lead - long (PK-ZS-023)
1x Y lead adapter (PK-ZS-014)
1x Right Angle Lead - Short (PACC-LD003)
1x Right Angle Lead - Long (PACC-LD004)
1x Offset Ground / Z Lead (PK-ZS-016)
1x Ground Blade - Narrow (PK-ZS-021)
1x Ground Blade - Wide (PK-ZS-015), 2x Copper Tape (PK-ZS-009)
1 pair of micro-grabber (PK-ZS-007R / PK-ZS-007B)
1x freehand probe holder (PK-ZS-019)
