Image similar

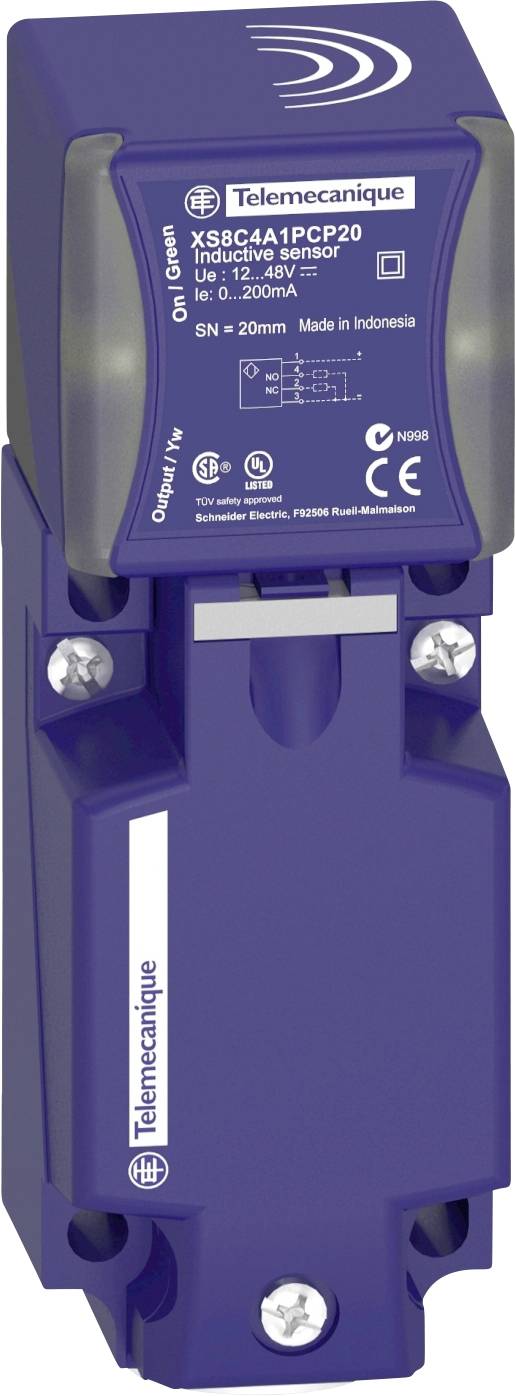

Telemecanique Proximity sensor Inductive XS8C4A4PCP20 XS8C4A4PCP20 non-shielded Digital, PNP (L x W x H) 40 x 117 x 40 m
Packaging type
Piece
Product type
Proximity sensor
Max. operating voltage
58 V DC
Contact type
1 maker
1 breaker
Switching distance (max.)
40 mm
EAN:
Part number:
Item no:
Technical specifications
- Wiring technology: 4-wire
- Cable entry number: 1 cable entry for M20 x 1.5 cable gland
- Operating zone 0…32 mm
- Power consumption: 0-15mA no load
- Material: plastic
- Front material: PBT
- Packaging type
Piece
- Product type
Proximity sensor
- Type
XS8C4A4PCP20
- Min. operating voltage
10 V DC
- Max. operating voltage
58 V DC
- Operating voltage
10 - 58 V DC
- Contact type
1 maker
1 breaker
- Switching distance (max.)
40 mm
- Outputs
Digital
PNP
- Enclosure material
PBT
- Model
Inductive
- Installation type
non-shielded
- Connector
Screw terminals
- Features
LED indicator
Incl. enclosure
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP65
IP67
IP69
- Length
40 mm
- Width
117 mm
- Height
40 mm
- Dim
(L x W x H) 40 x 117 x 40 mm
- Content
1 pc(s)
- Nominal voltage
12 V DC
48 V DC
- Switching frequency
200 Hz
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2373714 Telemecanique Proximity sensor Inductive XS8C4A4PCP20 XS8C4A4PCP20 non-shielded Digital, PNP (L x W x H) 40 x 117 x 40 m
