Name: Televes AZ 415 F Cable TV splitter 5 - 1218 MHz
Brand: Televes
SKU: 3550205

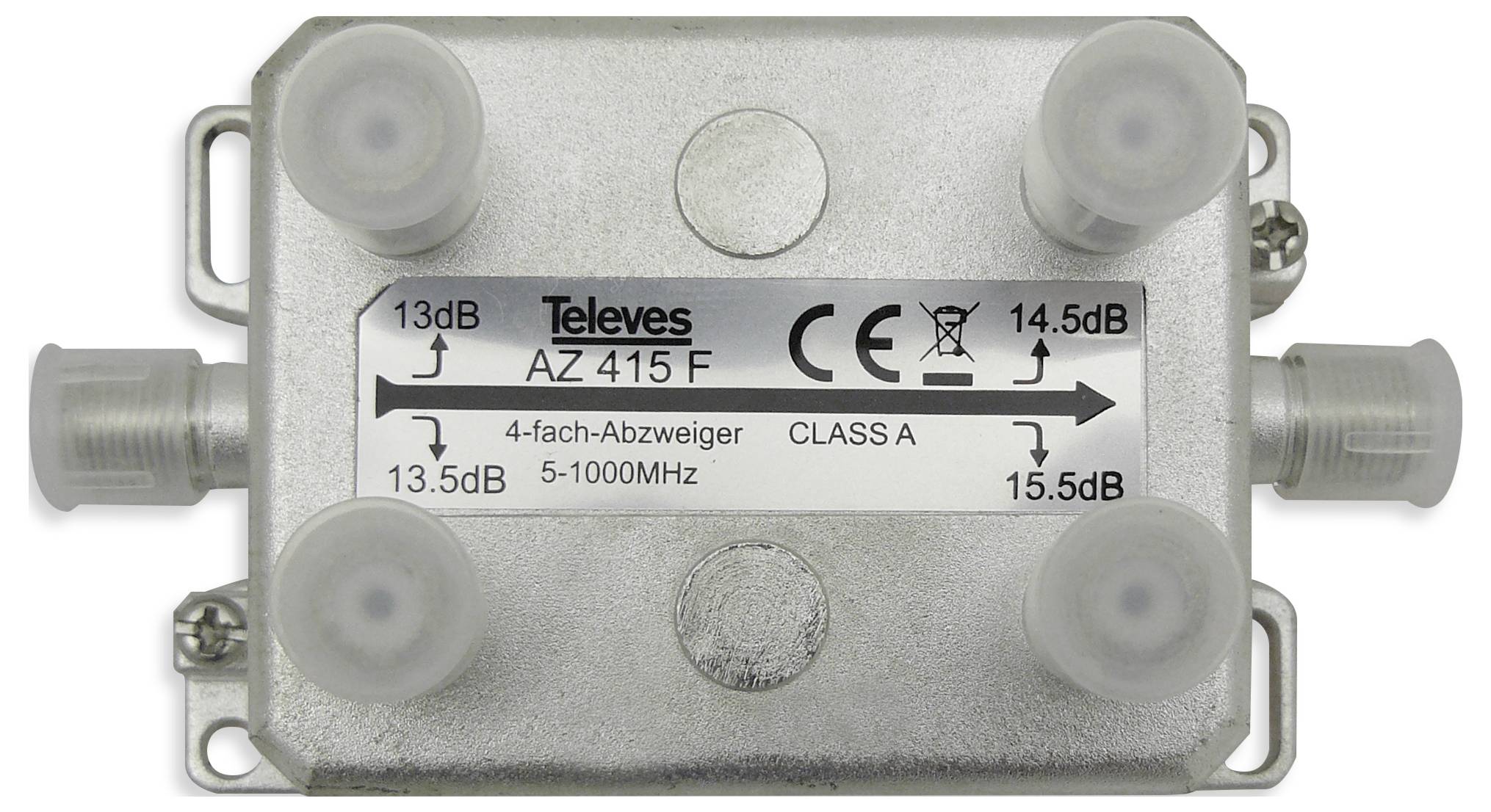

'Televes AZ 415 F' 4-way splitter with a range of 5-1000MHz and Class A certification, showing decibel ratings for each port.

Image similar

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Design: Tap
F connector type
Frequency 5..1218 MHz
Number of outputs: 5
Remote feed: No.
Max. Branch-/distribution damping 15.5 dB
Max. Transmission loss 3.5 dB
Number of branches: 4

Product type: Cable TV splitter

Participants: 5

Frequency range: 5 - 1218 MHz

Cable attenuation: 15.5 dB

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3550205 Televes AZ 415 F Cable TV splitter 5 - 1218 MHz

Description

BK - Terr. Tap 5 - 1000 MHz die-cast housing F - connections AZ 1 .. F + AZ 2 .. F with wall distance holder hum-isolated by separating capacitors

This text is machine translated.

Description

BK - Terr. Tap 5 - 1000 MHz die-cast housing F - connections AZ 1 .. F + AZ 2 .. F with wall distance holder hum-isolated by separating capacitors

This text is machine translated.
