Testboy Niederohmprüfgerät Continuity tester Calibrated to (ISO standards) CAT III 300 V Acoustic
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Circuit and continuity test with selectable test current of 2 mA or 200 mAWith acoustic passage signalOptical resistance display of 0-20 OhmOptical voltage display of 0-300 V AC/DC, contactless > 110 V ACProtection against external voltage up to 300V (with 2mA test current)Integrated LED flashlight.CAT III 300 VAccessories: Test lead set EN 61010 - 1:2010, EN 61557-1/-4
- Product type
Continuity tester
- Reading type
Continuity
- Display
Acoustic
- V AC reading range
0 up to 300 V
- V DC reading range
0 up to 300 V
- Load switching
200 mA
- Reading category
CAT III 300 V
ISO standards
- Dim
(L x W x H) 123 x 64 x 29 mm
- V AC reading range (max.)
300 V
- V AC reading range (min.)
0 V
- Voltage DC reading range (max.)
300 V
- Voltage reading range DC (min.)
0 V
- Width
64 mm
- Height
29 mm
- Length
123 mm
- Type
Niederohmprüfgerät
Documents & Downloads
Datasheet
Datasheet 2742650 Testboy Niederohmprüfgerät Continuity tester Calibrated to (ISO standards) CAT III 300 V Acoustic
User & Safety Instructions
User & Safety Instructions 2742650 Testboy Niederohmprüfgerät Continuity tester Calibrated to (ISO standards) CAT III 300 V Acoustic
Description

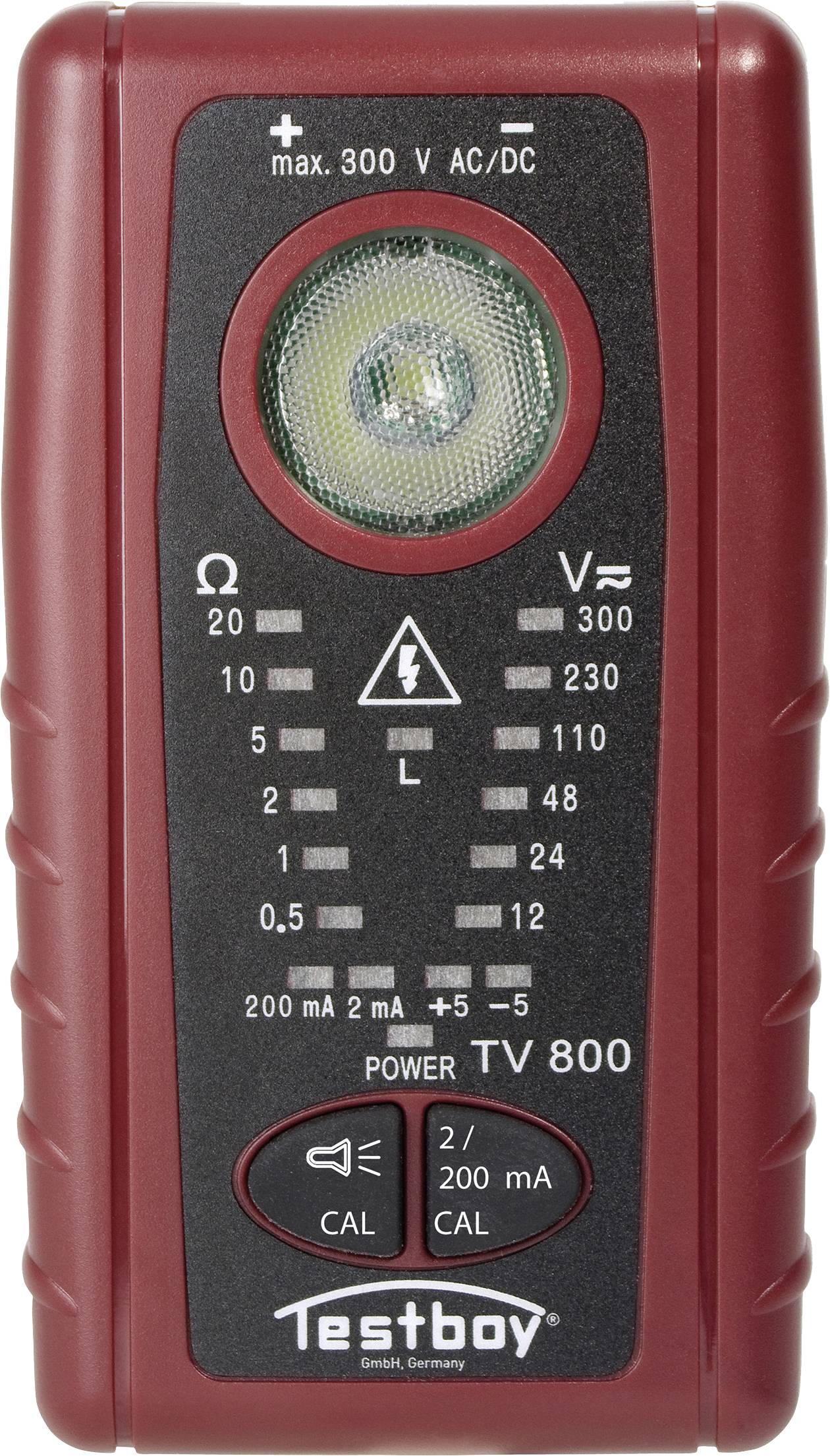

The Testboy TV 800 is a device for testing the resistance of a line or connection by using a test current of 2 mA or selectable 200 mA, according to EN 61557-4. A voltage test up to 300 V AC/DC is also integrated, as well as the calibration of the measuring lines. The integrated LED serves as a torch or optical signal during continuity testing. The non-contact voltage sensor on the back of the device is used to safely locate interruptions in cables.
This text is machine translated.
This text is machine translated.
Features
- Unbreakable and impact-resistant ABS casing
- Selectable test current during the continuity test
- Visual and audible indications
Scope of delivery
- batteries not included
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
