Testboy TB 113 Voltage tester CAT III 1000 V Visual, Acoustic
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Testboy TB 113 Non-contact voltage tester 12–1000 V AC with visual and audible indicators
- Contact-free voltage testing from 12 V to 1000 V AC
- Visual and acoustic signaling (LED display and buzzer) with voltage supplied
- Quickly detect cable breaks, defective switches and light chains
- Built-in LED flashlight
- Highest safety after measuring category CAT III 1000 V
Technical specifications
- Standards: IEC/EN 61010-1 (DIN VDE 0411)
- Housing material: Impact-resistant and break-proof ABS-plastic housing
- Product type
Voltage tester
- Reading type
Voltage testing
- Display
Visual
Acoustic
- V AC reading range
12 up to 1000 V
- Reading category
CAT III 1000 V
IP40
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 160 x 25 x 25 mm
- Weight
45
- Max. frequency
50 Hz
- Min. frequency
50 Hz
- Frequency range
50 Hz - 50 Hz
- Calibration service
Factory standard
- V AC reading range (max.)
1000 V
- V AC reading range (min.)
12 V
- Width
25 mm
- Height
25 mm
- Length
160 mm
- Type
TB 113
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3857151 Testboy TB 113 Voltage tester CAT III 1000 V Visual, Acoustic
User & Safety Instructions
User & Safety Instructions 3857151 Testboy TB 113 Voltage tester CAT III 1000 V Visual, Acoustic
Description

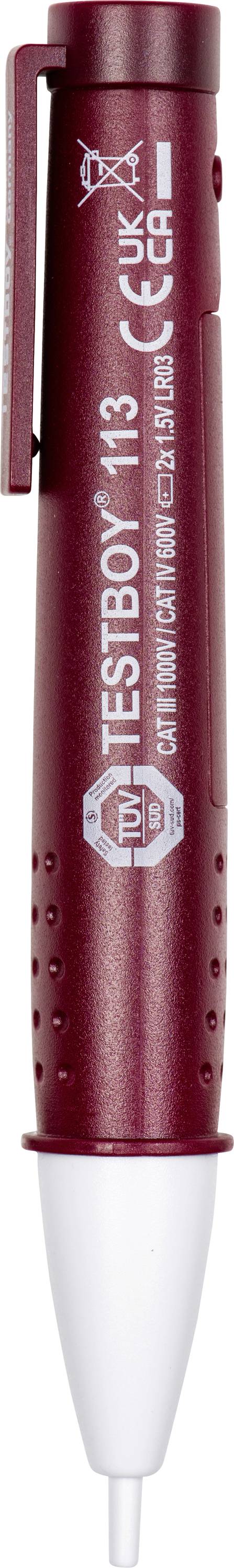

The Testboy TB 113 is a contact-less voltage tester, which detects AC voltages from 12 V quickly and reliably - without any current flow is required. Thanks to capacitive measurement methods, the invisible cable breaks, defective switches, sockets or low-voltage light systems can be located millimeter-accurate. Detected voltages are indicated both optically and by an acoustic signal. The built-in LED torch makes working in dark measuring environments easier.
This text is machine translated.
This text is machine translated.
Features
- Capacitive, contact-free testing methods
- Visual and audible indications
- Built-in LED flashlight
- Robust, impact-resistant ABS-plastic casing
- Attachment clip/pocket clip
Scope of delivery
- Testboy TB 113 voltage tester
- 2 x 1.5 V AAA micro batteries
- User manual
