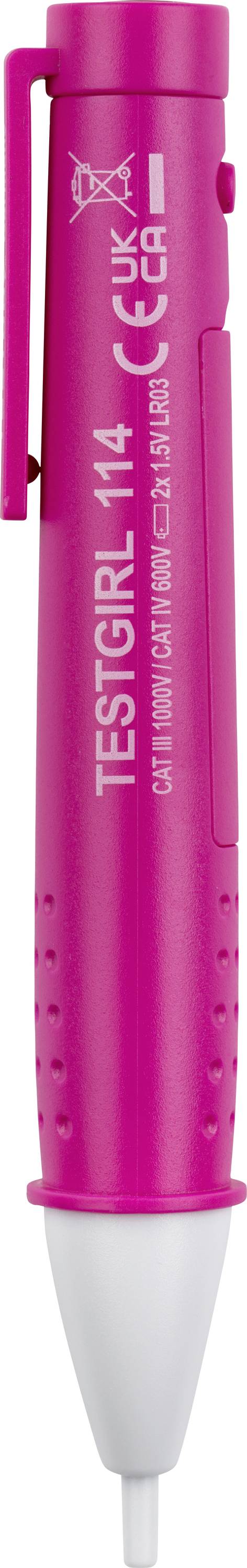

Testboy Testgirl 114 Voltage tester CAT III 1000 V, CAT IV 600 V Visual
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Testboy test girl 114 contact-less voltage tester starting from 12 V AC
- Contact-free voltage testing from 12 V to 1000 V AC
- Visual and vibrating display by supplied voltage
- Capacitive testing methods to precisely locate cable breaks
- Built-in high-power LED torch
Technical specifications
- Power supply 2 x 1.5 V AAA LR03 AAA
- Standards: IEC/EN 61010-1 (DIN VDE 0411)
- Light duration LED-torch: Up to 60 hours
- Product type
Voltage tester
- Reading type
Voltage testing
- Display
Visual
- V AC reading range
12 up to 1000 V
- Reading category
CAT III 1000 V
CAT IV 600 V
IP40
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 145 x 25 x 20 mm
- Weight
21 g
- Max. frequency
50 Hz
- Min. frequency
50 Hz
- Frequency range
50 Hz - 50 Hz
- Calibration service
Factory standard
- V AC reading range (max.)
1000 V
- V AC reading range (min.)
12 V
- Width
25 mm
- Height
20 mm
- Length
145 mm
- Type
Testgirl 114
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3857150 Testboy Testgirl 114 Voltage tester CAT III 1000 V, CAT IV 600 V Visual
User & Safety Instructions
User & Safety Instructions 3857150 Testboy Testgirl 114 Voltage tester CAT III 1000 V, CAT IV 600 V Visual
Description
As a special edition of the known voltage testers, the contact-less voltage tester Testboy 114 detects conducting conductors from 12 V AC already, among others also at low-voltage systems. Invisible cable breaks in extension cables or on a defective lamp in a chain of lights are detected accurately within a few seconds thanks to the capacitive measurement method. Besides, the built-in LED torch enables safe working in dark conditions.
This text is machine translated.
This text is machine translated.
Features
- Non-contact, capacitive testing method
- Visual (LED) and vibrating signaling
- Integrated LED torch with high light duration
- Convenient pocket clip
- Robust housing according to IEC/EN 61010-1 (DIN VDE 0411)
Scope of delivery
- Test girl 114 contact-less voltage tester
- 2 x 1.5 V AAA batteries
