Testboy TV 285 Inspection camera Probe diameter 8 mm 3 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Testboy TV 285 Mobile Endoscope camera, Art. No. 62903000
Technical specifications
- Video resolution: 1280 x 720 Pixel (720p) Field of view (FOV): 76°
- Power supply 1 x built-in Li-Ion rechargeable batteries (3.7 V, 4000 mAh)
- Operating time: Up to 4 hours
- Built-in 32 GB MicroSD card
- Data format: JPG (images), AVI (videos)
- Probe length
3 m
- Product type
Inspection camera
- Probe diameter
8 mm
- Light source
Integrated LED lighting with adjustable brightness levels
- Camera resolution
1920 x 1080 Pixel
- Min. focusing distance
2 cm
- Dim
(Ø x L) 35 mm x 175 mm
- Weight
330 g
- Focus
Main camera: 3–9 cm / Side camera: 2–6 cm
- Width
115 mm
- Length
175 mm
- (Ø)
35 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3857145 Testboy TV 285 Inspection camera Probe diameter 8 mm 3 m
User & Safety Instructions
User & Safety Instructions 3857145 Testboy TV 285 Inspection camera Probe diameter 8 mm 3 m
Description

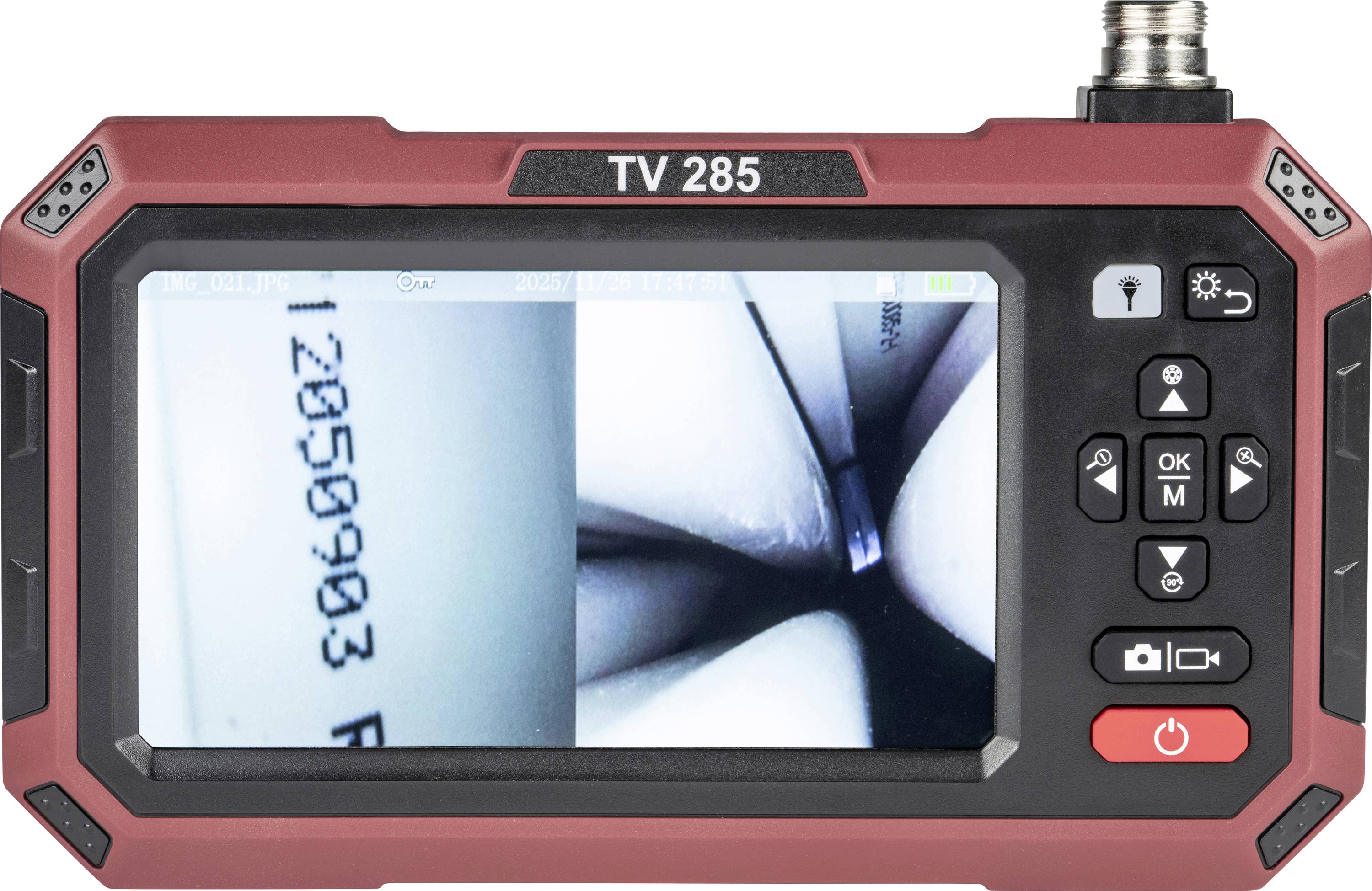

The Testboy TV 285 endoscope camera is a further development of the popular Testboy TV 280. Equipped with a 5.0" color LC display and a 3 meter long double head camera, it allows you to easily investigate difficult to access places even in poor light conditions. The adjustable LED brightness, integrated 32-GB memory and comprehensive tool set enable accurate inspections and documentation on-site.
This text is machine translated.
This text is machine translated.
Features
- Dual camera (main and side camera)
- Adjustable LED lighting
- Integrated 32 GB MicroSD memory for images and videos
- Automatic power off (APO: 5, 10, 15, 20 min or off)
Scope of delivery
- Testboy TV 285 endoscope camera
- Bag
- Charging cable
- Hooks
- Holding magnet
- Mirror tip
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
