Testboy TV 298 IR camera -20 up to 550 °C 256 x 192 Pixel 25 Hz USB-C
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 236.81 / piece)
€ 236.81
incl. VAT
14-day return policy included
Highlights & Details
TV 298 infrared camera
- 25 Hz Thermal imaging camera
- Temperature reading range -20 up to 550 °C
- 256 x 192 Pixel Bolometer matrix
- Thermal sensitivity 0.05 °C
Technical specifications
- Storage format: JPG (incl. embedded thermal data)
- Battery life: Approx. 4 to 6 hours continuous operation
- Spectral range: 8 µm to 14 µm
- Operating temperature: -10 °C to +50 °C
- Type
TV 298
- Product type
IR camera
- Bolometer array
256 x 192 Pixel
- Interfaces
USB C®
- Temperature reading range (max.)
550 °C
- Colour schemes
6
- Temperature reading range (min.)
-20 °C
- Optics
56° x 42°
- Frame rate
25 Hz
- Display resolution
320 x 240 Pixel
IP54
- Thermal sensitivity
0.05 °C
- Dim
(L x W x H) 85 x 75 x 230 mm
- Memory units
1
- Temperature resolution
0,1 °C
- Digital zoom
4 x
- Display
320 X 240 p
- Emission level (max.)
1
- Emission level (min.)
0.01
- Geometric resolution (IFOV)
3.75 mrad
- Weight
380 g
- Basic accuracy
2 %
- Accuracy ± °C
2 °C
- Calibration service
Factory calibration
- Temperature reading range
-20 up to 550 °C
- Min. focusing distance
0.3 m
- Width
75 mm
- Height
230 mm
- Length
85 mm
- Connection
USB
- Power supply (details)
Integrated Li-ion battery (3.7 V, rechargeable via USB)
- Features
USB-C
Manufacturer's standards (no certificate)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3857146 Testboy TV 298 IR camera -20 up to 550 °C 256 x 192 Pixel 25 Hz USB-C
User & Safety Instructions
User & Safety Instructions 3857146 Testboy TV 298 IR camera -20 up to 550 °C 256 x 192 Pixel 25 Hz USB-C
Description

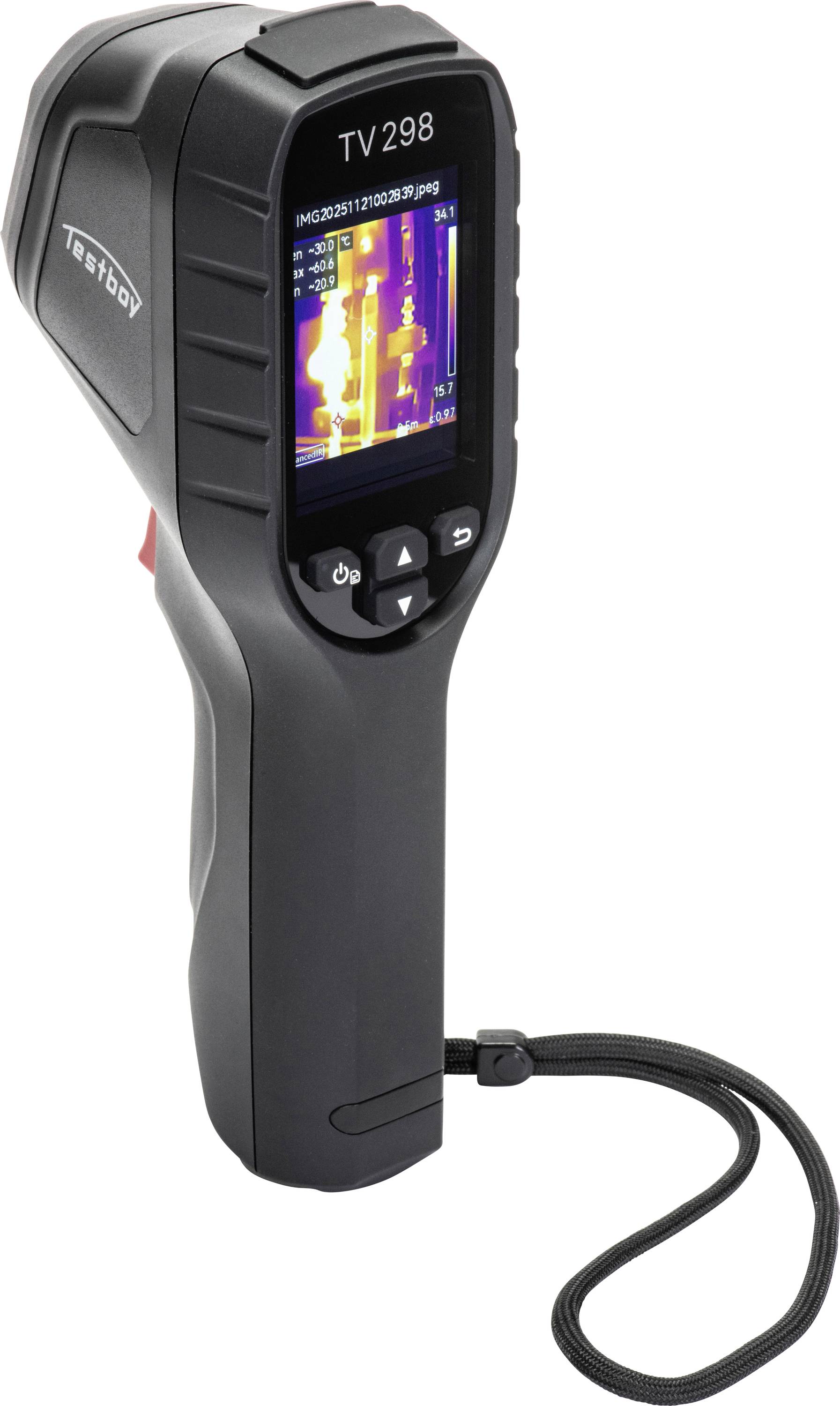

The hand-held infrared camera Testboy® TV 298 with an IR-resolution of 96 x 96 pixels is the perfect tool for detecting and correcting errors quickly. This compact thermal imager is equipped with a wide temperature range of -20 °C to 550 °C and a 2.4" color LCD display. The integrated 2 GB memory with USB-C interface transfers the saved data to your computer in no time.
This text is machine translated.
This text is machine translated.
Features
- Colour LC display for clear representation of infrared images
- Multiple color palettes selectable (for example, rainbow, iron, gray scale)
- Picture-in-picture function (fusion of thermal picture and real picture)
- Adjustable emission level for exact measurements on different surfaces
- Automatic hot and cold Spot marking
- Built-in memory for image recording and measurement data
Scope of delivery
- Testboy TV 298 infrared camera
- Robust transport / standby case
- USB charging and data cable
- Li-Ion rechargeable battery pack
- User manual
