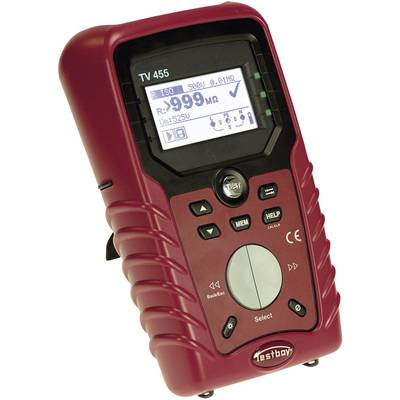

Testboy TV 455 Equipment tester VDE standard 0701-0702
EAN:
Part number:
Item no:
Number
Total (€ 1,478.15 / piece)
€
Highlights & Details
Installation Tester Testboy TV 455
- Testing and inspection of electrical installations according to VDE 0100-600
- Graphic Display
- Clear Good/poor LED-display
Technical specifications
- Product type
Equipment tester
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
CAT IV 300 V
- Interfaces
USB
RS232
- Dim
(W x H x D) 140 x 80 x 230 mm
- Weight
1 kg
- Reading range (VDE)
Earth leakage resistance
Insulation resistance
Continuity testing
Voltage
Frequency
- DIN standard
DIN EN 62638
- Display type
Digital (LCD)
- Reading range
- Width
140 mm
- Height
80 mm
- Test procedure
manual
- Voltage supply
Battery
- Memory (space)
1700
- Memory
Yes
- Type
TV 455
- VDE standard
0701-0702
- Depth
230 mm
- Memory
1700 results
- Display (details)
Dot matrix display
- Interfaces
RS 232 · USB
- Reading category
600 V/CAT III, 300 V/CAT IV
- Standards
EN 61326 · EN 61010-1 · EN61010-031 · EN61010-2-032 · EN 61557; · EN 61008 · EN 61009 · EN 60364-4-41 · BS 7671 · AS/NZ 3760
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 127962 Testboy TV 455 Equipment tester VDE standard 0701-0702
User & Safety Instructions 127962 Testboy TV 455 Equipment tester VDE standard 0701-0702
Description
The VDE-tester TV 455 is a professional, multi-functional, portable test instrument for the implementation of all measurements for the comprehensive inspection of electrical installations in buildings. The following measurements and tests can be performed:
Voltage and frequency
- Continuity tests
Testing of the insulation resistance
- Residual current testing
The Fault loops/RCD Trigger blocking impedance measurement
Line impedance/voltage drop
-Phase Sequence
In addition, the earthing resistance test.
The graphical display with background lighting offers an easy reading of the results, instructions, measurement parameters and messages. Two good/poor LED-displays are arranged on the sides of the LCD display.
This text is machine translated.
Voltage and frequency
- Continuity tests
Testing of the insulation resistance
- Residual current testing
The Fault loops/RCD Trigger blocking impedance measurement
Line impedance/voltage drop
-Phase Sequence
In addition, the earthing resistance test.
The graphical display with background lighting offers an easy reading of the results, instructions, measurement parameters and messages. Two good/poor LED-displays are arranged on the sides of the LCD display.
This text is machine translated.
Features
- Good/poor LED-displays
- Testing of all-current sensitive RCD's (type B)
- Earthing Resistance Test
- Graphic display with background lighting
- Easy to operate
- Check and review of low-voltage systems
- Inspections of electrical installations
- Wide range of accessories.
- Memory size 1700 Results
- Protective insulation.
Scope of delivery
- Quick guide · Product test data · Test cable for Schuko sockets · Universal test cable · 3 test probes · 3 alligator clips · NiMH rechargeable battery pack · Power adapter · Carry bag · CD with PC Software PC SW TV 450 · Carrying strap · RS232/PS2 cable.
- This text is machine translated.
