Name: testo 400 - Universal-Klimamessgerät Environmental testing set Temperature, Pressure -40, 0 - 150, 200 °C, hPa
Brand: testo
SKU: 3389782
Availability: SoldOut

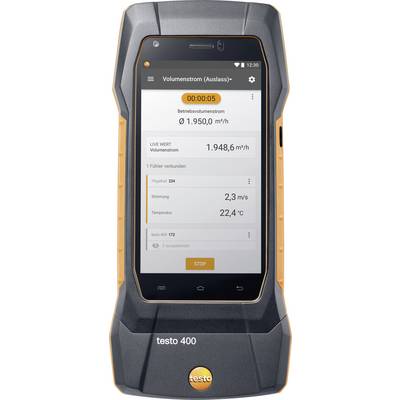

An electronic measuring device with a display shows 'Volume Flow Rate (Outlet)' and real-time measurement values such as 1,948.6 m³/h and 22.4 °C.

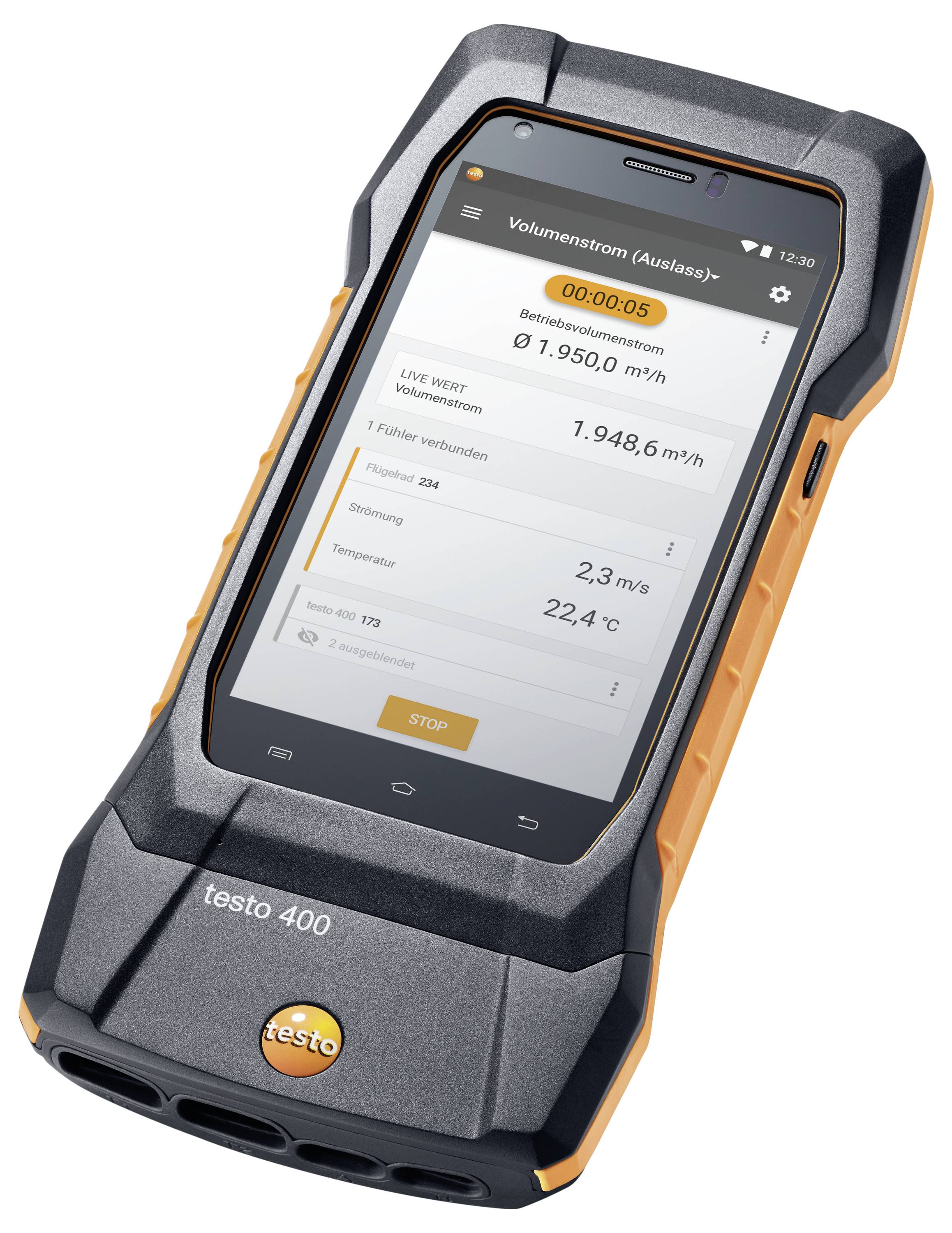

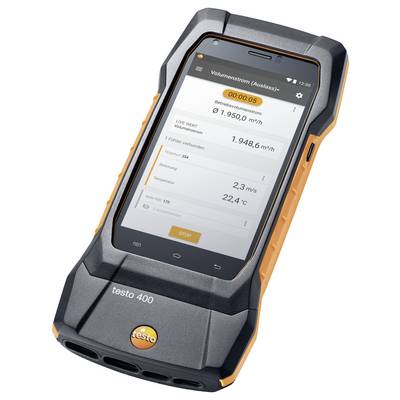

A digital measuring device with a touchscreen displays air flow measurements: Volume flow 1,950.0 m³/h, Humidity 23%, Temperature 22.4°C.

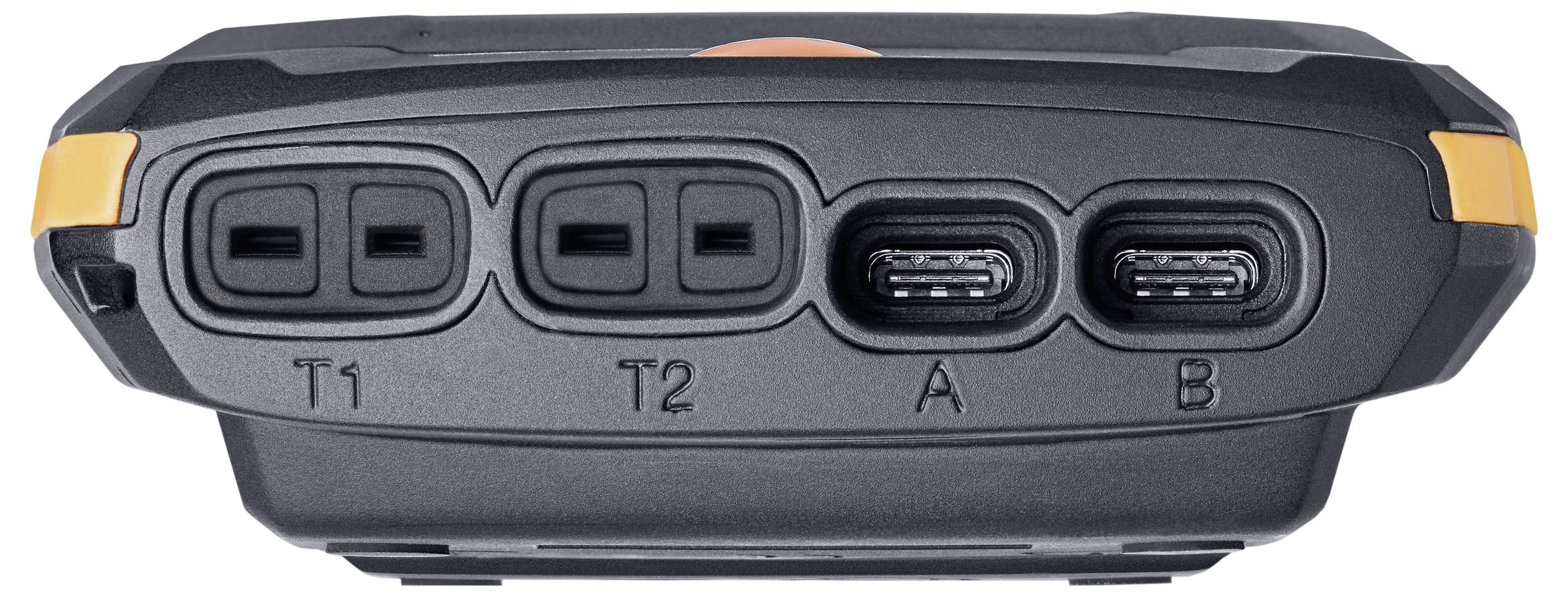

Device shows four ports: two square ports on the left labelled 'T1', 'T2' and two rectangular USB ports labelled 'A', 'B'.

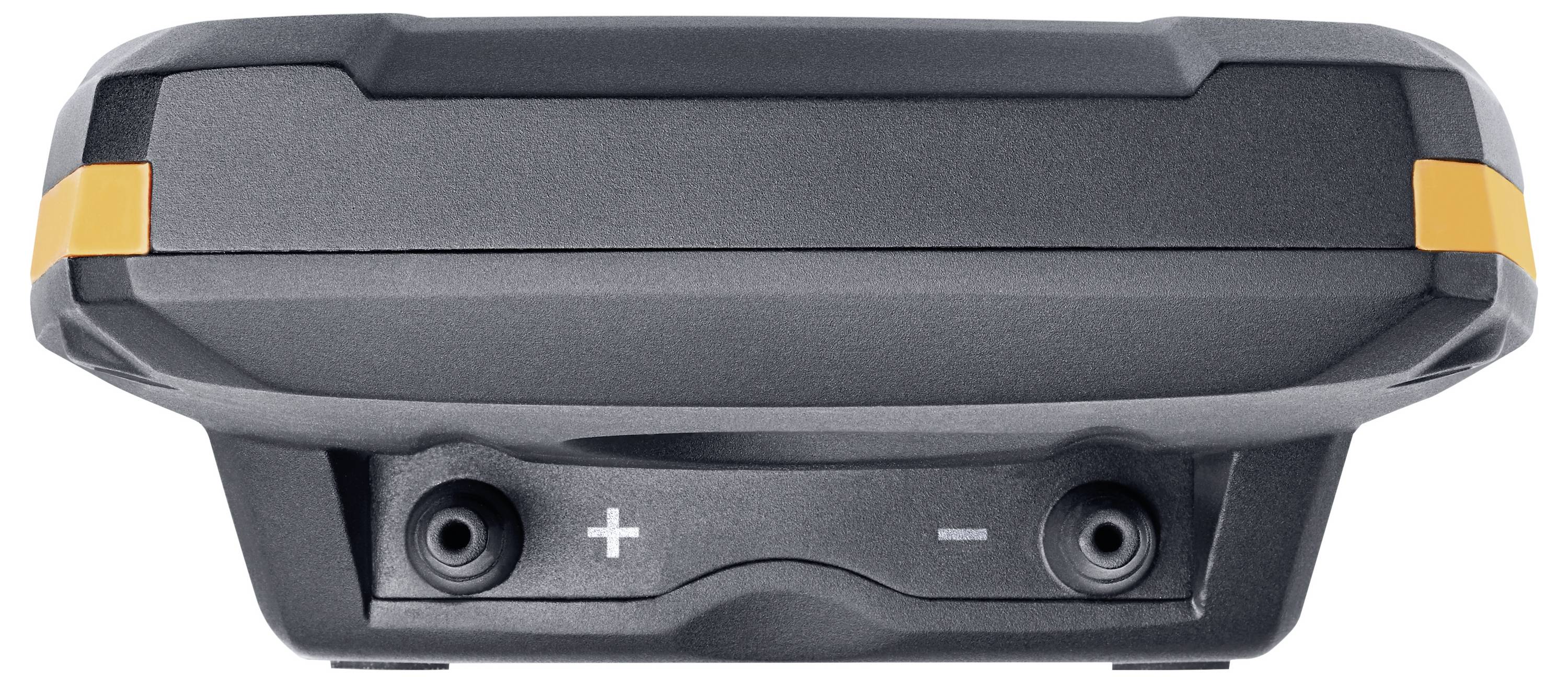

Portable electronic device, front view. Two ports are visible. The casing is grey with an orange accent.

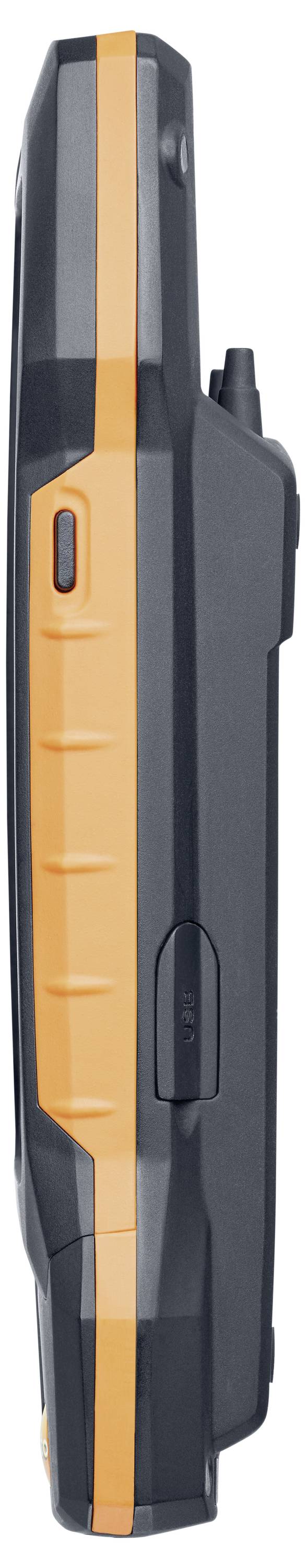

Digital device in side view, black and orange casing, several buttons visible, potentially a portable measuring instrument.

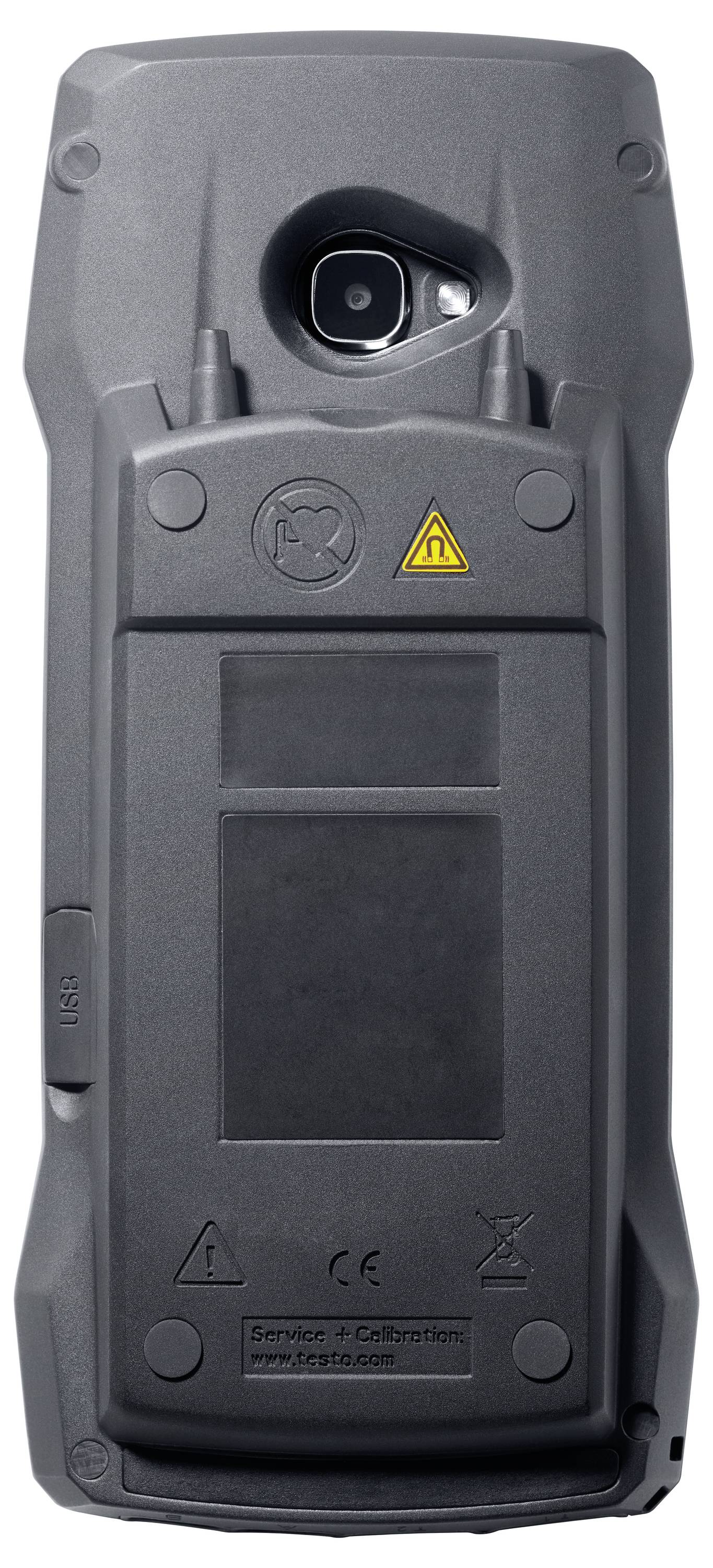

Back of a robust electronic device with a camera, several symbols, and warning notices. Device likely serves industrial purposes.

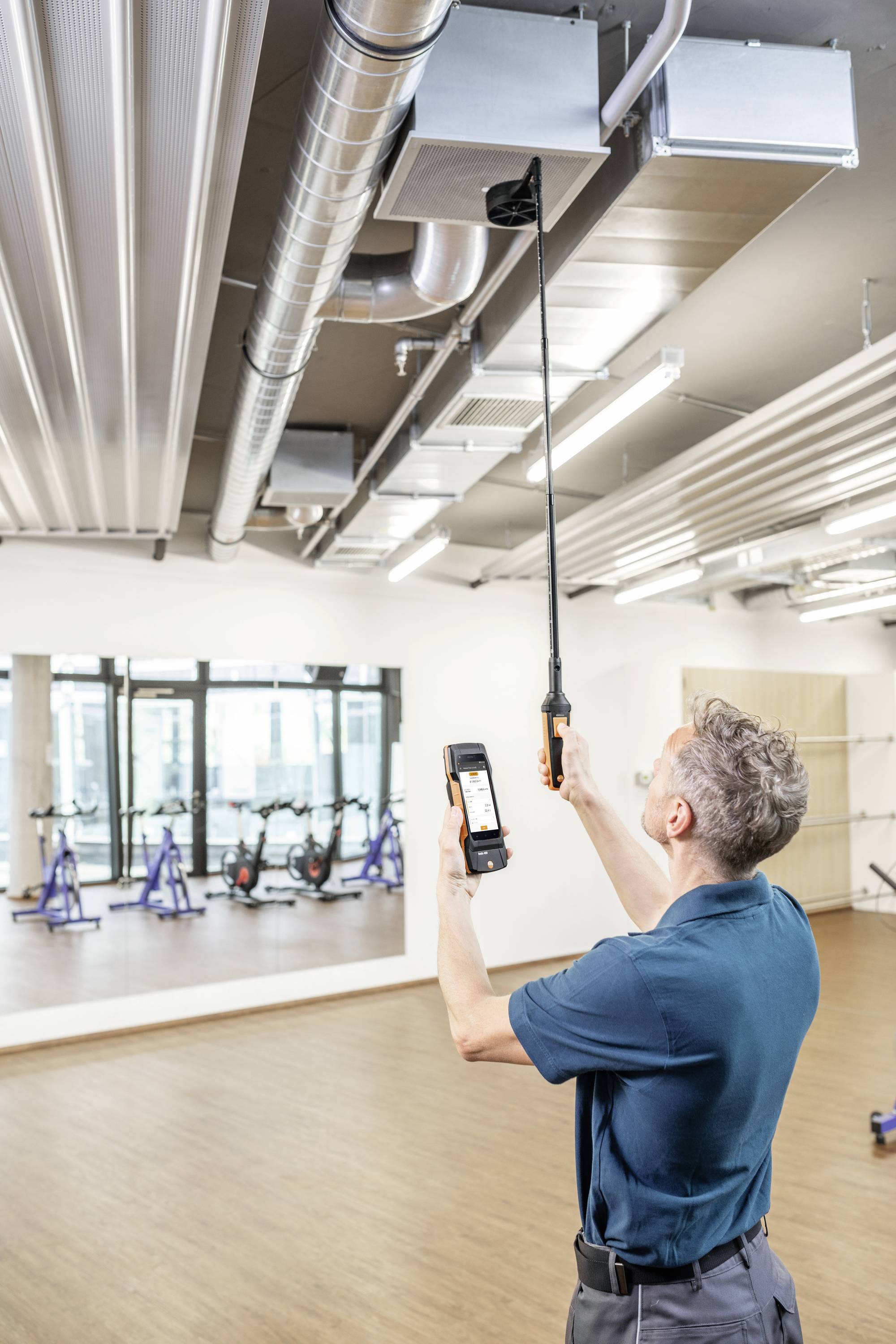

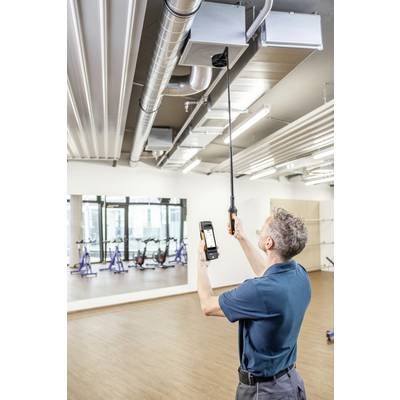

A man is checking the ventilation system with a specialist measuring device in a room with a wooden floor and stationary bicycles.

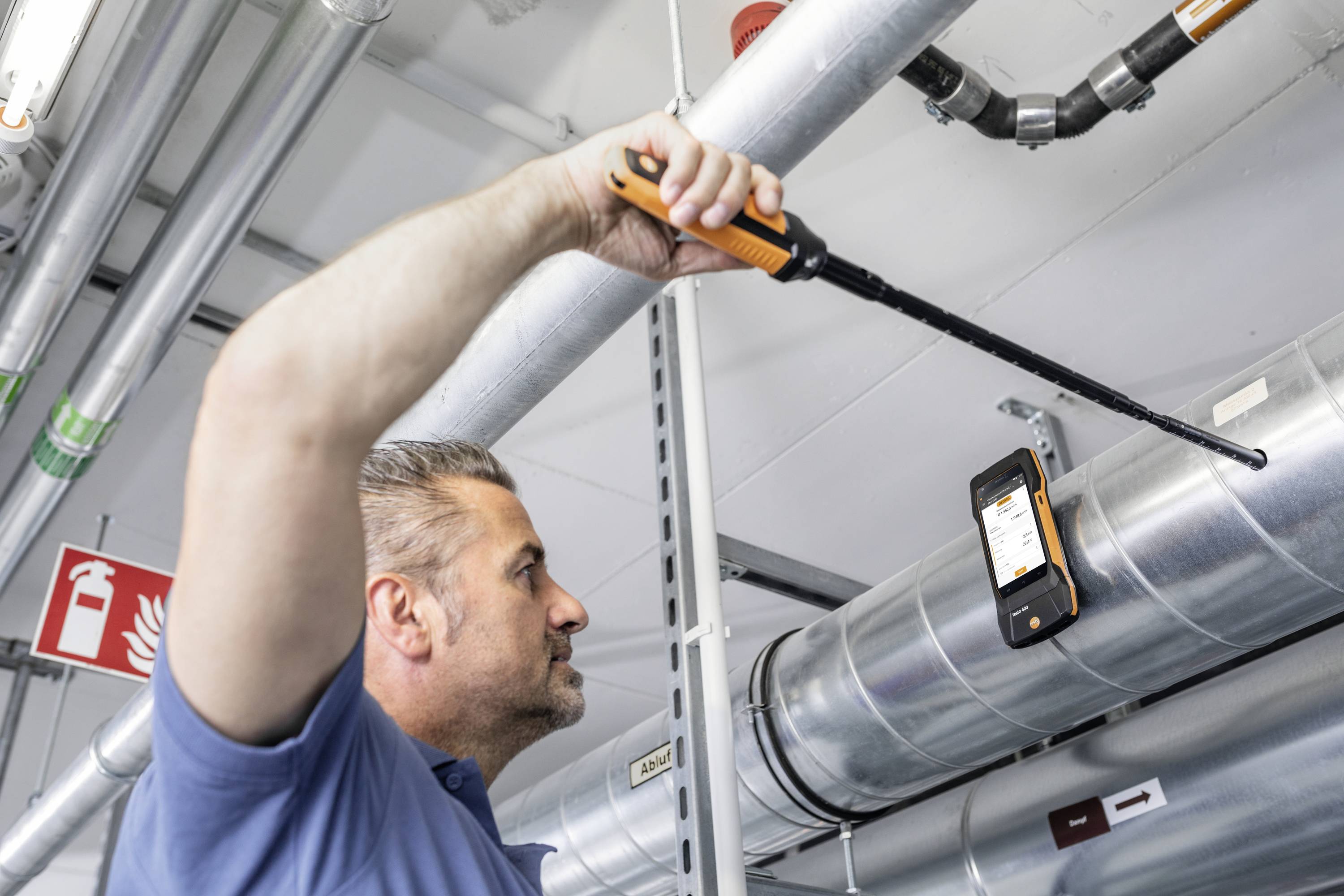

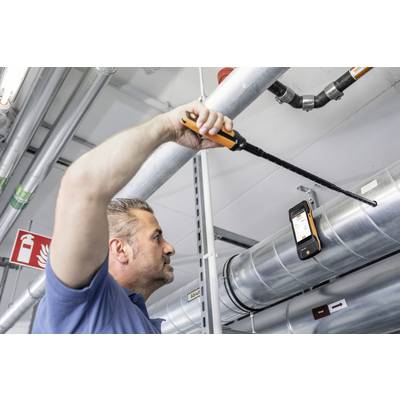

A man is inspecting a ventilation system with a long measuring device. A digital display shows results. The environment is industrial.

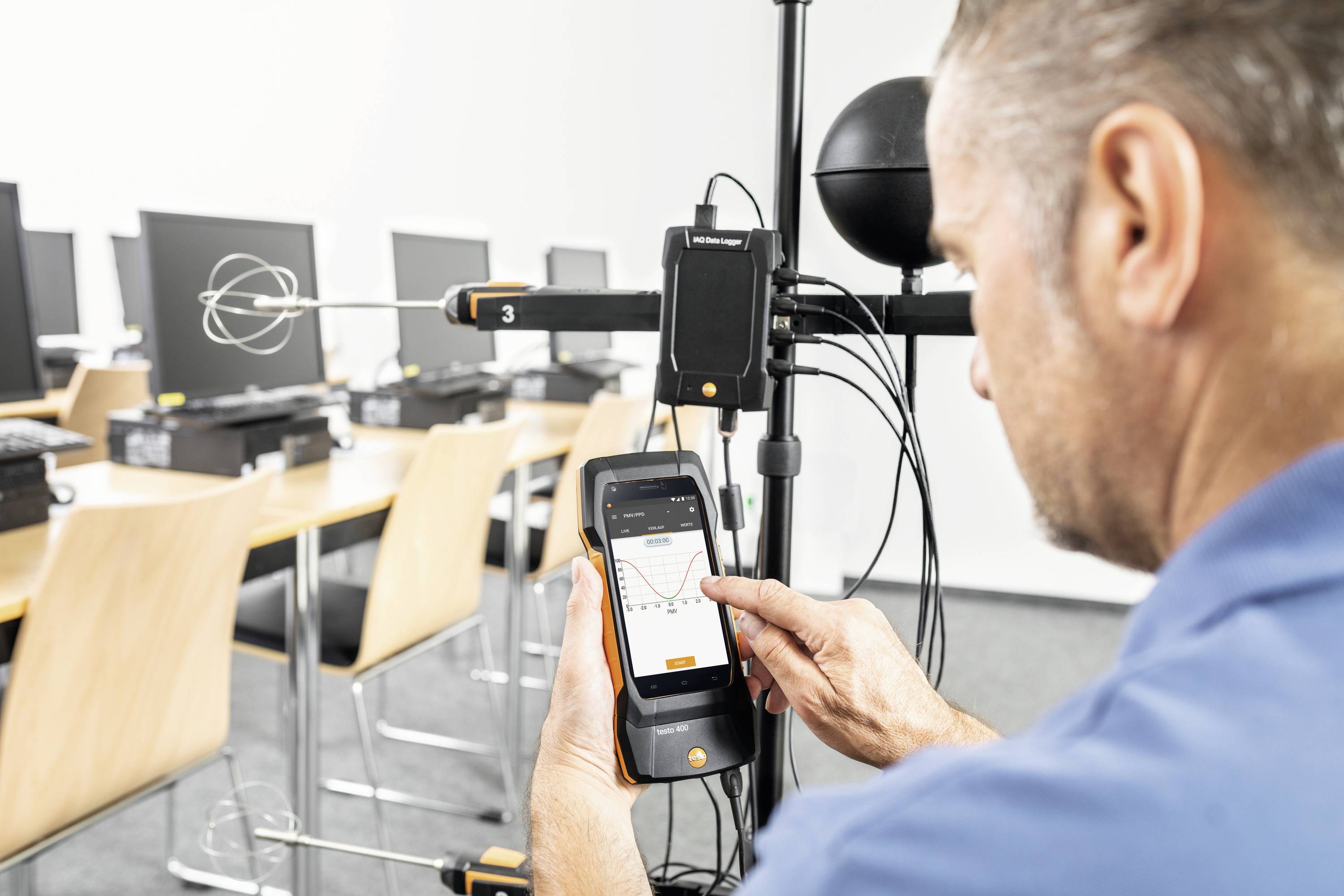

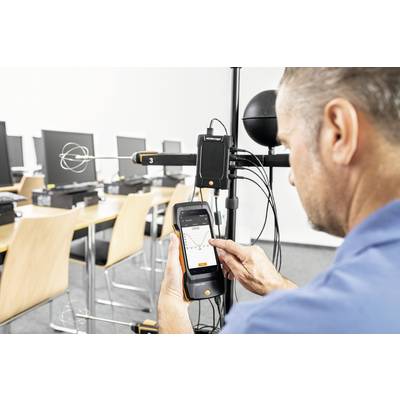

A man is using a measuring device in a room with computers. He is examining data on a mobile device, with technology at the forefront.

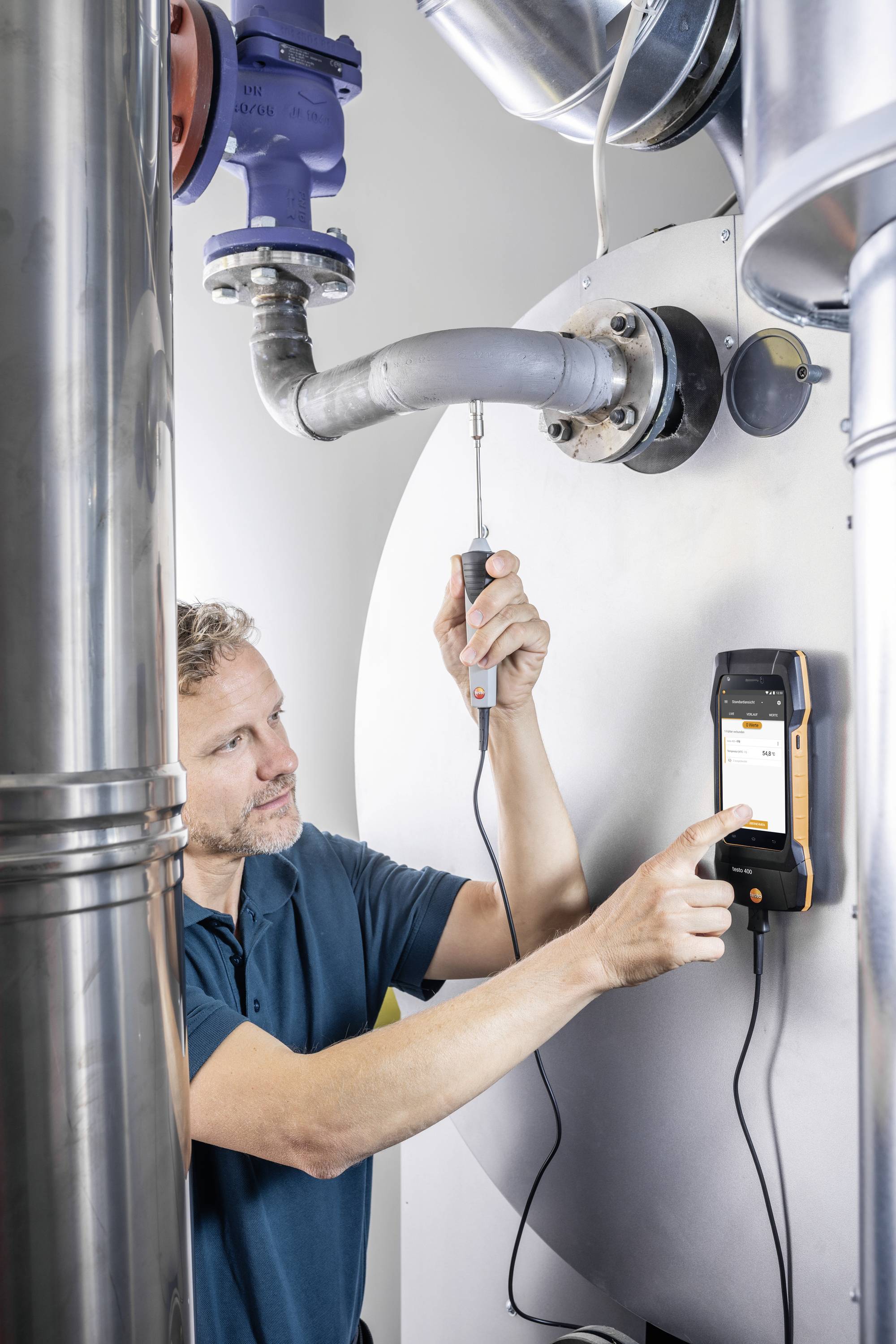

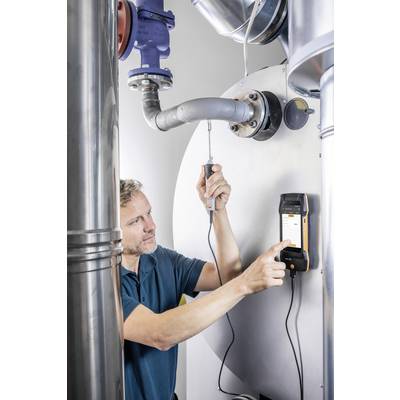

A man is using a measuring device to check heating pipes in a boiler room. He is holding a sensor against the pipe.

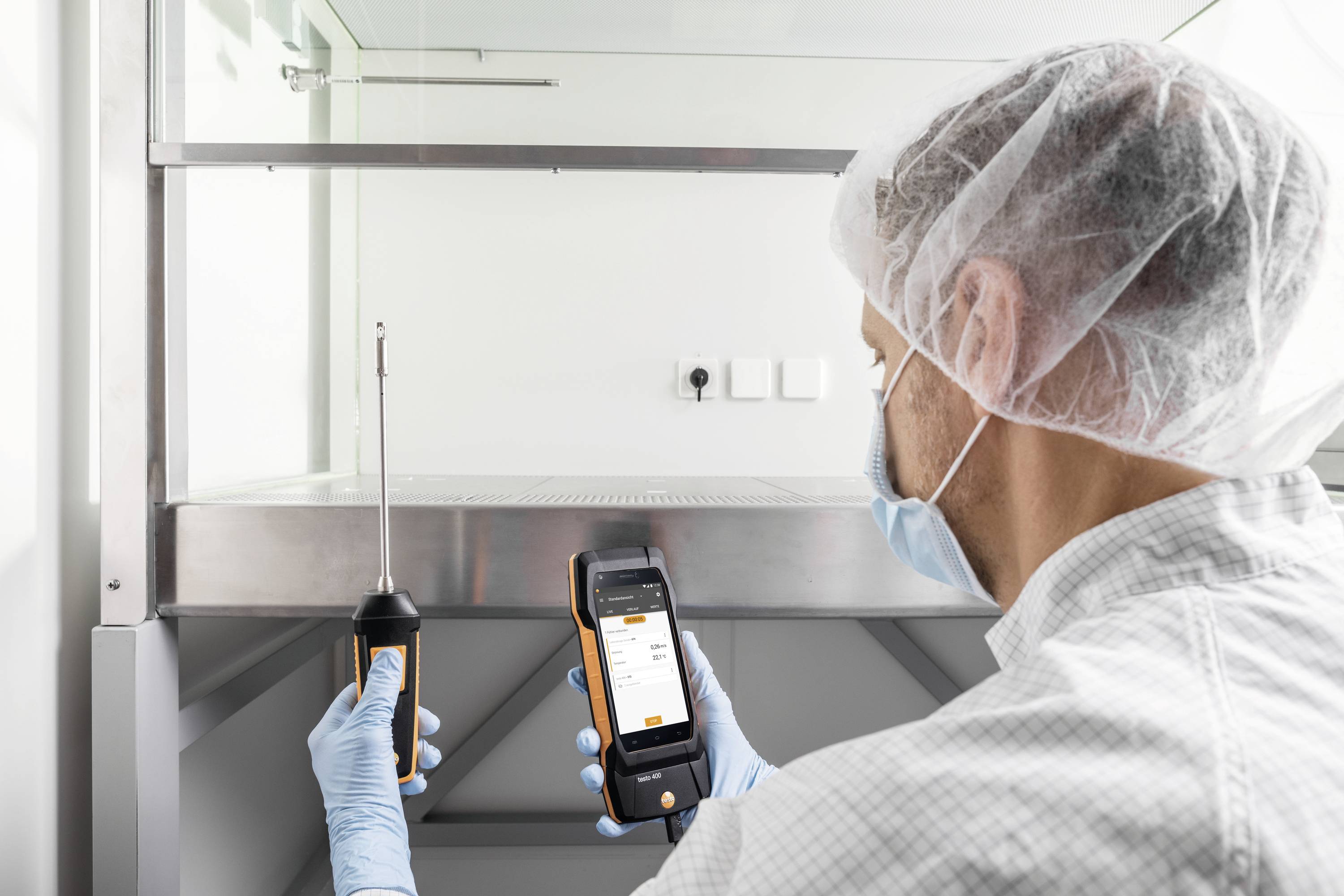

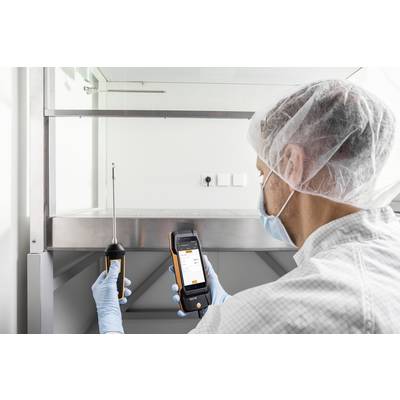

A technician is measuring air quality in a laboratory using a mobile device. He is wearing protective clothing and a hair net.

1/11

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,675.00 / piece)

€ 1,675.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

testo 400 - Univer-sal-air conditioner

A measuring device for all climate-relevant parameters
Smart e, intuitive measurement program including RLT network measurement according to EN ISO 12599 and ASHRAE 111, PMV/PPD as well as turbulence level according to EN ISO 7730 and ASHRAE 55
Highly accurate, position-independent and integrated differential pressure sensor

Technical specifications

Camera image size: Main camera: 8.0 MP; front camera: 5.0 MP
Battery/battery life: Approx. 10 h continuous operation
Display type: 5.0" touch display, HD 1280*720 pixels, IPS (160k)
Power supply: Rechargeable Li-ion battery (5550 mAh)
INTERFACES: BLUETOOTH®; USB; WLAN
2 GB memory; 1,000,000 readings
Storage temperature -20 to +60 °C

Power supply (details): Accumulator

Product type: Environmental testing set

Reading range: -40, 0 - 150, 200 °C, hPa

Unit of measurement: Temperature
Pressure

Operating voltage: 5 V

Reading range - air pressure: 0 - 200 hPa

: Manufacturer's standards (no certificate)

Print resolution: 0.001 hPa

Accuracy: ±0.5 % from MW. ±1 Digit (remaining measurement range)
±0.4 °C ±1 digit (-40 to -25.1 °C)
±0.4 °C ±1 digit (+75 to +99.9 °C)
±0.2 °C ±1 digit (-25 to +74.9 °C)
±(0.1 hPa + 1.5 % from MW.) ±1 digit (25.001 to 200 hPa)
±(0.3 Pa + 1 % from MW.) ±1 digit (0 to 25 hPa)

: IP40

Dim: (L x W x H) 39 x 210 x 95 mm

Weight: 510 g

Accuracy: 0.4 %

Reading range (max.): 150 °C
200 hPa

Reading range (min.): -40 °C
0 hPa

Width: 210 mm

Height: 95 mm

Length: 39 mm

Documents & Downloads

Datasheet

Datasheet 3389782 testo 400 - Universal-Klimamessgerät Environmental testing set Temperature, Pressure -40, 0 - 150, 200 °C, hPa

User & Safety Instructions

User & Safety Instructions 3389782 testo 400 - Universal-Klimamessgerät Environmental testing set Temperature, Pressure -40, 0 - 150, 200 °C, hPa

Description

The testo 400 is the universal measuring device for all climate professionals. Measure, analyze and document all climate, ventilation and comfort parameters with just one device – simple, comfortable and standardized. High-quality measuring technique, intuitive measuring assistant, versatile documentation options and a comprehensive selection of climate probes make the testo 400 the perfect partner for your daily work.

This text is machine translated.

Features

Can be expanded with a large probe portfolio
Analysis software for the creation of professional reports and measurement data management
Digital probes avoid additional uncertainty for the measuring device
Convincing climate measurement technology
Highly accurate, position-independent, integrated differential pressure sensor
Integrated absolute pressure sensor
Measures all climate-relevant parameters: Flow, temperature, humidity, pressure, illumination strength, Radiant heat, turbulence, CO2 and CO
Numerous connection options for probes: 2 x cable probes (TUC), 4 x Bluetooth® probes, 2 x type K thermocouple probes
Compatible with a wide range of Bluetooth® and cable probes to order – so you are equipped for every measurement task
For high-precision measurements and reduced downtime: Adjustment function at up to six measuring points for zero fault indication, replacement of probe heads without restarting the air conditioner, high-quality probes with intelligent ept calibration concision (calibration of the probes independent of the measuring device)
Long-term monitoring of the air quality of the room air: Order the IAQ data logger for long-term measurements with the air conditioning measuring device testo 400. During IAQ measurement with the stand alone data logger, you can use the air conditioning device elsewhere for measurements
Smart, intuitive, practical: Measurement programs, measurement data management and operation
For error-free measurements according to standard: Smart e, intuitive to use measurement menus and evaluation of the measured values according to the traffic light principle optimally supports with your measurement task. Use the measurement programs for measurements in accordance with standards: RLT network measurement according to EN ISO 12599, PMV/PPD according to EN ISO 7730, draft air and turbulence degree according to EN ISO 7730, WBGT measurement in accordance with DIN 33403 and EN ISO 7243, NET measurement according to DIN 33403
Complete measurement and complete documentation including photos, comments and own logo directly with the customer and send via email (via WLAN)
Customer and measuring point management directly in the measuring instrument - efficient on-site work
Smart-touch display for intuitive operation of the air conditioner
PC software testo DataControl for further analysis, archiving and documentation of measurement data on your computer
Integrated WLAN and Bluetooth® interfaces: Send measuring protocols directly on site.

Scope of delivery

1 x Univer-Sal-climate meter testo 400
Inclusive of transport case for volume flow measurement
Connection hose
Power supply with USB cable
Calibration record
User manual.
