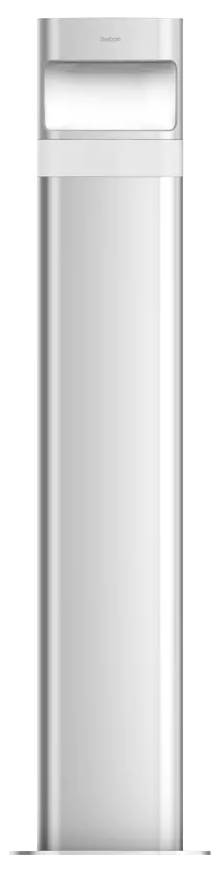

Theben 1020906 theLeda D B plus AL Path lighting LED (monochrome)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Path lighting
- Bulb type
LED (monochrome)
- Rating per bulb
8.5 W
- PIR detection angle (horizontal)
180°
- Coverage max. (width)
12 m
- Light features
Incl. motion detector
- Protection class
IP55
- Material
Aluminium
n.rel.
- Light bulb included
Yes
- Width
174 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3357851 Theben 1020906 theLeda D B plus AL Path lighting LED (monochrome)
User & Safety Instructions
User & Safety Instructions 3357851 Theben 1020906 theLeda D B plus AL Path lighting LED (monochrome)
Description
Design-oriented LED bollard light long with 8.5 W, light output front (Spot), with motion detector (PIR), high-quality casing made of anodized aluminum string press profile, automatic illumination control depending upon presence and brightness, angle of coverage 180° at 12 m diameter, optimized for ways, functions teach-in, test, twilight switch, Dimmable orientation light and self-calculated night stop adjustable via remote control theSenda S and P, via theSenda B and the APP theSenda plug or via potentiometer on the device, high degree of protection IP 55 for installation in outdoor areas, networking via radio, setting possible only via theSenda B with theSenda plug, Extremely efficient thanks to high light output, long-life LEDs: 50,000 hours life, manual control via interruption switch (duration ONE 6 h)
