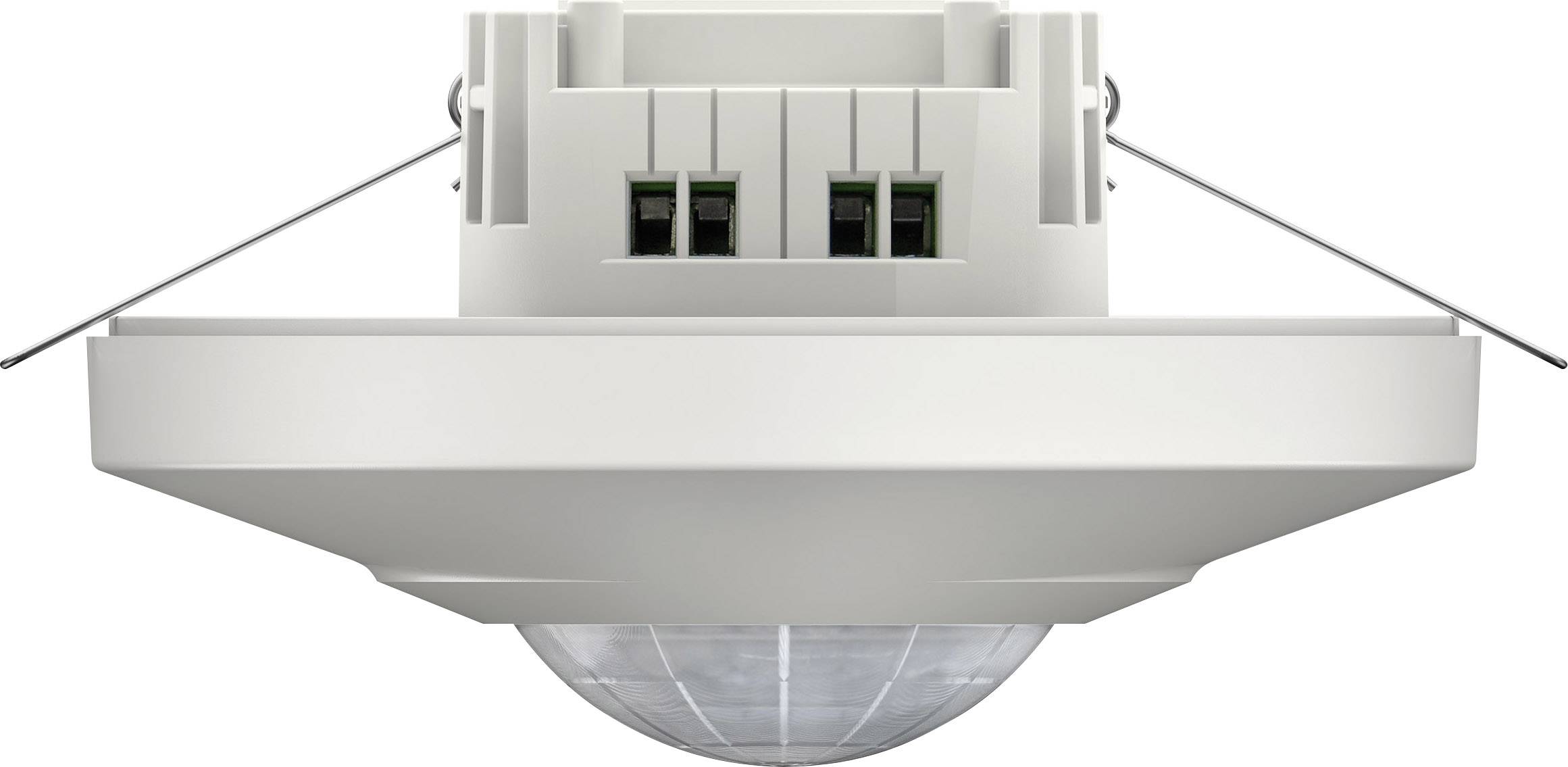

Theben 1030045 Flush mount Motion detector 360 ° White IP40
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Material: thermoplastic
- Connection type: screw terminal
- Material: plastic
- Max. Switch-on current: 10 A
- Product type
Motion detector
- Detection angle
360°
6 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V AC
- Switching capacity
2000 W
- Twilight settings
10 - 2000 lx
- Factory colour
White
IP40
- Operating temperature
-20 °C - +45 °C
- Length
112 mm
- Width
112 mm
- Height
73 mm
- Dim
(L x W x H) 112 x 112 x 73 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2156482 Theben 1030045 Flush mount Motion detector 360 ° White IP40
User & Safety Instructions
User & Safety Instructions 2156482 Theben 1030045 Flush mount Motion detector 360 ° White IP40
Description
Motion detector for ceiling mounting with acoustic function, detection area round, automatic brightness-dependent control for lighting, mixed light measurement, brightness values and switch-off delay adjustable
