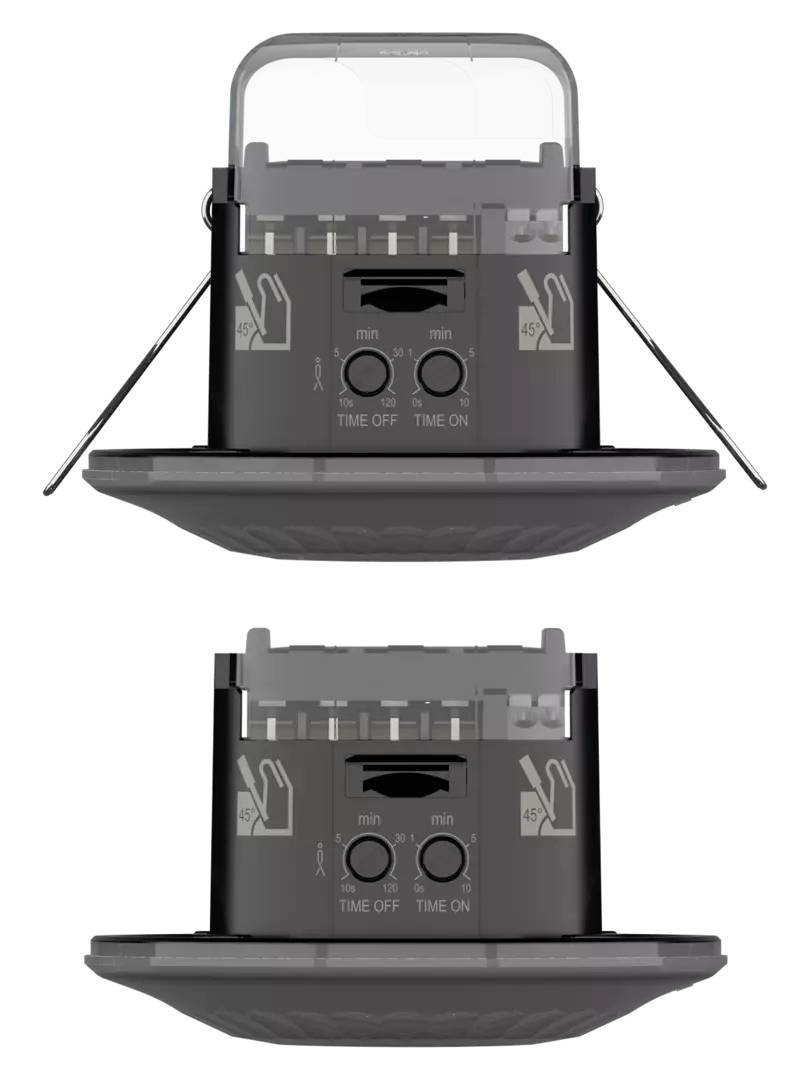

Theben 1030153 Flush mount Occupancy sensor IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Horizontal coverage angle 0-360°
- Colour: Anthracite
- Connection type: Plug-in terminal
- Halogen-free: True
- Surface protection: Untreated
- Nom. voltage: 230/230 V
- Product type
Occupancy sensor
- Mounting type
Flush mount
- Similar RAL
7016
IP54
- Type
Occupancy Sensors
- Width
80 mm
- Height
62 mm
- Dim
(W x H x D) 80 x 62 x 80 mm
- Depth
80 mm
- Material
Plastic
- Recess depth
50 mm
- Recess diameter
60 mm
- Temp.
25-55 °C
- Sensor type
Passive Infrared
Flush mounted (plaster)
Anthracite
80 mm
Presence detector
TRUE
62 mm
80 mm
Push-in clamp
Untreated
FALSE
AC
15 s
50 mm
50-50 Hz
FALSE
80 mm
FALSE
60 mm
TRUE
TRUE
FALSE
Thermoplastic
6 m
6 m
2300 W
-25-55 °C
500 A
Plastic
TRUE
FALSE
5-1000 lx
TRUE
12 m
TRUE
TRUE
FALSE
TRUE
7016
TRUE
TRUE
TRUE
FALSE
360°
IK04
FALSE
230-230 V
IP54
FALSE
FALSE
FALSE
Matt
0-360°
15 s
30 min
TRUE
3 m
FALSE
FALSE
FALSE
0.01 A
61 mm
50 m²
FALSE
FALSE
FALSE
400 W
FALSE
FALSE
Passive infrared
TRUE
FALSE
Documents & Downloads
Datasheet
Datasheet 3819646 Theben 1030153 Flush mount Occupancy sensor IP54
User & Safety Instructions
User & Safety Instructions 3819646 Theben 1030153 Flush mount Occupancy sensor IP54
Information
Information 3819646 Theben 1030153 Flush mount Occupancy sensor IP54
Description
Passive infrared presence detector for ceiling mounting in-wall or ceiling installation, round coverage 360°, diameter 12 m, (113 square meters) at a mounting height of 3 m (cross-going), diameter 1 m, (20 square meters) at a mounting height of 3 m (seated), 5 channel light (relay 230 V) and 1 channel presence (relay potential-free for HVAC control), Due to protection class IP 54, it can also be used in damp rooms and outdoors (detection range outdoors: 8 meter diameter), remotely controlled, parallel connection possible with other LUXA 103 or theMura slave, switching capacity optimized for LED up to 400 W, semi or fully automatic operation, integrated key input, with pulse function, teach-in function, test function and stair light function, Area can be restricted with cover clips, casing color anthracite
