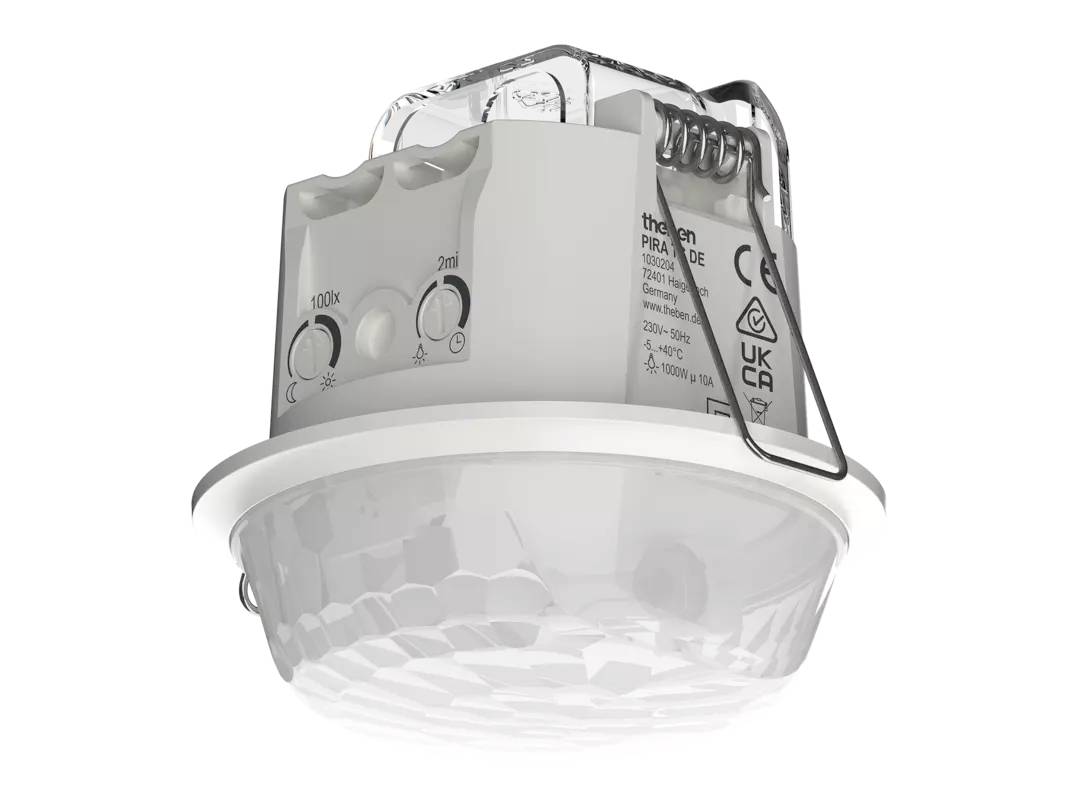

Theben 1030204 PIR motion detector IP21
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Horizontal coverage angle 0-360°
- Colour: white
- Type of connection: Screw terminal
- Halogen-free FALSE
- Mounting type: Other
- Surface protection: Untreated
- Nom. voltage: 230/230 V
- Product type
PIR motion detector
- Similar RAL
9010
IP21
- Type
Motion detector
- Width
80 mm
- Height
78 mm
- Dim
(W x H x D) 80 x 78 x 80 mm
- Depth
80 mm
- Material
Plastic
- Recess depth
51 mm
- Recess diameter
60 mm
- Temp.
-5-40 °C
- Sensor type
Passive Infrared
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3819753 Theben 1030204 PIR motion detector IP21
User & Safety Instructions
User & Safety Instructions 3819753 Theben 1030204 PIR motion detector IP21
Information
Information 3819753 Theben 1030204 PIR motion detector IP21
Description
Corridor detector (PIR) for the DE-ceiling mounting in the interior, rectangular coverage area 360°, 25 x 3M (75 m2) at 2, 5 m mounting height, 1 channel light (relay 230 V), automatic motion and brightness-dependent control for lighting, mixing light measurement, operation as fully automatic, brightness switching value adjustable by potentiometer, follow-up time adjustable by potentiometer, immediately operational factory default (brightness switching value 100 Lux, delay time 2 min.)
