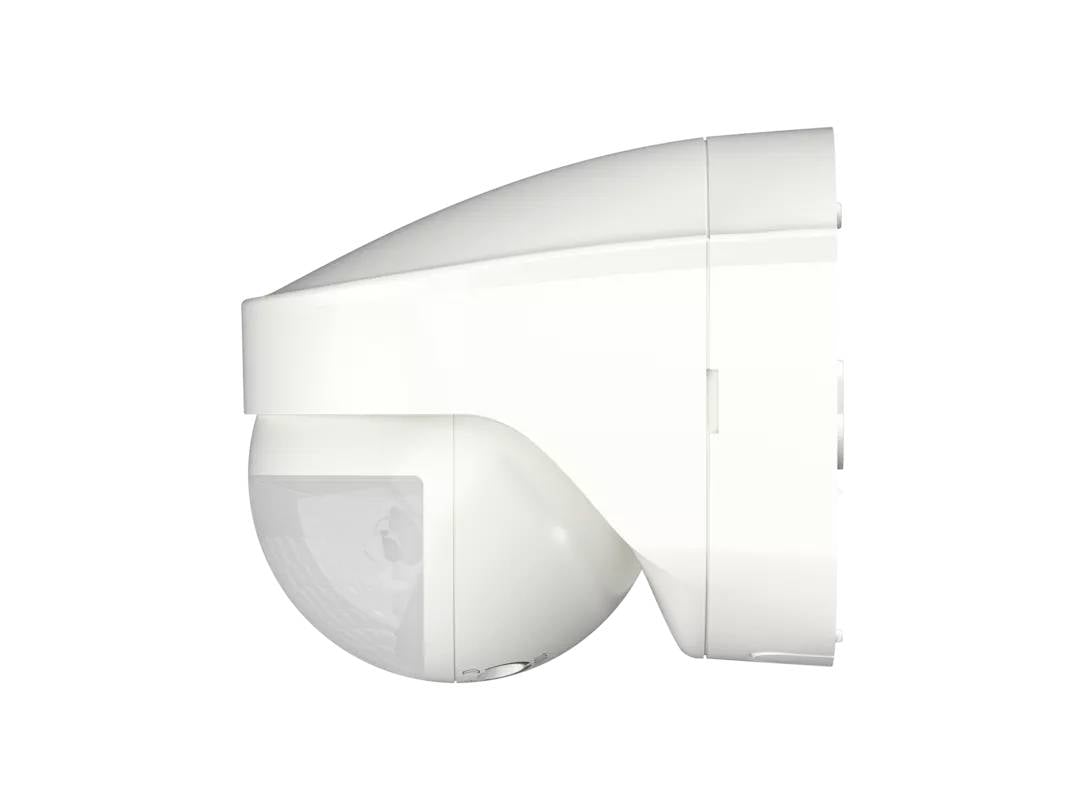

Theben 1030206 Surface-mount PIR motion detector IP55
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Horizontal coverage angle 0-180°
- Colour: white
- Type of connection: Screw terminal
- Halogen-free FALSE
- Surface protection: Untreated
- Nom. voltage: 230/230 V
- Product type
PIR motion detector
- Mounting type
Surface-mount
- Similar RAL
9010
IP55
- Type
Motion detector
- Width
78 mm
- Height
80 mm
- Dim
(W x H x D) 78 x 80 x 86 mm
- Depth
86 mm
- Material
Plastic
- Temp.
-20-40 °C
- Sensor type
Passive Infrared
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3819739 Theben 1030206 Surface-mount PIR motion detector IP55
User & Safety Instructions
User & Safety Instructions 3819739 Theben 1030206 Surface-mount PIR motion detector IP55
Information
Information 3819739 Theben 1030206 Surface-mount PIR motion detector IP55
Description
Motion detector (PIR) for wall mounting in outdoor areas, half-round detection range 180°, 10 m at 2 m mounting height, 1 channel light (relay 230 V), automatic motion and brightness-dependent control for lighting, mixing light measurement, operation as fully automatic, brightness switching value adjustable via potentiometer, follow-up time adjustable via potentiometer, factory-factory pre-setting immediately ready for operation (brightness switching value 100 Lux, Delay time 2 min.)
