Theben 1720330 DIN rail mount timer digital 7 day mode 600 W IP20 Daylight savings/sunup/sundown control

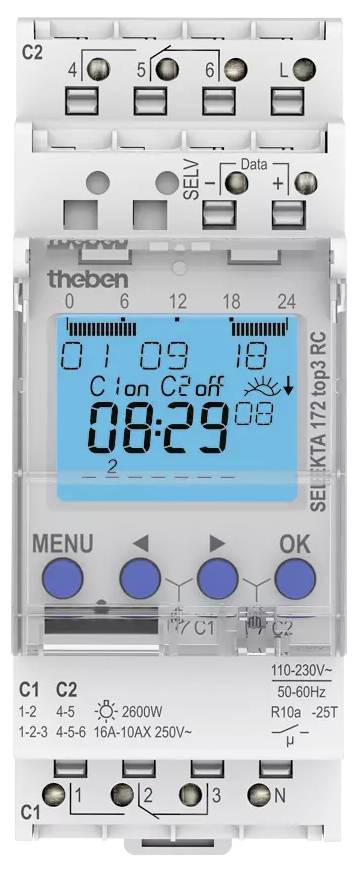

A digital programme clock device with an LCD screen displays the current time and scheduling settings.

A digital programme clock device with an LCD screen displays the current time and scheduling settings.

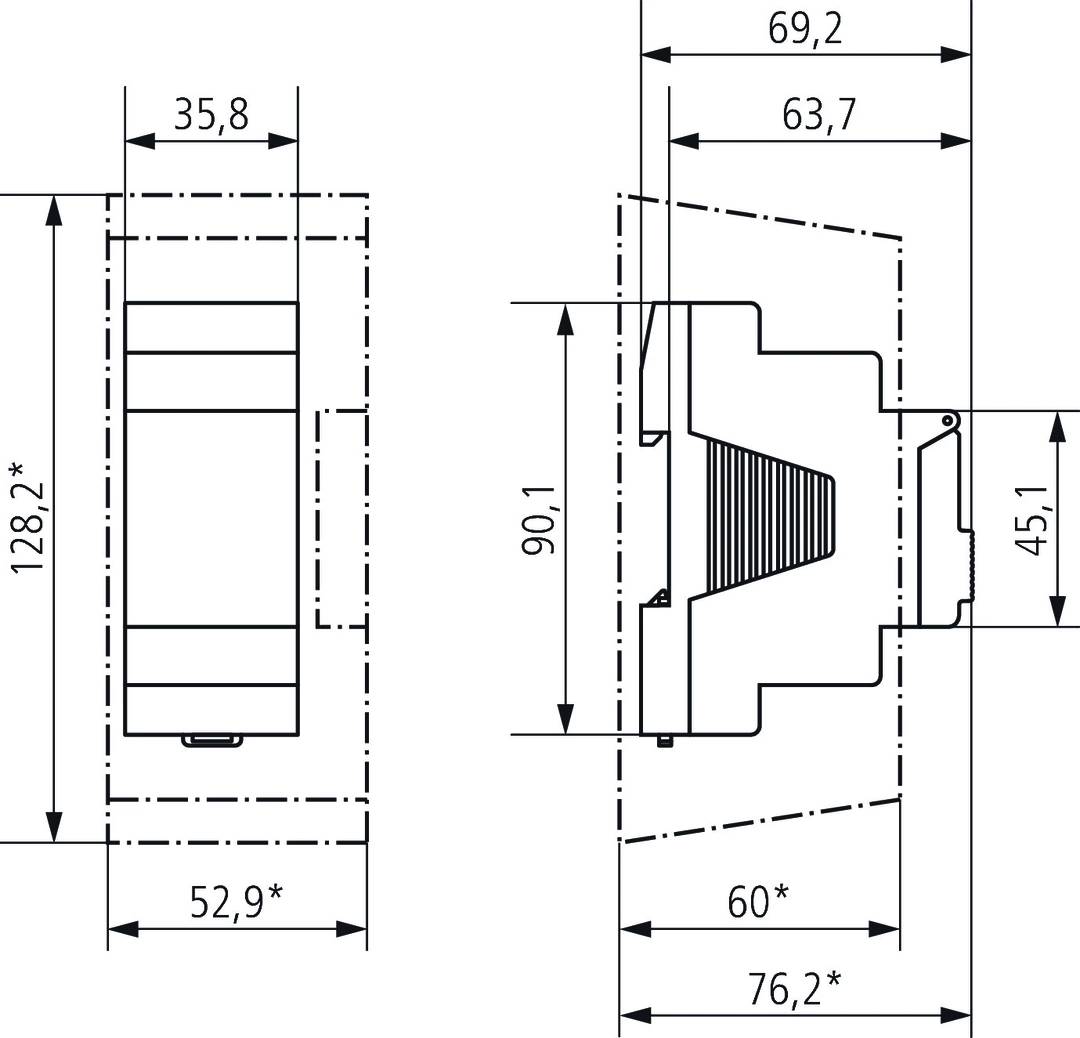

Technical drawing of a component with dimensions: 126.2 mm height, 35.8 mm width on the left, 63.7 mm width on the right, 90.1 mm internal height.

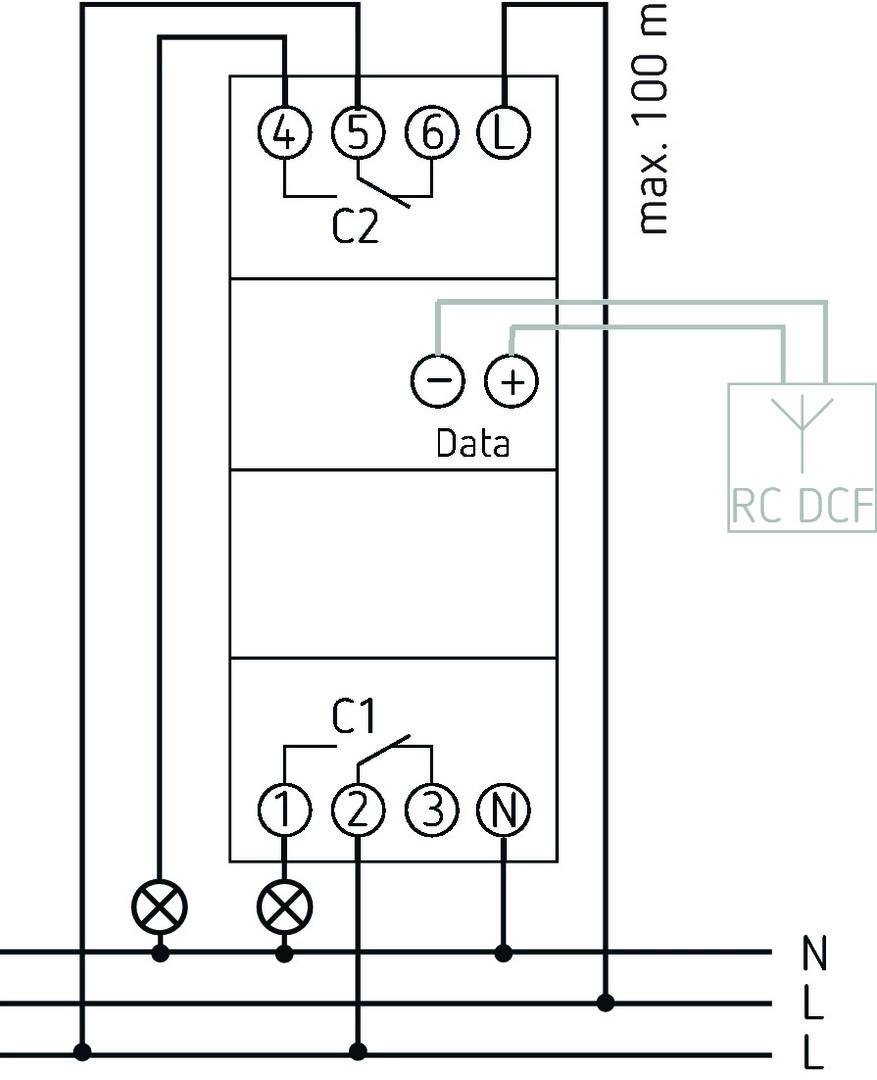

Circuit diagram of an electrical device with connections: C2, C1 for positive and negative; data connection is linked with RC DCF.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: DIN rail mount timer

Type: digital

Features: Daylight savings/sunup/sundown control

Switching cycle: 7 day mode

Used at: Indoors

: IP20

Max. switching capacity: 600 W

No. of SPCs: 3

Switching current (max.): 16 A

Factory colour: White

Width: 35 mm

Height: 128 mm

Depth: 60 mm

Dim: (W x H x D) 35 x 128 x 60 mm

Memory slots: 84

Use: Lighting and appliance control

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3357941 Theben 1720330 DIN rail mount timer digital 7 day mode 600 W IP20 Daylight savings/sunup/sundown control

User & Safety Instructions

User & Safety Instructions 3357941 Theben 1720330 DIN rail mount timer digital 7 day mode 600 W IP20 Daylight savings/sunup/sundown control

User & Safety Instructions 3357941 Theben 1720330 DIN rail mount timer digital 7 day mode 600 W IP20 Daylight savings/sunup/sundown control

User & Safety Instructions 3357941 Theben 1720330 DIN rail mount timer digital 7 day mode 600 W IP20 Daylight savings/sunup/sundown control
