Theben 2080045 Ceiling Occupancy sensor 360 ° White IP54
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Material: thermoplastic
- Material: plastic
- Stand-by output 0.4 W
- Max. Cable cross section max. 2 x 2.5 mm²
- Product type
Occupancy sensor
- Detection angle
360°
12 m
- Used at
Indoors
- Mounting type
Ceiling
- Operating voltage
230 V AC
- Twilight settings
10 – 3000 lx
- Factory colour
White
IP54
- Operating temperature
-15 °C - +50 °C

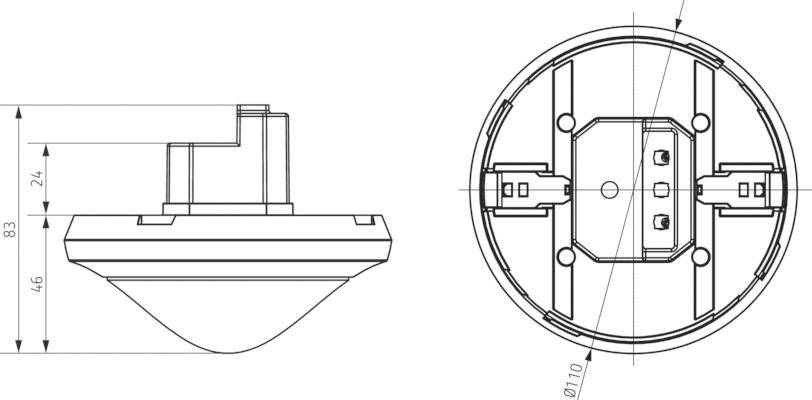

- Length
110 mm
- Width
110 mm
- Height
83 mm
- (Ø)
110 mm
- Dim
(Ø x H) 110 mm x 83 mm
Flush mounted (plaster)
White
110
Presence detector
FALSE
83 mm
110 mm
Screwed terminal
Untreated
AC
37 mm
50-60 MHz
110 mm
FALSE
48 mm
48 mm
Thermoplastic
Plastic
9010
IK04
230-230 V
IP54
FALSE
Matt
FALSE
46
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2154327 Theben 2080045 Ceiling Occupancy sensor 360 ° White IP54
User & Safety Instructions
User & Safety Instructions 2154327 Theben 2080045 Ceiling Occupancy sensor 360 ° White IP54
Description
Presence detector for ceiling mounting, round Detection range up to 24 m, DALI-master for max. 50 DALI ballasts, up to 3 light channels DALI addressable, simple configuration of DALI groups, up to 3 inputs, use of conventional buttons for maximum freedom, flexible allocation of the button at the desired light channel via the optional remote control, operating switch or constant light level control with standby functionality, Adaptive 3-channel light measurement, short-time presence
