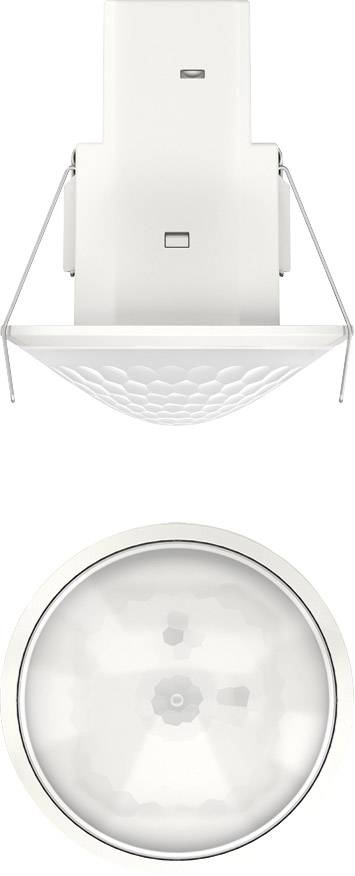

Theben 2080560 Ceiling Occupancy sensor 360 ° White IP40
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: thermoplastic
- Material: plastic
- Frequency: 50 Hz
- Max. Cable cross section max. 2 x 2.5 mm²
- Product type
Occupancy sensor
- Detection angle
360°
8 m
- Used at
Indoors
- Mounting type
Ceiling
- Operating voltage
230 V AC
- Switching capacity (light bulbs)
2300 W
- Switching capacity (LED)
80 W
- Twilight settings
30 - 3000 lx
- Factory colour
White
IP40
- Operating temperature
-15 °C - +50 °C
Flush mounted (plaster)
White
85
Presence detector
FALSE
97 mm
85 mm
Screwed terminal
Untreated
AC
74 mm
50-60 MHz
85 mm
FALSE
60 mm
64 mm
Thermoplastic
10 A
Plastic
9010
IK04
230-230 V
IP40
FALSE
Matt
FALSE
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2152477 Theben 2080560 Ceiling Occupancy sensor 360 ° White IP40
User & Safety Instructions
User & Safety Instructions 2152477 Theben 2080560 Ceiling Occupancy sensor 360 ° White IP40
Description
Presence detector for ceiling installation, detection area round, automatic brightness-dependent control for lighting, mixed light measurement, switch-off delay adjustable, sensitivity can be adjusted, values pre-set (remote parameterized)
