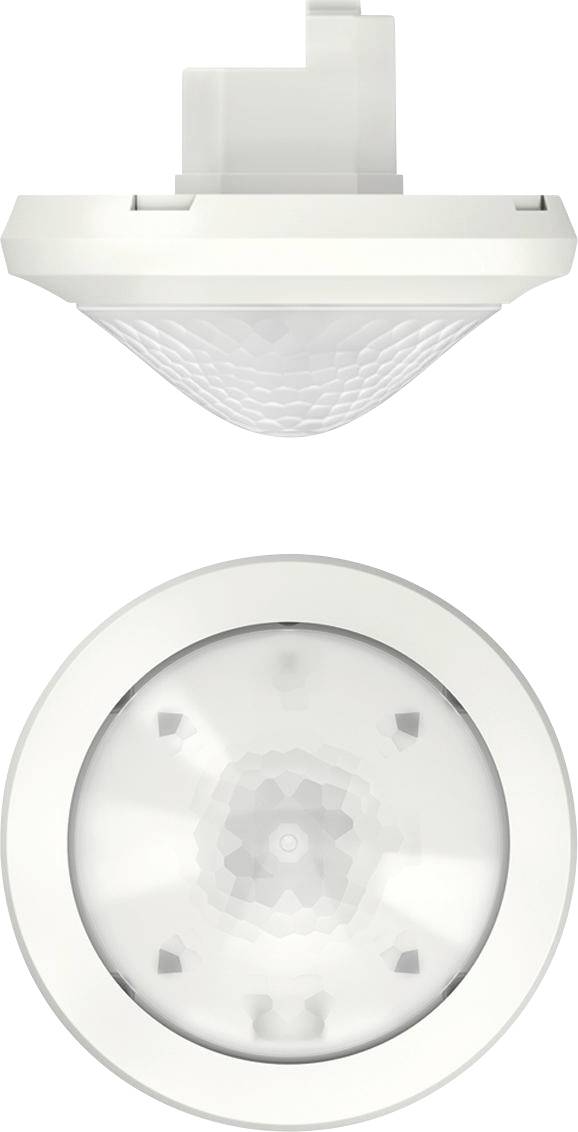

Theben 2080580 Ceiling Occupancy sensor 360 ° White IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: thermoplastic
- Material: plastic
- Stand-by output 0.4 W
- Max. Cable cross section max. 2 x 2.5 mm²
- Product type
Occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Ceiling
- Operating voltage
230 V AC
- Twilight settings
10 – 3000 lx
- Factory colour
White
IP54
- Operating temperature
-15 °C - +50 °C
- Length
110 mm
- Width
110 mm
- Height
83 mm
- (Ø)
110 mm
- Dim

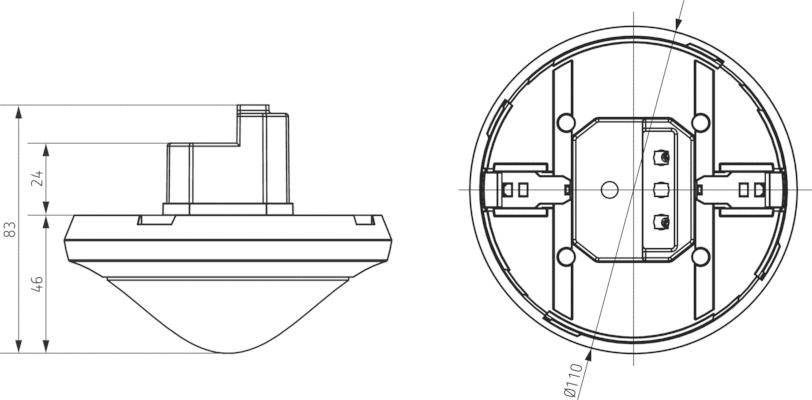

(Ø x H) 110 mm x 83 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2154328 Theben 2080580 Ceiling Occupancy sensor 360 ° White IP54
User & Safety Instructions
User & Safety Instructions 2154328 Theben 2080580 Ceiling Occupancy sensor 360 ° White IP54
Description
Presence detector for ceiling mounting, round Detection range up to 8 m, DALI master for max. 50 DALI ballasts, 1 light channel DALI broadcast, simple configuration of DALI groups, 1 input, use of conventional buttons for maximum freedom, flexible allocation of the button at the desired light channel via the optional remote control, operating switch or constant light level control with standby functionality, Adaptive 1-channel light measurement, short-time presence
