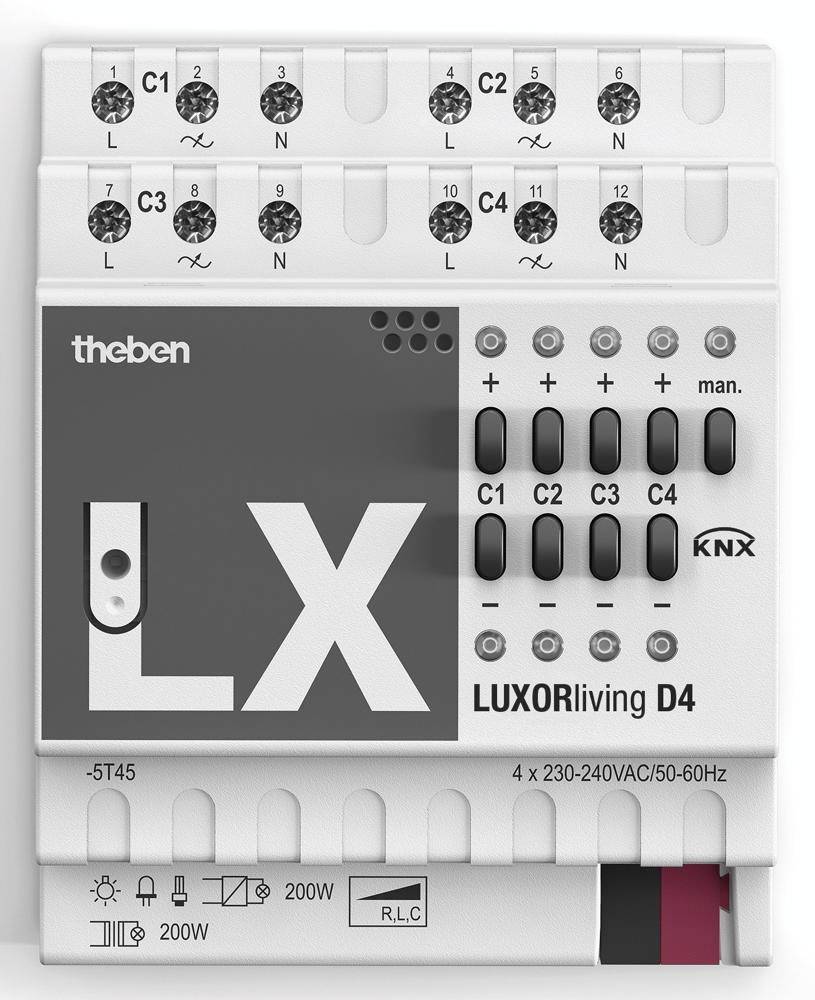

Theben 4800475 Dimmer actuator LUXORliving D4
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Width: 4 TE
- Number of Channels: 4
- Lamp types Incandescent lamps, low voltage and high-voltage halogen lamps, dimmable compact fluorescent lamps and LED
- Incandescent/halogen lamp load: 200 W
- LED-Lamp: phase section (RC-mode): 200 W
- Compact fluorescent lamps: phase section (RC-mode): 200 W
- Product type
Dimmer actuator
- Max. switching capacity
200 W
- Used at
Internal
IP20
- Operating voltage
230 V AC
200 W
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
DIN rail
- Hub
Not required, optional for remote access
n.rel.
- Features
Dimmer function
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2157938 Theben 4800475 Dimmer actuator LUXORliving D4
User & Safety Instructions
User & Safety Instructions 2157938 Theben 4800475 Dimmer actuator LUXORliving D4
User & Safety Instructions 2157938 Theben 4800475 Dimmer actuator LUXORliving D4
Description
Multi-purpose dimming actuator 4-way for the Smart Home System Luxor living, dimming range 0-100%, maximum load: 4 x 200 W/VA, for dimming the light bulbs, low-voltage and high-voltage halogen lamps, dimmable energy saving lamps, dimmable LED retrofit lamps, different dimm curves allow a stepless dimming of all lamp types, automatic load detection (selectable), manual operation 0, 25, 50, 75 and 100% or test
