Theben 4854164 Ceiling Motion detector 360 ° Relay White IP40
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Theben thePrema S 360.100 E UP WH presence detector
- Channel A light: relay, 230 V
- Operation as fully or semi-automatic, switchable
- Self-learning follow-up time
Technical specifications
- Switch-on current (max.): 800 A/200 μs
- Setting range for brightness: 5 - 3000 lx.
- Product type
Motion detector
- Detection angle
360°
8 m
- Used at
Indoors
- Mounting type
Ceiling
- Contact type
Relay
- Voltage (max.)
230 V
- Switching capacity (light bulbs)
2300 W
- Switching capacity (halogen bulbs)
2300 W
- Switching capacity (LED)
60 W - 200 W
- Time settings
10 Sec. - 60 Min.
- Factory colour
White
IP40
- Operating temperature
0 °C - +50 °C

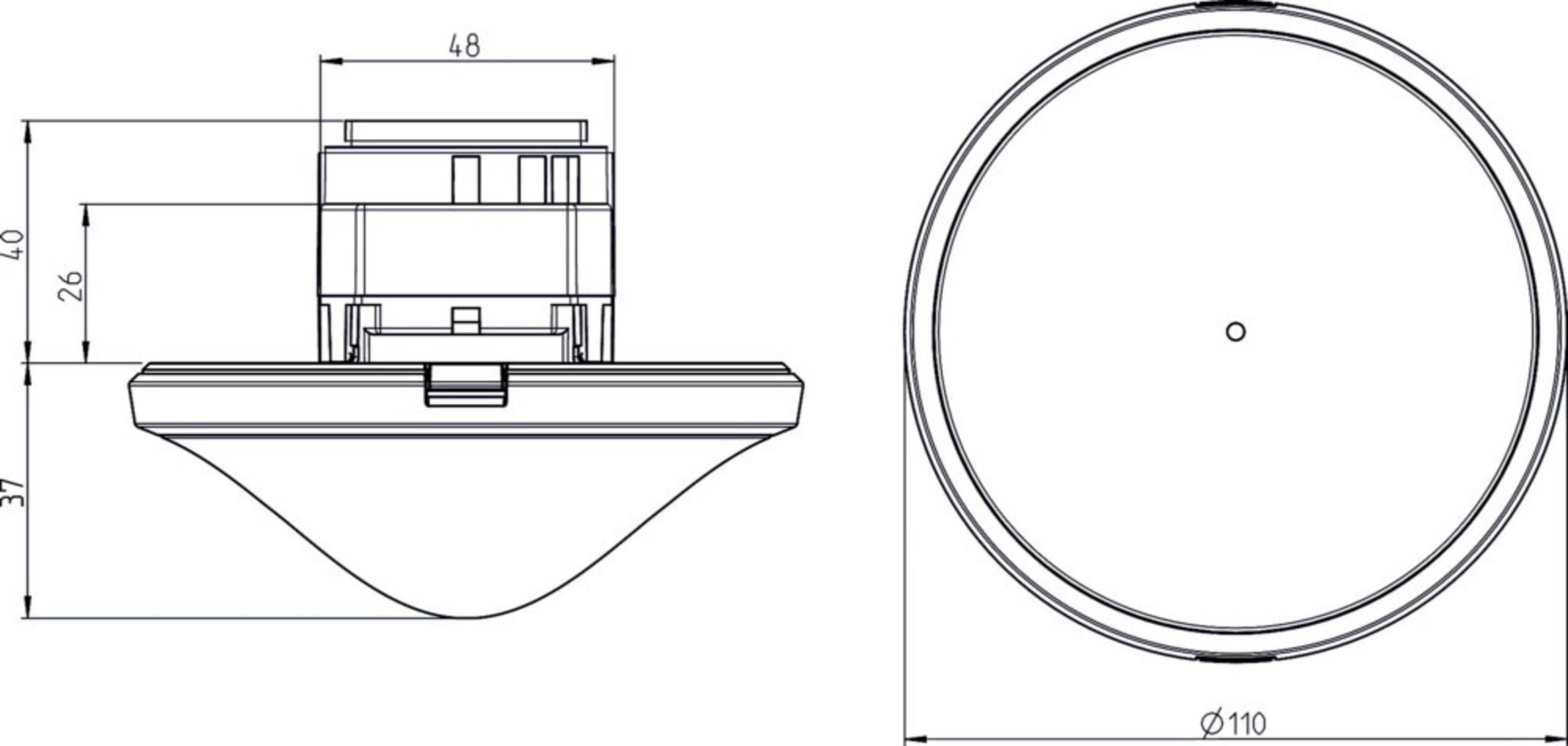

- Height
77 mm
- (Ø)
110 mm
- Dim
(Ø x H) 110 mm x 77 mm
- Voltage (min.)
110 V
Flush mounted (plaster)
White
110
Presence detector
FALSE
77 mm
110 mm
Screwed terminal
Untreated
AC
40 mm
50-60 MHz
110 mm
FALSE
48 mm
48 mm
Thermoplastic
10 A
Plastic
9010
IK04
110-230 V
IP40
FALSE
Matt
FALSE
46
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1610226 Theben 4854164 Ceiling Motion detector 360 ° Relay White IP40
User & Safety Instructions
User & Safety Instructions 1610226 Theben 4854164 Ceiling Motion detector 360 ° Relay White IP40
Description
Square Detection range 360° (up to 64 m2) for safe and simple planning. Automatic presence and brightness-dependent control for lighting. Mixed light measurement for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs. Connection option for button or switch for manual switching with automatic detection" button switch".
This text is machine translated.
This text is machine translated.
Features
- Adjustable brightness switching value, teach-in function
- Pulse function for staircase light switch
- By factory default setting is immediately ready for use
- Very easy setting of the energy-saving behavior with the new "eco plus" function
- Test mode for checking function and detection range

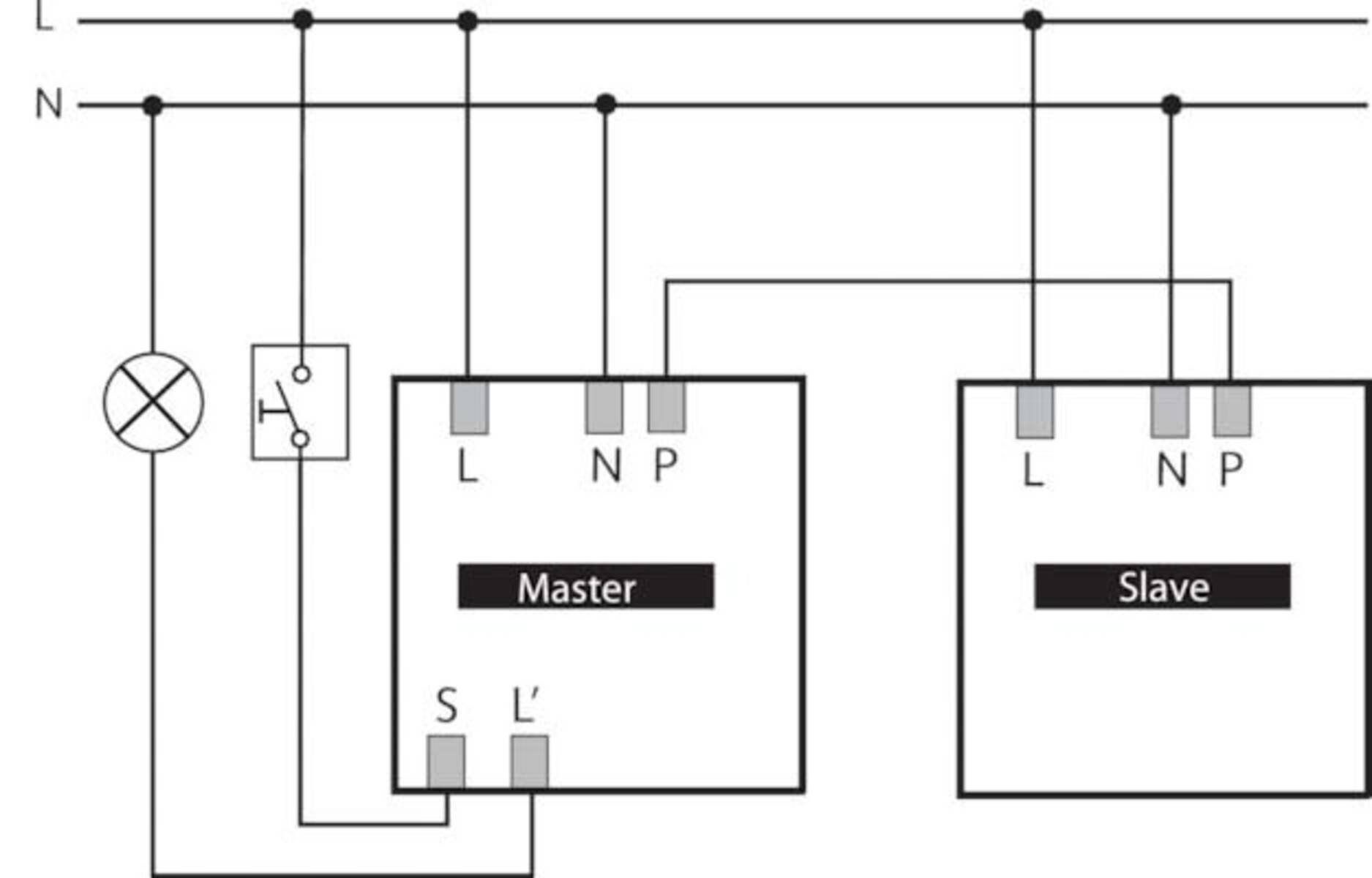

- The expansion of the detection area by Master/Slave or master/master switch, a maximum of 10 detectors can be connected in parallel
- Ceiling mounting in flush-mounted socket.
Scope of delivery
- Presence detector
