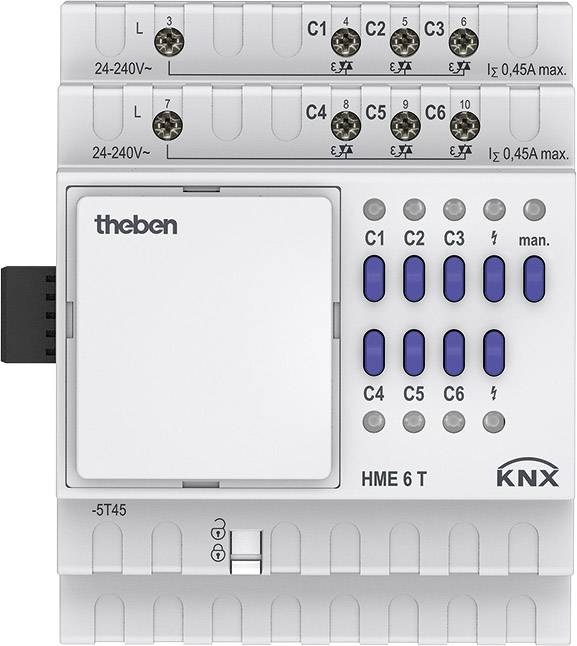

Theben 4930245 Thermal actuator HME 6 T KNX
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Stand-by power: ~0.2 W
- Width: 4 TE
- Connection type: Screw terminals
- Max. Cable cross-section: Solid: 0.5 mm² (Ø 0.8) to 4 mm² ; Wire with wire-end sleeve: 0.5 mm² to 2.5 mm²
- Switching output: Non-potential-free
- Output: Triac, 0.45 A
- Voltage Output: 24 V AC - - 240 V AC
- Frequency Output: 50 - 60 Hz
- Switching of different external conductors: Possible
- Ambient temperature: -5°C ... 45°C
- Product type
Thermal actuator
- Used at
Indoors
IP20
- Operating voltage
240 V AC
0.2 W
- Data transfer (Smart Home)
Wired
- Channels
6
- Mounting type
DIN rail
- Hub
Not required, optional for remote access
n.rel.
DRA (DIN-rail adapter)
TRUE
FALSE
FALSE
FALSE
4
FALSE
IP20
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2157628 Theben 4930245 Thermal actuator HME 6 T KNX
User & Safety Instructions
User & Safety Instructions 2157628 Theben 4930245 Thermal actuator HME 6 T KNX
User & Safety Instructions 2157628 Theben 4930245 Thermal actuator HME 6 T KNX
Description
KNX heating actuator for 6 channels, expansion device, modular installation device, width 4 TE, expandable with HME 6T up to 18 channels or can be combined with other devices in the MIX-series. 6 potential-free triac outputs (24V-250V AC), continuous and switching manipulated variable as well as the inclusion of boiler control can be selected, in addition circulation pump controlled, Notprogramm at bus or telegram failure, summer operation and valve protection, LED status indicator and manual switch
