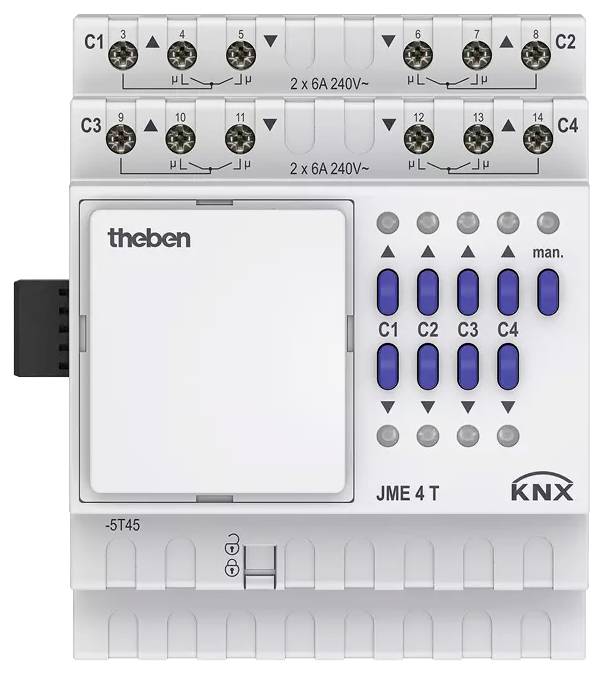

Theben 4930255 Blinds actuator JME 4 T KNX
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Blinds actuator
- Used at
Indoors
0.2 W
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
DIN rail
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Weight
0.29
DRA (DIN-rail adapter)
0 W
TRUE
FALSE
FALSE
TRUE
4
FALSE
IP20
TRUE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3357782 Theben 4930255 Blinds actuator JME 4 T KNX
User & Safety Instructions
User & Safety Instructions 3357782 Theben 4930255 Blinds actuator JME 4 T KNX
Description

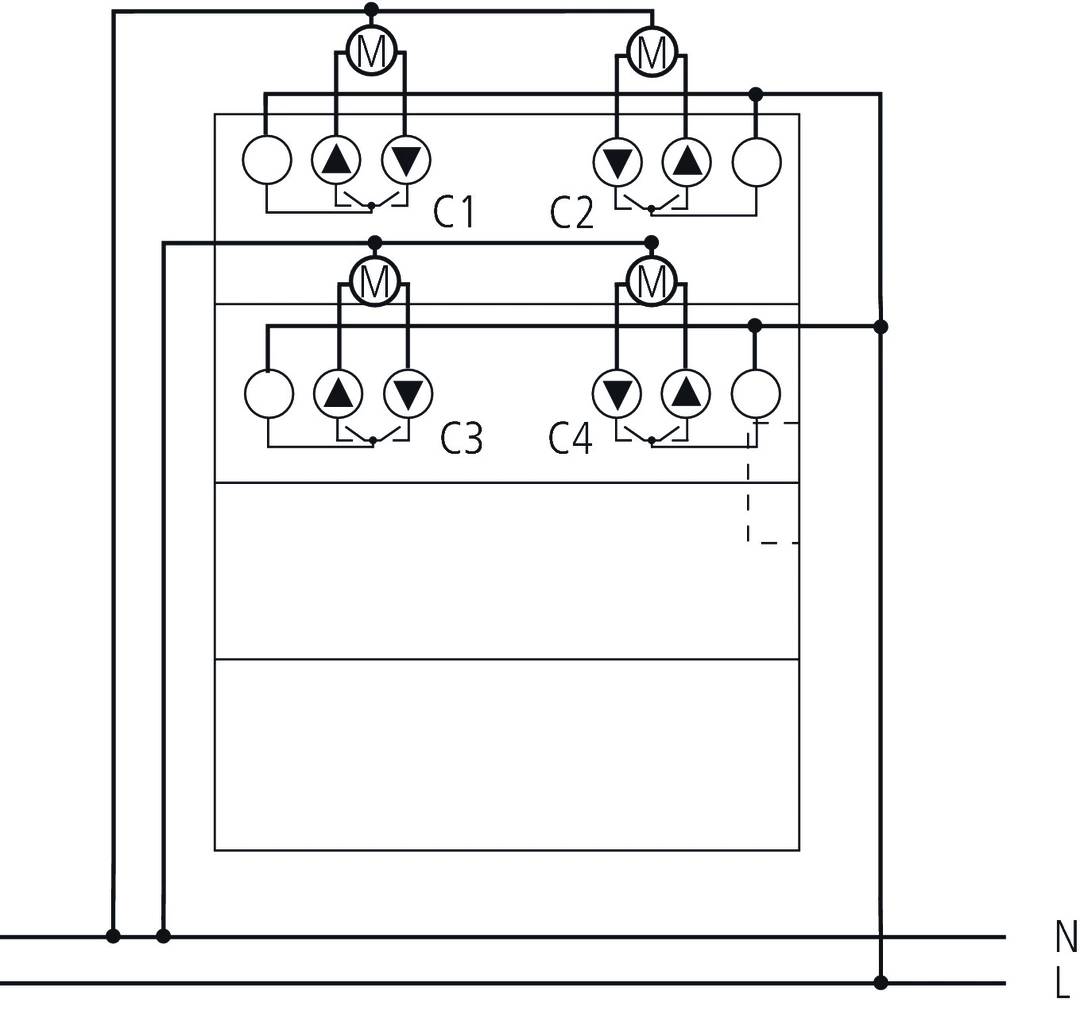

KNX blind actuator, 4-way drive control, extension unit, series mounting unit, width 4 TE (4 TE), expandable with JME 4 T up to 12 channels or can be combined with other devices of the MIX series, relay outputs for four drives, drives: E.g. for blinds, shutters, awnings, manual operation on the device, slip correction, drive freely parameterizable, hand switch UP/DOWN and LEDs
