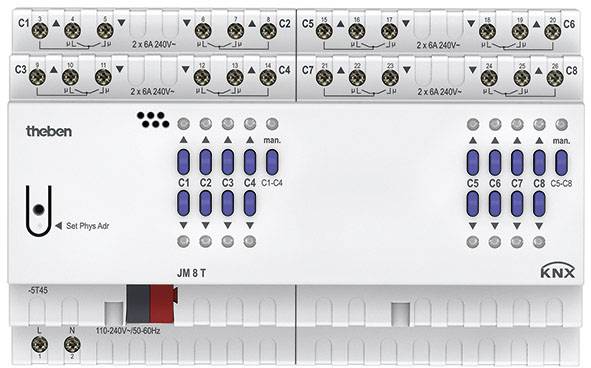

Theben 4940255 Window blinds/shutter actuator JM 8 T KNX
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Standby power: ~0.5 W
- Width: 8 TE
- Connection type: Screw terminals ; Bus connection: KNX Bus terminal
- Max. Cable cross-section: Solid: 0.5 mm² (Ø 0.8) to 4 mm² ; Wire with wire-end sleeve: 0.5 mm² to 2.5 mm²
- Output: Normally open contact, 6 A
- Switching output: Potential-free, suitable for SELV, if the whole device switches SELV
- Ambient temperature: -5°C ... 45°C
- Product type
Window blinds/shutter actuator
IP20
- Operating voltage
240 V AC
0.5 W
- Data transfer (Smart Home)
Wired
- Channels
8
- Mounting type
DIN rail
- Factory colour
Multicolour
- Hub
Not required, optional for remote access
n.rel.
DRA (DIN-rail adapter)
0.5 W
TRUE
FALSE
FALSE
FALSE
8
FALSE
IP20
TRUE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2157626 Theben 4940255 Window blinds/shutter actuator JM 8 T KNX
User & Safety Instructions
User & Safety Instructions 2157626 Theben 4940255 Window blinds/shutter actuator JM 8 T KNX
Description
KNX blind actuator, 8-way drive control, modular installation device, width 8 TE, relay outputs for 8 drives, drives: for example, for blinds, shutters, awnings, manual operation on the device, slip correction, drive can be freely parameterized, hand switch UP/DOWN and LEDs, 8 normally open contact
