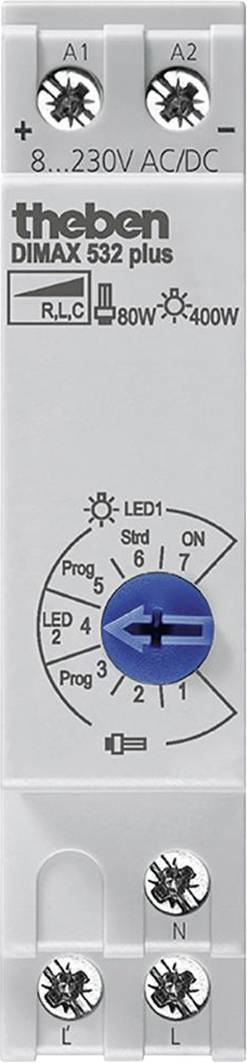

Theben 5320001 Universal dimmer Suitable for light bulbs: Energy saving bulb, Halogen lamp, Light bulb, LED bulb, Fluore
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Halogen-free: Yes
- Material: thermoplastic
- Material: plastic
- Control voltage: 8 V-230V
- Frequency: 50 Hz
- Product type
Universal dimmer
- Operating voltage
230 V
- Power rating (max.)
400 W
- Suitable for light bulbs
Energy saving bulb
Halogen lamp
Light bulb
LED bulb
Fluorescent lamp
- Factory colour
White
- Type
Screw terminal
- Dim
(L x W x H) 66 x 18 x 86 mm
- Length
66 mm
- Width
18 mm
- Height
86 mm
DRA (DIN-rail adapter)
Basic element
Touch control button
White
TRUE
1
Screwed terminal
Untreated
0.2 W
50-50 MHz
Thermoplastic
Plastic
IK04
230-230 V
FALSE
Matt
IP20
18 mm
86 mm
66 mm
1
FALSE
TRUE
TRUE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2158323 Theben 5320001 Universal dimmer Suitable for light bulbs: Energy saving bulb, Halogen lamp, Light bulb, LED bulb, Fluore
User & Safety Instructions
User & Safety Instructions 2158323 Theben 5320001 Universal dimmer Suitable for light bulbs: Energy saving bulb, Halogen lamp, Light bulb, LED bulb, Fluore
Description
Number of built-in universal dimmer for R, L and C-loads with automatic load detection, 2 optimized settings for dimmable energy saving lamps of various manufacturers including adjustable minimum brightness, adjustable switch-on brightness, dimming switch function for slow aufdimmen at a long button press, Automatic electronic overload protection and over temperature cut-off, input electrically isolated for intercom systems AC/DC 8...230 V, permanently function for installation testing, Dimmer preset for immediate start-up
