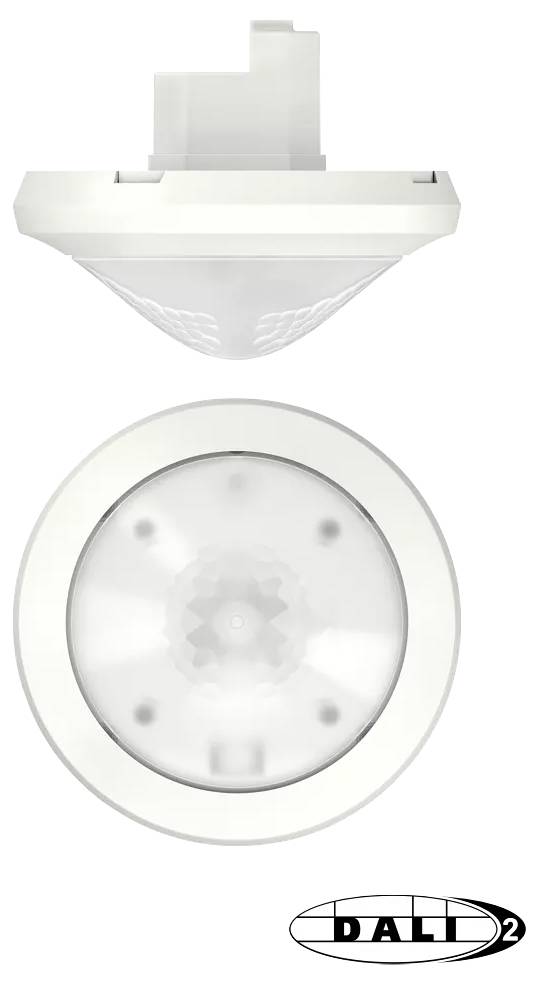

Theben DALI 2010390 Occupancy sensor Max. range (open field) 30 m thePassa P360 DALI-2 S UP WH
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Occupancy sensor
- Series
DALI
- Data transfer (Smart Home)
Wired
30 m
- Mounting type
Ceiling
- Hub
Not required, optional for remote access
- Features
Test function
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3359775 Theben DALI 2010390 Occupancy sensor Max. range (open field) 30 m thePassa P360 DALI-2 S UP WH
User & Safety Instructions
User & Safety Instructions 3359775 Theben DALI 2010390 Occupancy sensor Max. range (open field) 30 m thePassa P360 DALI-2 S UP WH
User & Safety Instructions 3359775 Theben DALI 2010390 Occupancy sensor Max. range (open field) 30 m thePassa P360 DALI-2 S UP WH
Description
Ceiling-mounted presence sensor, DALI-2 certified, rectangular detection range 360°, up to 30 m x 5 m (150 m2), 2-way mixing light measurement, 3 instances for presence - detection range zone 1 + 2 / zone 1 / zone 2, 3 Brightness Instances - Zone 1 + 2 / Zone 1 / Zone 2, provides information on "presence" and "brightness" as DALI telegram according to IEC 62386 Part 303/304, simple calibration of brightness measurement, test mode for checking function and detection range, detection sensitivity adjustable, A multi-Master application controller is required for commissioning/control and configuration; it must support parts 101/103 and optionally 301/303/304 in accordance with IEC 62386
