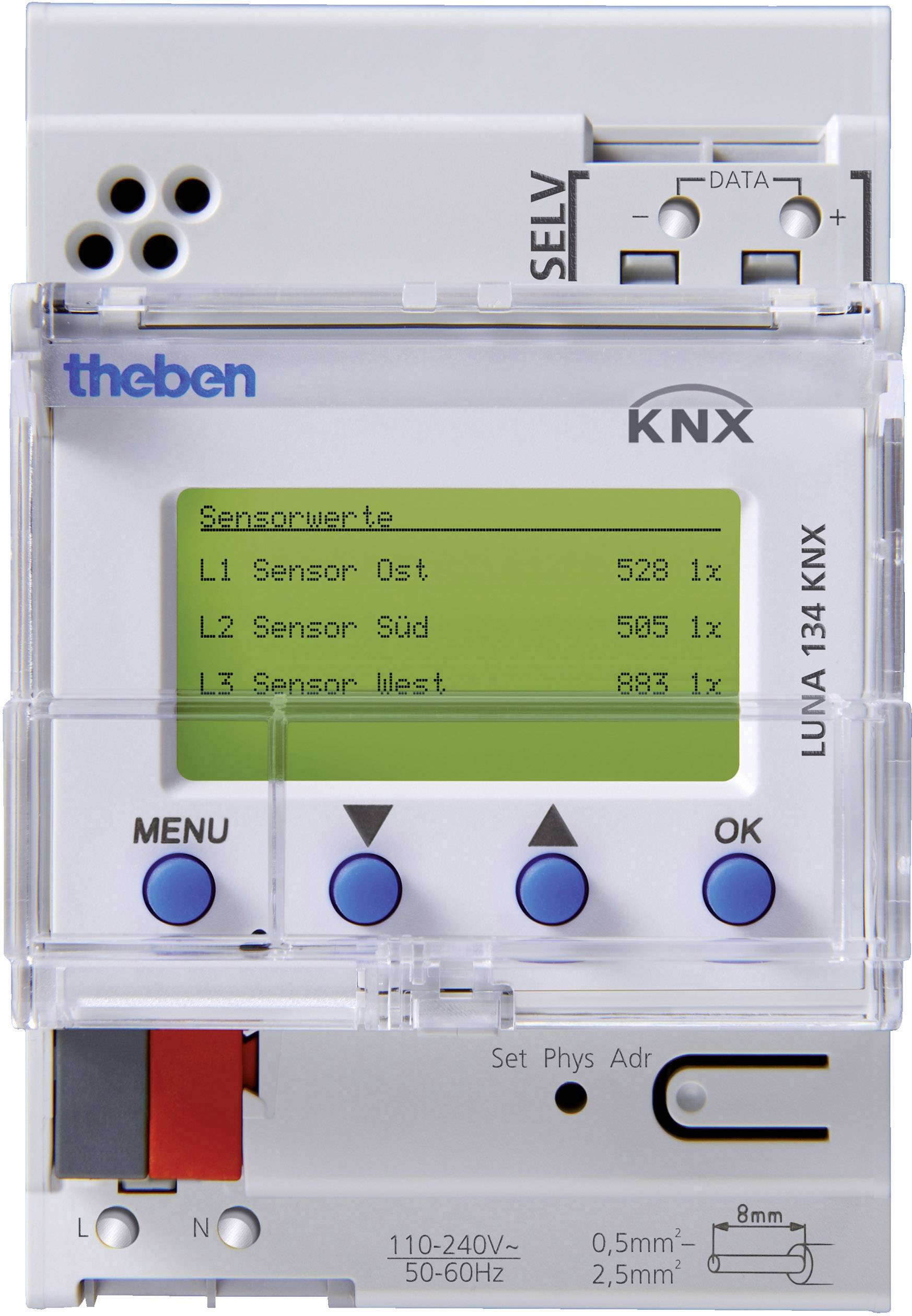

Theben KNX 1349200 Twilight switch LUNA 134 KNX
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Stand-by power: ~0.8 W
- Measuring range Brightness: 1 – 100000 lx
- Switch-on delay: 0 – 20 min
- Number of channels: 10
- Width: 3 TE
- Mounting type: DIN-rail
- Connection type: Bus connection: KNX Bus terminal ; Sensor connection: Duofix Spring-plug terminals
- Max. Cable cross-section 2 x 0.75 mm²
- Max. Cable length to sensor: 100 m
- ambient temperature: -5°C ... 45°C
- Setting range Temperature: -40°C ... 70°C.
- Product type
Twilight switch
- Series
KNX
IP20
- Operating voltage
240 V AC
0.8 W
- Data transfer (Smart Home)
Wired
- Channels
10
- Mounting type
DIN rail
- Hub
Not required, optional for remote access
n.rel.
- Features
2-lead
DRA (DIN-rail adapter)
TRUE
FALSE
FALSE
TRUE
FALSE
IP20
TRUE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2157547 Theben KNX 1349200 Twilight switch LUNA 134 KNX
User & Safety Instructions
User & Safety Instructions 2157547 Theben KNX 1349200 Twilight switch LUNA 134 KNX
User & Safety Instructions 2157547 Theben KNX 1349200 Twilight switch LUNA 134 KNX
Description
10-channel dimmer switch/light control device, for brightness-dependent control, modular installation device with transparent cover and quick mounting, wide 3TE (3TE), up to 3 digital brightness sensors via 2-wire bus can be connected, for end customers comfortable hand operation via 4 buttons for threshold and delay time input, in clear text specified threshold values can be shown on the display, retrieved and modified display lighting (can be switched off), 4 additional threshold channels to link external KNX sensors (e.g. temperature), 6 logic channels, DuoFix spring-plug terminals
This text is machine translated.
