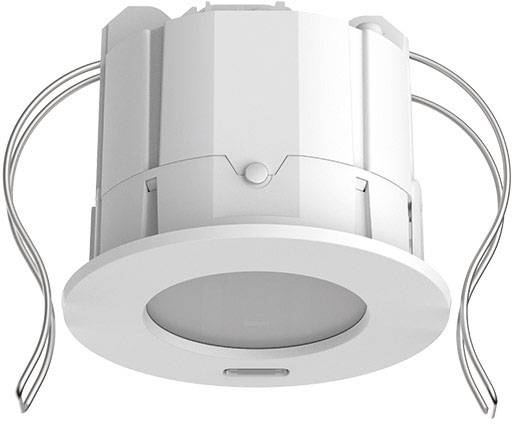

Theben KNX 2039100 Motion detector 360 KNX DE WH
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Light bulbs: compact fluorescent lamps, fluorescent lamps, Incandescent/halogen lamps, LEDs
- Type of light measurement: mixing light measurement
- Stand-by time light: 30 s - 60 min, on, inactive
- Stand-by brightness: 1 - 25%
- Delay time presence: 10 s - 120 min
- Switch-on delay presence: 10 s to 30 min/inactive
- Ambient temperature: 0 °C ... 50°C
- Detection area: 49 m² (7.0 x 7.0 m)
- Product type
Motion detector
- Series
KNX
- Used at
Indoors
- Data transfer (Smart Home)
Wired
- Channels
5
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
n.rel.
- Features
Test function
Flush mounted (plaster)
White
76
Presence detector
76 mm
72 mm
Untreated
69 mm
76 mm
FALSE
66 mm
66 mm
Thermoplastic
TRUE
FALSE
FALSE
TRUE
Plastic
FALSE
9010
66 mm
FALSE
Matt
FALSE
FALSE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2157670 Theben KNX 2039100 Motion detector 360 KNX DE WH
User & Safety Instructions
User & Safety Instructions 2157670 Theben KNX 2039100 Motion detector 360 KNX DE WH
User & Safety Instructions 2157670 Theben KNX 2039100 Motion detector 360 KNX DE WH
Description
Passive infrared (PIR) presence detector for ceiling installation, flat design, three channels light for the control of light groups, switch or constant light level control, reduction of follow-up time light with a short presence, mixed light measurement, square 360° detection range, light switch-off delay is self-learning, standby functionality, 2 presence channels with switch-on delay can be set or inactive, off delay adjustable, test functions, integrated bus coupling unit and power supply by bus
