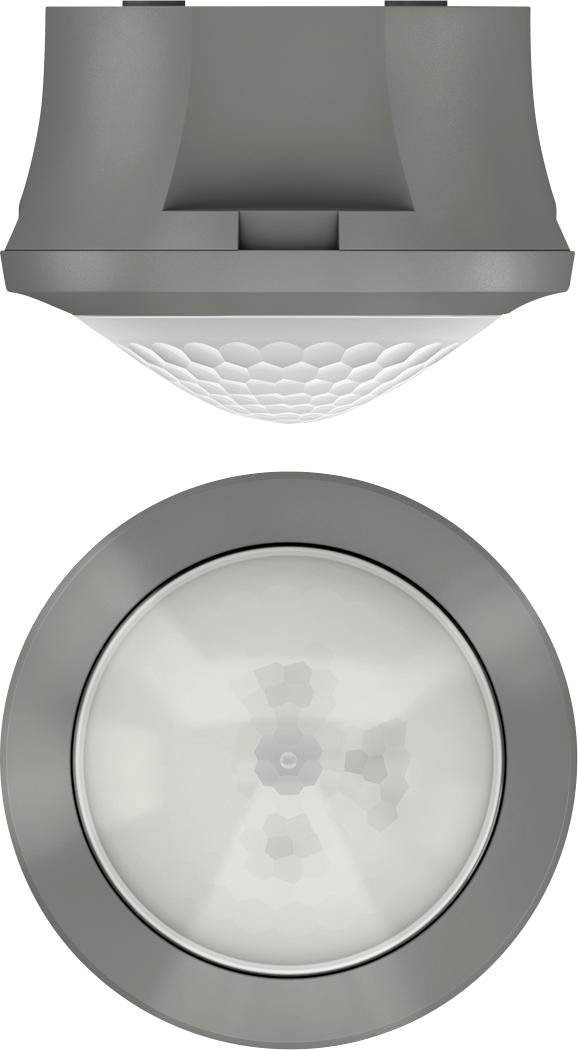

Theben KNX 2089551 Motion detector Max. range (open field) 8 m theRonda S360 KNX AP GR
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Light source: Compact fluorescent lamps, fluorescent lamps, incandescent/halogen lamps, LEDs
- Type of light measurement: Mixed light measurement
- Follow-up time Prasenz: 10 s - 120 min
- Switch-on delay Prasenz: 10 s - 30 min / inactive
- Ambient temperature: -15°C ... 50°C detection range 50 m² (ø 8 m ; 360°)
- Product type
Motion detector
- Series
KNX
- Used at
Indoors
- Data transfer (Smart Home)
Wired
- Channels
3
8 m
- Mounting type
Surface-mount
- Hub
Not required, optional for remote access
n.rel.
- Features
Dimmer function
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2157945 Theben KNX 2089551 Motion detector Max. range (open field) 8 m theRonda S360 KNX AP GR
User & Safety Instructions
User & Safety Instructions 2157945 Theben KNX 2089551 Motion detector Max. range (open field) 8 m theRonda S360 KNX AP GR
Description
KNX presence detector for ceiling mounting surface-mounted, KNX interface, detection area 4 m (for seated persons), 8 m (for outgoing people) at 3 m installation height, mounting height up to 4 m, 2 channels light with light measurement or without brightness influence, 2 channels presence (individually programmable), self-learning follow-up time, short-time presence, manual override, constant light level control with orientation light (stand-by functionality), dimmable lighting in the switching mode with orientation light (stand-by functionality), brightness setpoint can be set in Lux via parameter, object or remote control, teach-in function, scenes functionality, remote control, light measurement 10-3000 Lux, simple adjustment of light measurement, adjustable sensitivity, protection class IP 54, housing gray
