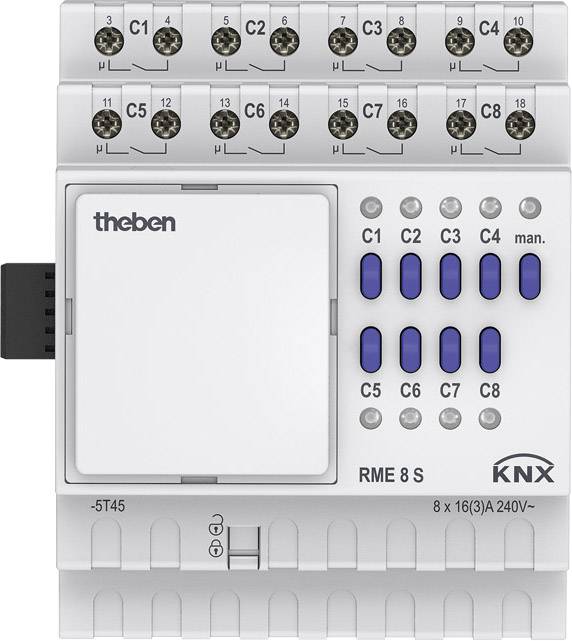

Theben KNX 4930225 Actuator RME 8 S KNX
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Width: 4 TE
- Connection type: Screw terminals
- Max. Conductor cross-section: Solid: 0.5 mm² (Ø 0.8) to 4 mm²; stranded conductor with wire-end sleeve: 0.5 mm² to 2.5 mm²
- Number of channels: 8
- contact type: Closer, 16 A, 3 A
- Ohm resistive load: 3680 W
- glow/halogen lamp load: 2000 W
- fluorescent lamp load (KVG) parallel compensated: 1300 W (140 µF)
- fluorescent lamp load (KVG) not compensated: 2000 VA 2000
- VA lamp load (EVG): 1200 W
- Compact fluorescent lamps: 300 W
- Inrush current: Max. 800 A / 200 µs
- Voltage output: 240 V AC
- Switching output: Potential-free
- Product type
Actuator
- Series
KNX
- Max. switching capacity
3680 W
- Used at
Indoors
IP20
- Operating voltage
240 V AC
0.2 W
- Data transfer (Smart Home)
Wired
- Channels
8
- Mounting type
DIN rail
- Width
72 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
DRA (DIN-rail adapter)
0.5 W
TRUE
FALSE
FALSE
FALSE
4
FALSE
IP20
TRUE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2157424 Theben KNX 4930225 Actuator RME 8 S KNX
User & Safety Instructions
User & Safety Instructions 2157424 Theben KNX 4930225 Actuator RME 8 S KNX
Description
KNX switch actuator expansion module with relay outputs for 8 switching channels, expansion of rmg 8S to up to 24 channels or with other MIX expansion units, modular installation housing width 72 mm, LED status indicator for each channel, hand switch with status display (even without the bus voltage), connections, Contact Type (NC/NO) and participation in central commands such as permanently on, permanently off, central and scene storage/retrieval, Switching Functions: on/off, impulse, a/Aus-Verzogerung according to DIN 18015-2, stair light with warned logical links: Lock, and, share, or. Status feedback object for each channel, central objects with and without priority, store and retrieve scenes (object), Scene object for each channel 16A/250V, cos phi=1.
