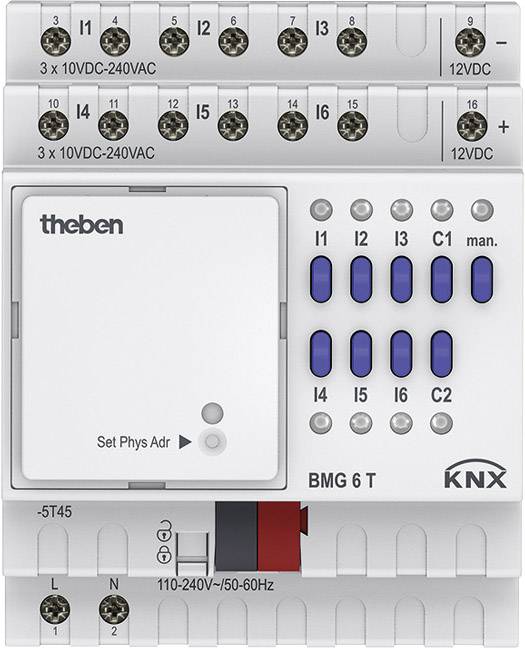

Theben KNX 4930230 Binary input BMG 6 T KNX
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Stand-by power: ~0.3 W
- Width: 4 TE
- Connection type: KNX Bus Terminal
- Max. Cable cross-section: Solid: 0.5 mm² (Ø 0.8) to 4 mm² ; Wire with wire-end sleeve: 0.5 mm² to 2.5 mm²
- Max. Cable length: 100 m
- Output: 12 V DC/18 mA, no SELV
- Display: 6 LEDs to indicate the state at the input
- Ambient temperature: -5°C ... 45°C
- Product type
Binary input
- Series
KNX
IP20
- Operating voltage
240 V AC
0.3 W
- Data transfer (Smart Home)
Wired
- Channels
6
- Mounting type
DIN rail
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Features
Dimmer function
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2157645 Theben KNX 4930230 Binary input BMG 6 T KNX
User & Safety Instructions
User & Safety Instructions 2157645 Theben KNX 4930230 Binary input BMG 6 T KNX
User & Safety Instructions 2157645 Theben KNX 4930230 Binary input BMG 6 T KNX
Description
Binary input for 6 channels, basic unit, can be extended with BME 6T up to 18 channels or other MIX expansion units, modular installation case width 4 TE, multi-voltage inputs 8-250 V AC/DC, auxiliary voltage for floating inputs supplied by the device, all inputs can be operated with different voltages, LED status indicator for all inputs, Functions: Disable object and 2 output objects per channel, behavior at buswiederkehr adjustable, Software Features: switch/button, dimming, shutter, encoder, counter
