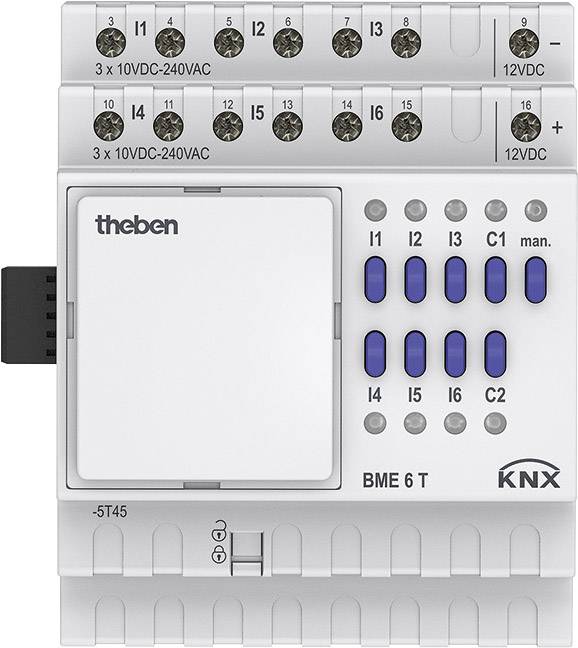

Theben KNX 4930235 Binary input Max. range (open field) 100 m BME 6 T KNX
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Width: 4 TE
- Connection type: KNX Bus Terminal
- Max. Cable cross-section: Solid: 0.5 mm² (Ø 0.8) to 4 mm² ; Wire with wire-end sleeve: 0.5 mm² to 2.5 mm²
- Voltage/current consumption Input: 10 V DC – 240 V AC 2 mA
- Max. Cable length: 100 m
- Output: 12 V DC/18 mA, no SELV
- Display: 6 LEDs to indicate the state at the input
- Ambient temperature: -5°C ... 45°C
- Product type
Binary input
- Series
KNX
IP20
- Operating voltage
240 V AC
- Data transfer (Smart Home)
Wired
- Channels
6
100 m
- Mounting type
DIN rail
- Hub
Not required, optional for remote access
n.rel.
- Features
Dimmer function
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2157646 Theben KNX 4930235 Binary input Max. range (open field) 100 m BME 6 T KNX
User & Safety Instructions
User & Safety Instructions 2157646 Theben KNX 4930235 Binary input Max. range (open field) 100 m BME 6 T KNX
User & Safety Instructions 2157646 Theben KNX 4930235 Binary input Max. range (open field) 100 m BME 6 T KNX
Description
Binary input for 6 channels, expansion device, for the extension of all MIX 2 basic units, series mounting case width 4 TE, multi-voltage inputs 8-250 V AC/DC, auxiliary voltage for floating inputs supplied by the device, all inputs can be operated with different voltages, LED status indicator for all inputs, Functions: Disable object and 2 output objects per channel, behavior at buswiederkehr adjustable, Software Features: switch/button, dimming, shutter, encoder, counter
