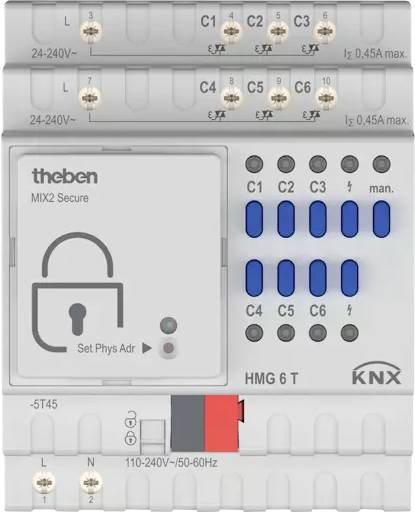

Theben KNX 4930240 Thermal actuator HMG 6 T KNX
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Thermal actuator
- Series
KNX
- Data transfer (Smart Home)
Wired
- Channels
6
- Mounting type
DIN rail
- Factory colour
White
- Hub
Not required, optional for remote access
- Weight
0
DRA (DIN-rail adapter)
TRUE
FALSE
FALSE
TRUE
4
FALSE
IP20
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3357777 Theben KNX 4930240 Thermal actuator HMG 6 T KNX
User & Safety Instructions
User & Safety Instructions 3357777 Theben KNX 4930240 Thermal actuator HMG 6 T KNX
Description

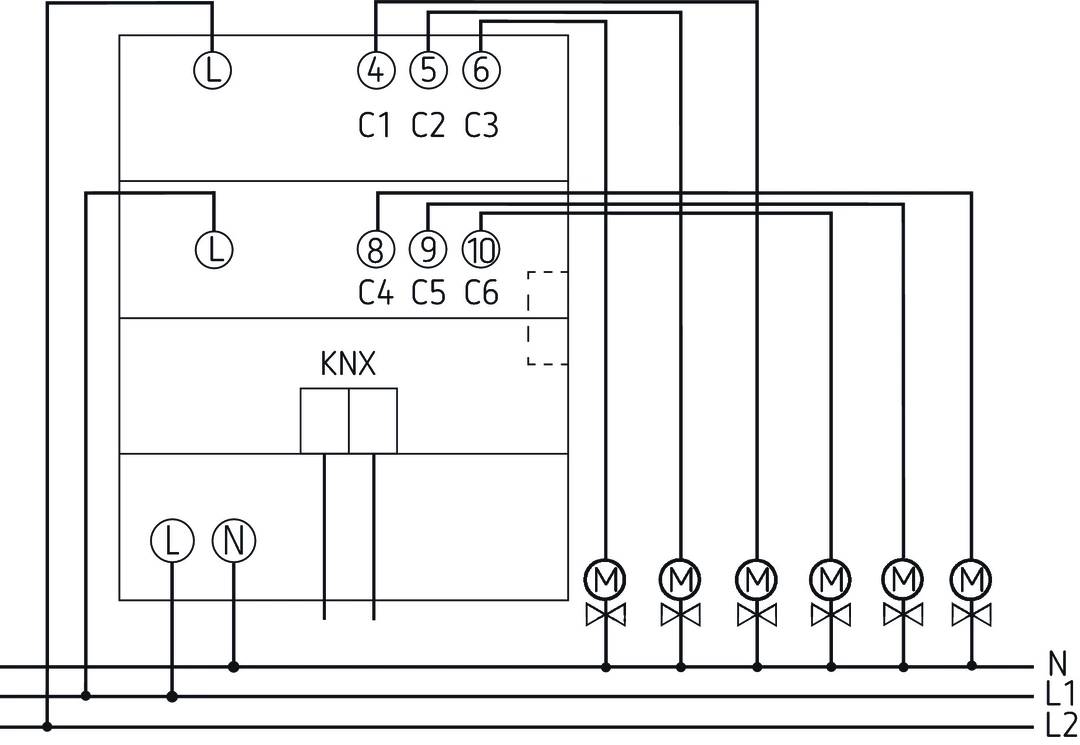

KNX heating actuator for 6 channels, basic unit, series mounting device, width 4 TE, expandable with HME 6 T up to 18 channels or combined with other devices of the MIX series. 6 potential free triac outputs (24 V-250 V AC), continuous and switching variable size as well as inclusion of boiler control selectable, additional circulating pump can be controlled, emergency program in case of bus or telegram failure, summer operation and valve protection, LED switching status display and hand switch
