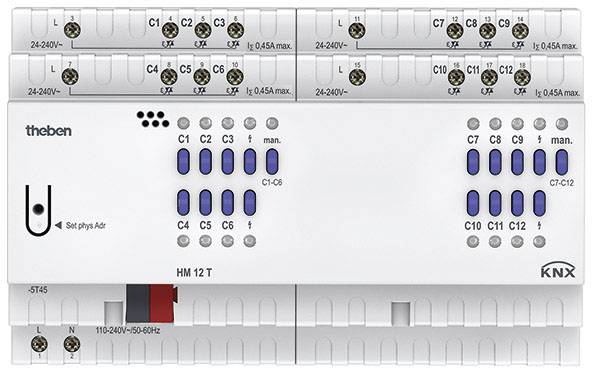

Theben KNX 4940245 Thermal actuator HM 12 T KNX
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Standby power: ~0.5 W
- Width: 8 TE
- Connection type: Screw terminals ; Bus connection: KNX Bus terminal
- Max. Cable cross-section: Solid: 0.5 mm² (Ø 0.8) to 4 mm² ; Wire with wire-end sleeve: 0.5 mm² to 2.5 mm²
- Switching output: Non-potential-free
- Output: Triac, 0.45 A
- Voltage Output: 24 V AC - - 240 V AC
- Frequency Output: 50 - 60 Hz
- Switching of different external conductors: Possible
- Ambient temperature: -5°C ... 45°C
- Product type
Thermal actuator
- Series
KNX
- Used at
Internal
IP20
- Operating voltage
240 V AC
0.5 W
- Data transfer (Smart Home)
Wired
- Channels
12
- Mounting type
DIN rail
- Factory colour
Multicolour
- Hub
Not required, optional for remote access
n.rel.
DRA (DIN-rail adapter)
TRUE
FALSE
FALSE
TRUE
8
FALSE
IP20
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2157627 Theben KNX 4940245 Thermal actuator HM 12 T KNX
User & Safety Instructions
User & Safety Instructions 2157627 Theben KNX 4940245 Thermal actuator HM 12 T KNX
Description
KNX heating actuator for 12 channels, modular installation device, width 8 TE, 12 potential-free triac outputs (24V-250V AC), continuous and switching manipulated variable as well as the inclusion of boiler control can be selected, in addition circulation pump controlled, Notprogramm at bus or telegram failure, summer operation and valve protection, LED status indicator and manual switch
This text is machine translated.
This text is machine translated.
