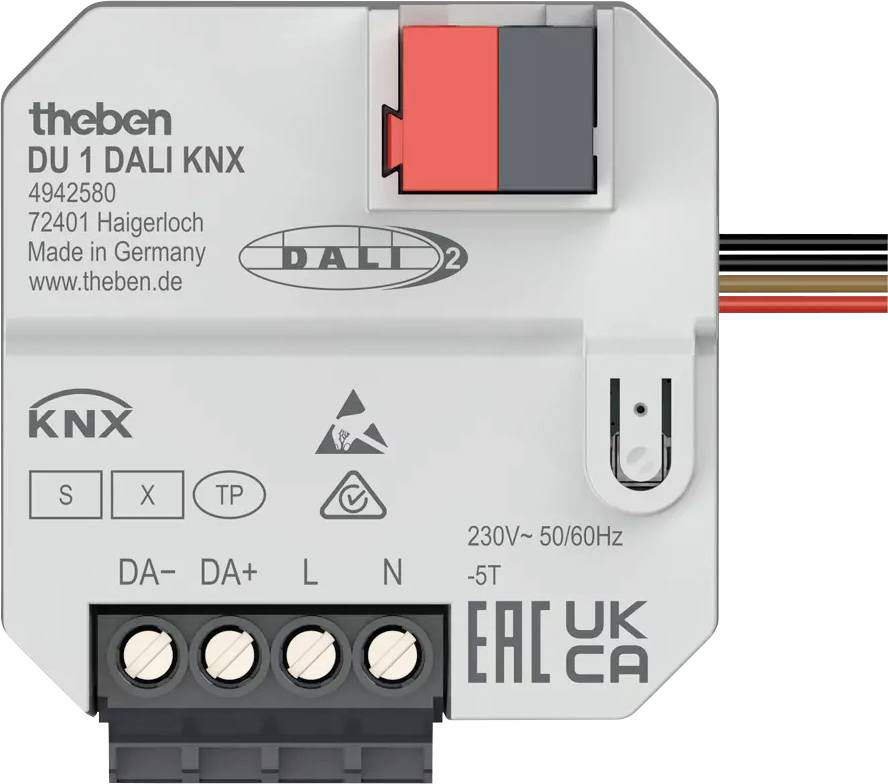

Theben KNX 4942580 Wireless DALI actuator DU 1 DALI KNX
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Wireless DALI actuator
- Series
KNX
- Operating voltage
230 V DC/AC
0.35 W
- Data transfer (Smart Home)
Wired
- Channels
1
- Frequency
868.3 MHz
- Mounting type
Flush mount
- Width
75 cm
- Height
115 cm
- Depth
40 cm
- Dim
(W x H x D) 75 x 115 x 40 cm
- Hub
Not required, optional for remote access
- Weight
0.038 kg
- Features
Signal input
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3358552 Theben KNX 4942580 Wireless DALI actuator DU 1 DALI KNX
User & Safety Instructions
User & Safety Instructions 3358552 Theben KNX 4942580 Wireless DALI actuator DU 1 DALI KNX
User & Safety Instructions 3358552 Theben KNX 4942580 Wireless DALI actuator DU 1 DALI KNX
Description
UP 1-way DALI actuator, KNX TP, Data Secure, DALI-2 certified, interface between DALI and KNX bus system, simple commissioning of up to 30 ECGs in broadcast mode, control of RGB, RGBW, Tunable White or conventional lamps, support for DT-8 lights, easy replacement of ECGs in case of error, Universal mounting thanks to particularly compact housing, 2 binary inputs for potential-free contacts such as buttons, switches, window contacts, temperature sensor (input I2), the binary input I1 is assigned to the output at the factory (function test and operation even without programming), integrated temperature monitoring for increased operating safety e.g. in case of overload, secure communication by support of KNX Data Secure
