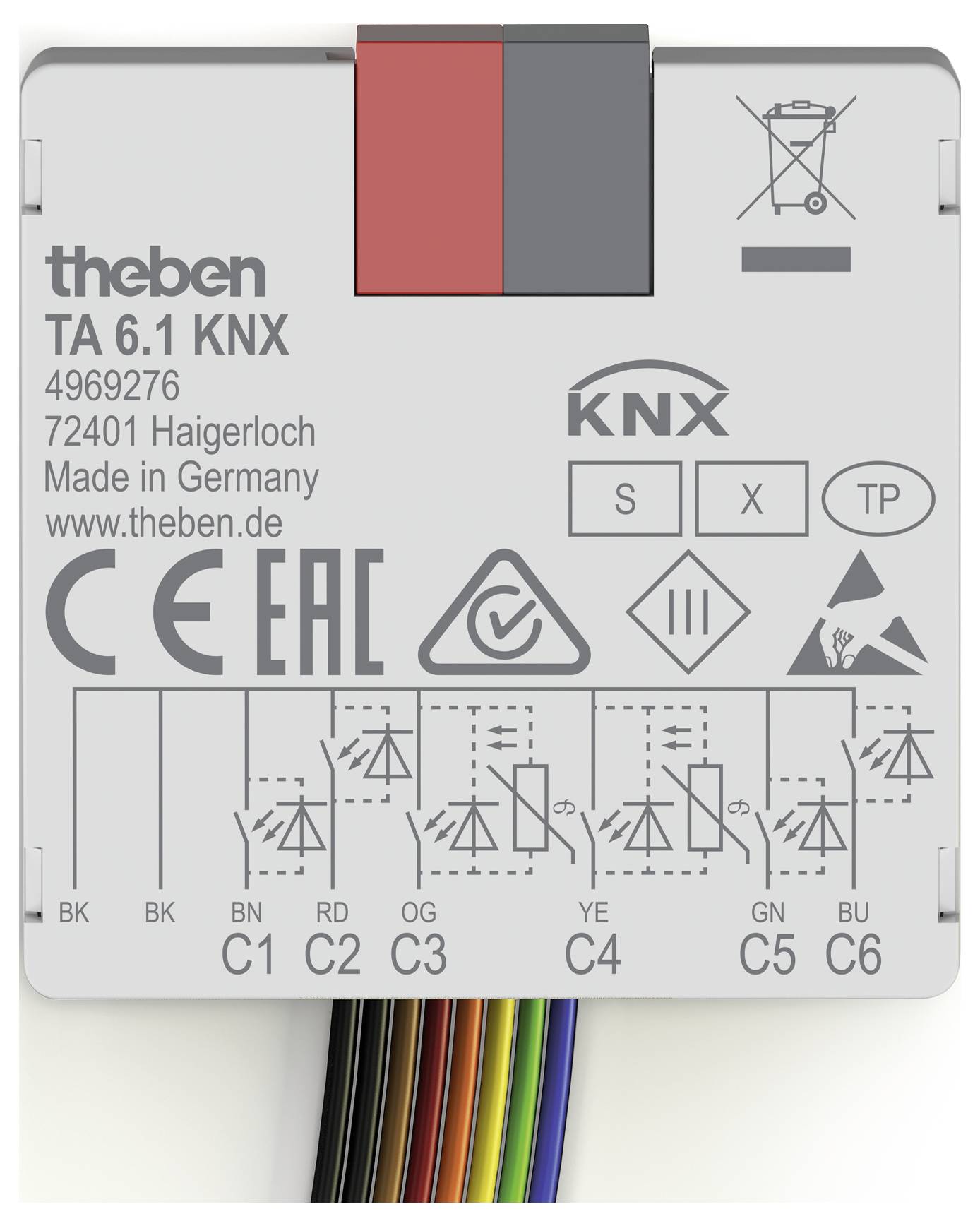

Theben KNX 4969276 Interface TA 6.1 KNX
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Protection class (IP) IP20
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With LED indicator: No.
- With bus connection: Yes
- Bus module removable: No.
- Controlling LED: Yes
- Number of inputs: 6
- Input voltage: 5 V
- Type of input voltage: AC/DC
- External query voltage required: Yes
- Min Depth of the device socket 13 mm
- Product type
Interface
- Series
KNX
- Operating voltage
5 V DC/AC
- Data transfer (Smart Home)
Wired
- Channels
6
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
- Features
Test function
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552403 Theben KNX 4969276 Interface TA 6.1 KNX
Description
6-way binary input push button interface, KNX Data Secure, 8-pin cable connection, NTC inputs for actual temperature recording, can be installed with conventional buttons/switches in flush-mounted sockets, free assignment of functions: Switches/buttons, dimming, blinds, encoders, counters, Sequences, temperature measurement, LED control, Flexible LED control, thanks to increased output current of 3 mA, commercially available LEDs and low-current LEDs can be controlled, inputs can be re-parameterized to outputs with parameterizable Blink and pulse function, identification of the wire pairs via color coding, lateral recesses on the housing for the mounting claws of the switches/buttons
