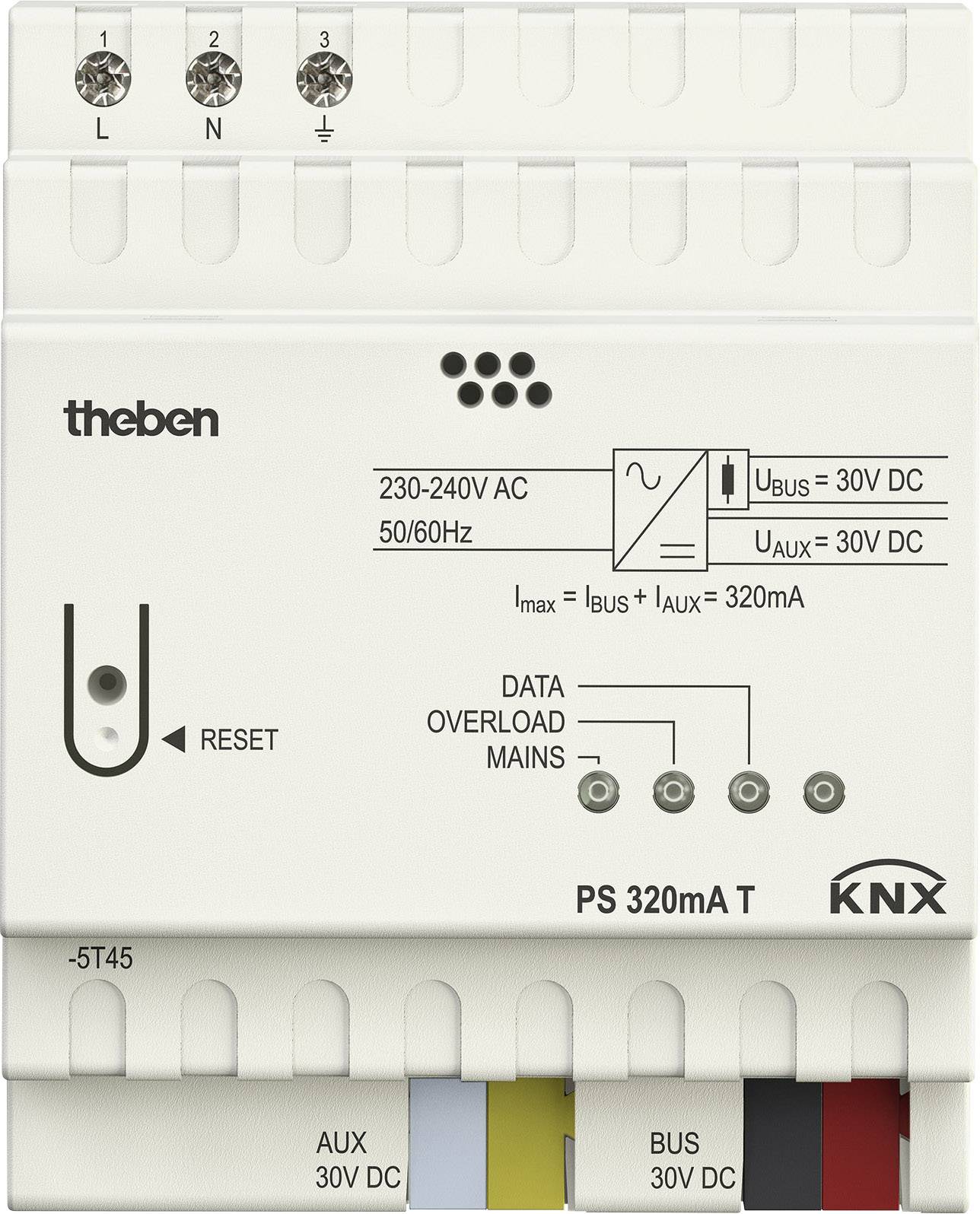

Theben KNX 9070957 Voltage supply PS 320 mA T KNX
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Stand-by output 0.8 W
- Width: 4 TE
- Installation type: DIN rail
- Type of connection: KNX Bus Terminal
- KNX output: 1 line with built-in choke
- KNX-rated voltage: 30 V DC, ± 2 V, SELV
- KNX nominal current 320 mA
- Short-circuit current: max. 0.8 A
- Mains failure bridging time: min. 130 ms
- Ambient temperature: -5°C ... 45°C
- Product type
Voltage supply
- Series
KNX
IP20
- Operating voltage
240 V AC
0.8 W
- Data transfer (Smart Home)
Wired
- Channels
1
- Mounting type
DIN rail
- Hub
Not required, optional for remote access
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2157920 Theben KNX 9070957 Voltage supply PS 320 mA T KNX
User & Safety Instructions
User & Safety Instructions 2157920 Theben KNX 9070957 Voltage supply PS 320 mA T KNX
Description
320 mA power supply KNX, with integrated reactor is the bus line from the KNX power supply decoupled, with reset function (20 sec.), connecting the power supply 30 V DC via bus terminal, additional auxiliary voltage connection 30 V DC
