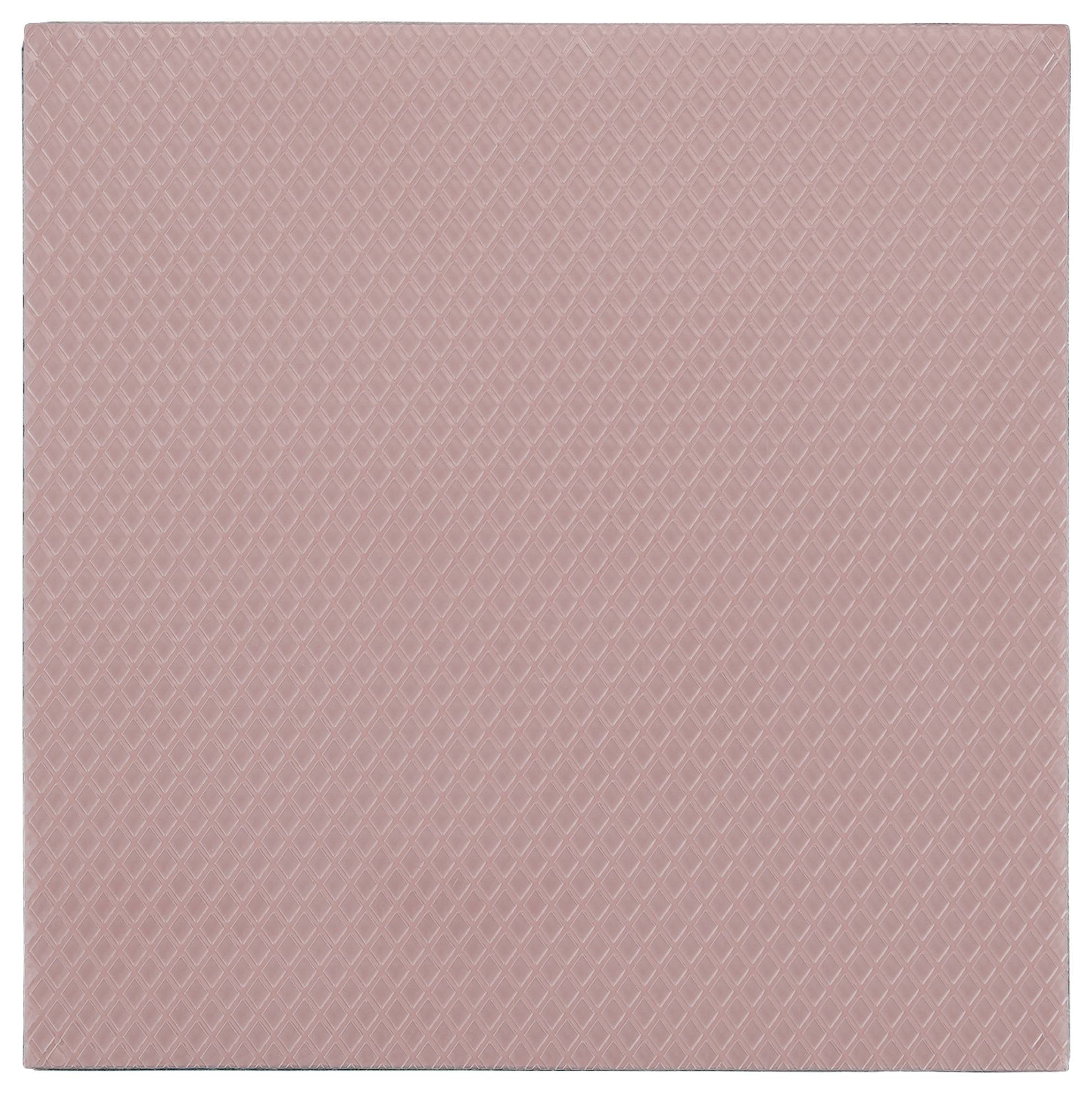

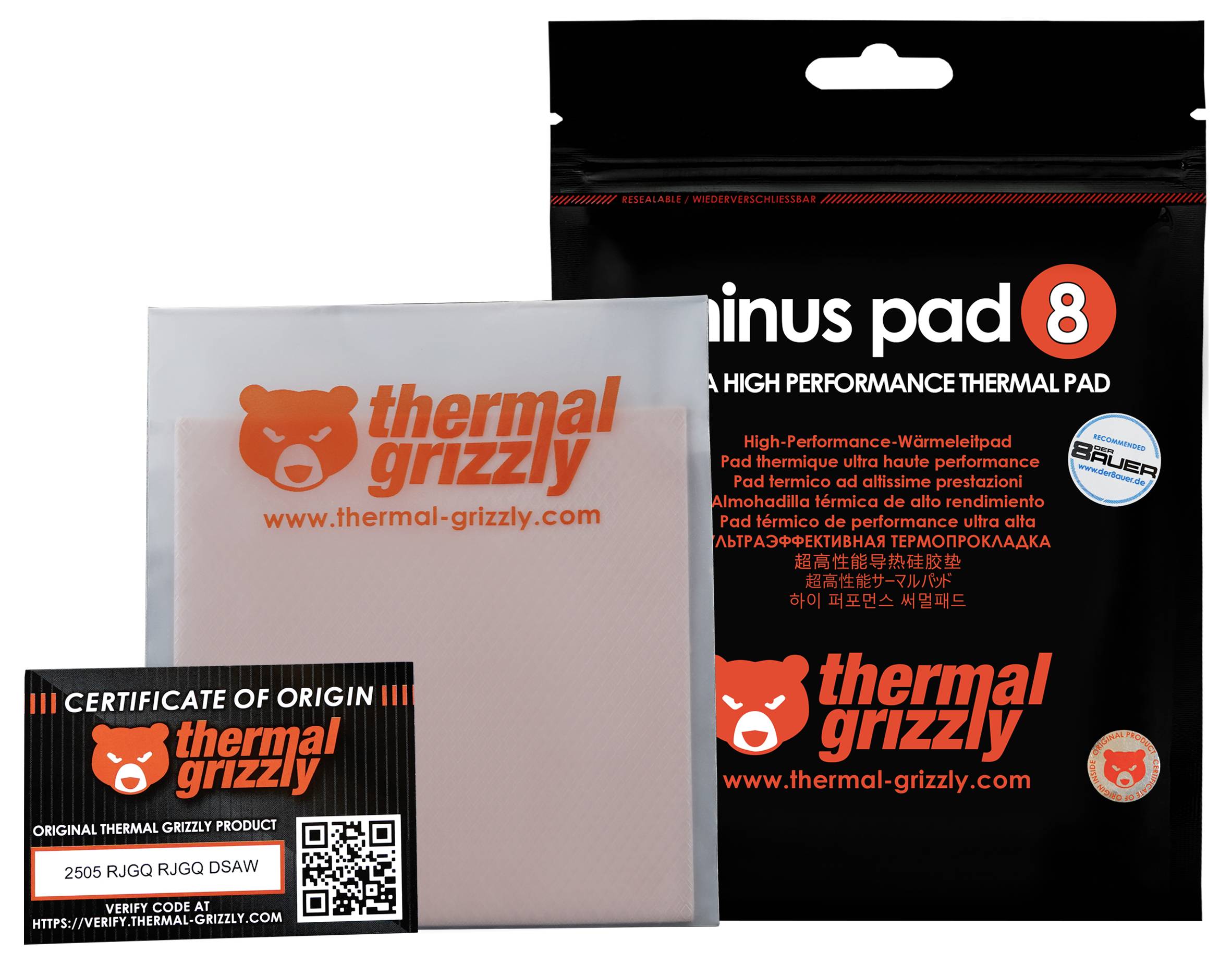

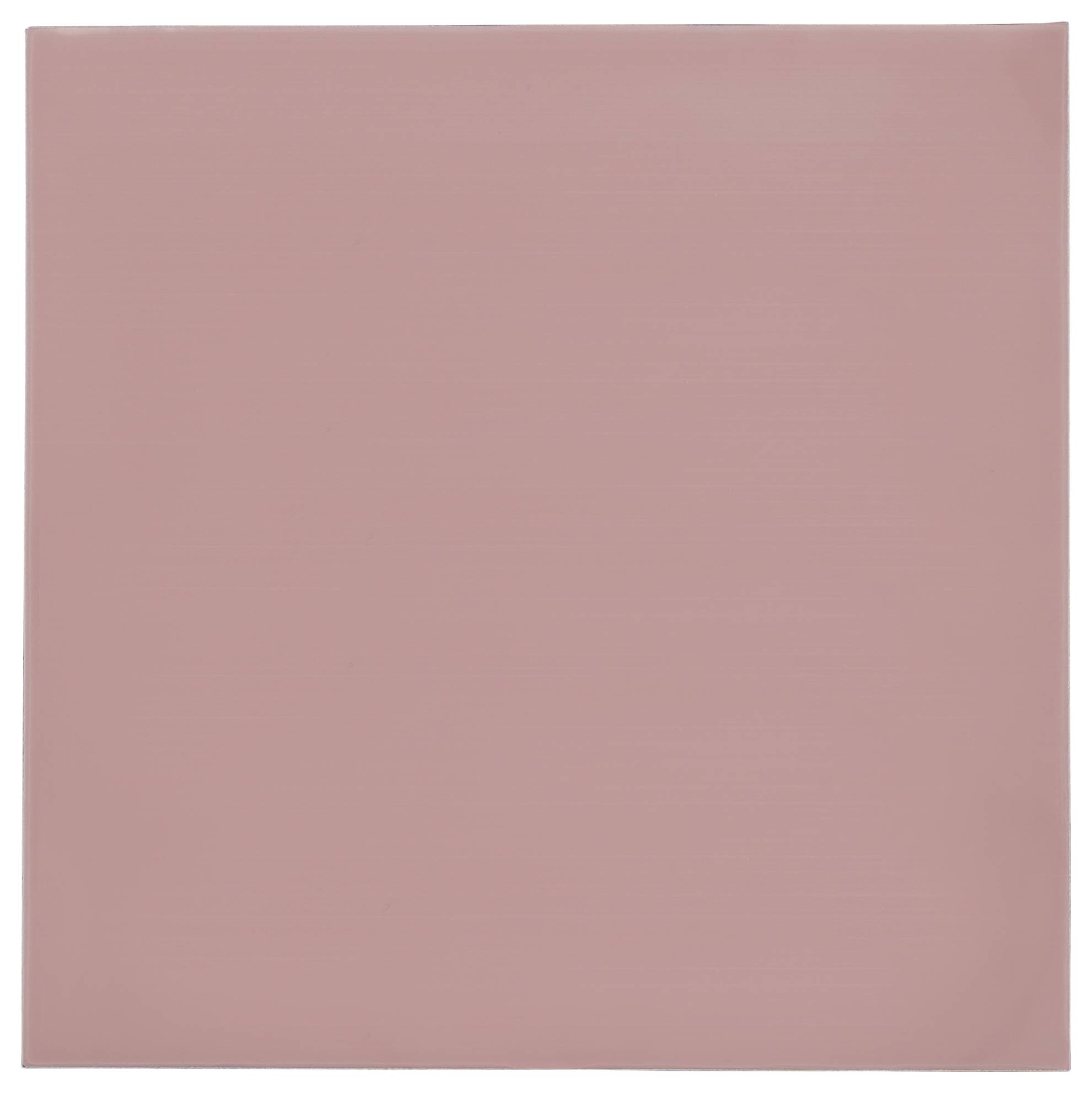

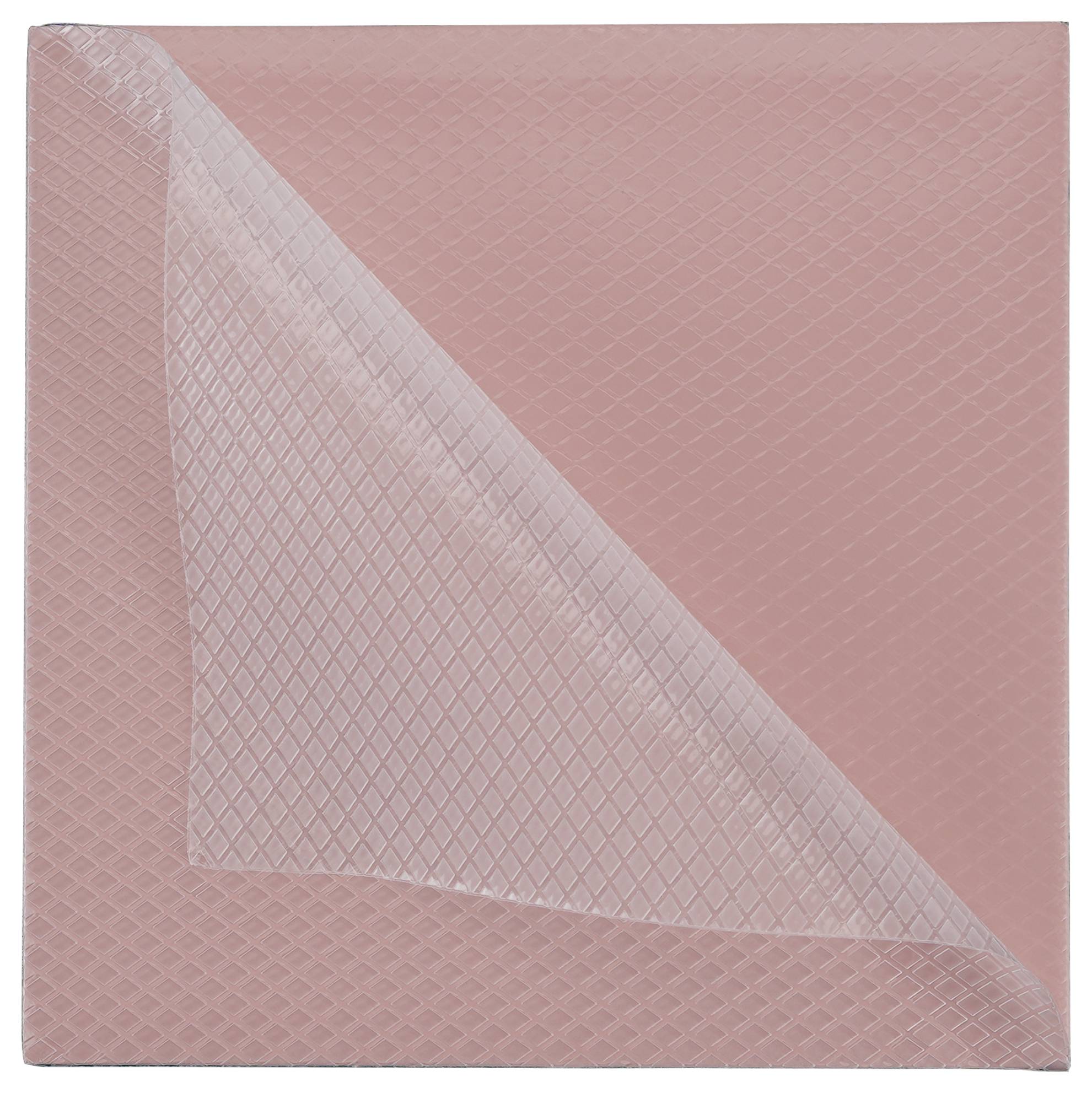

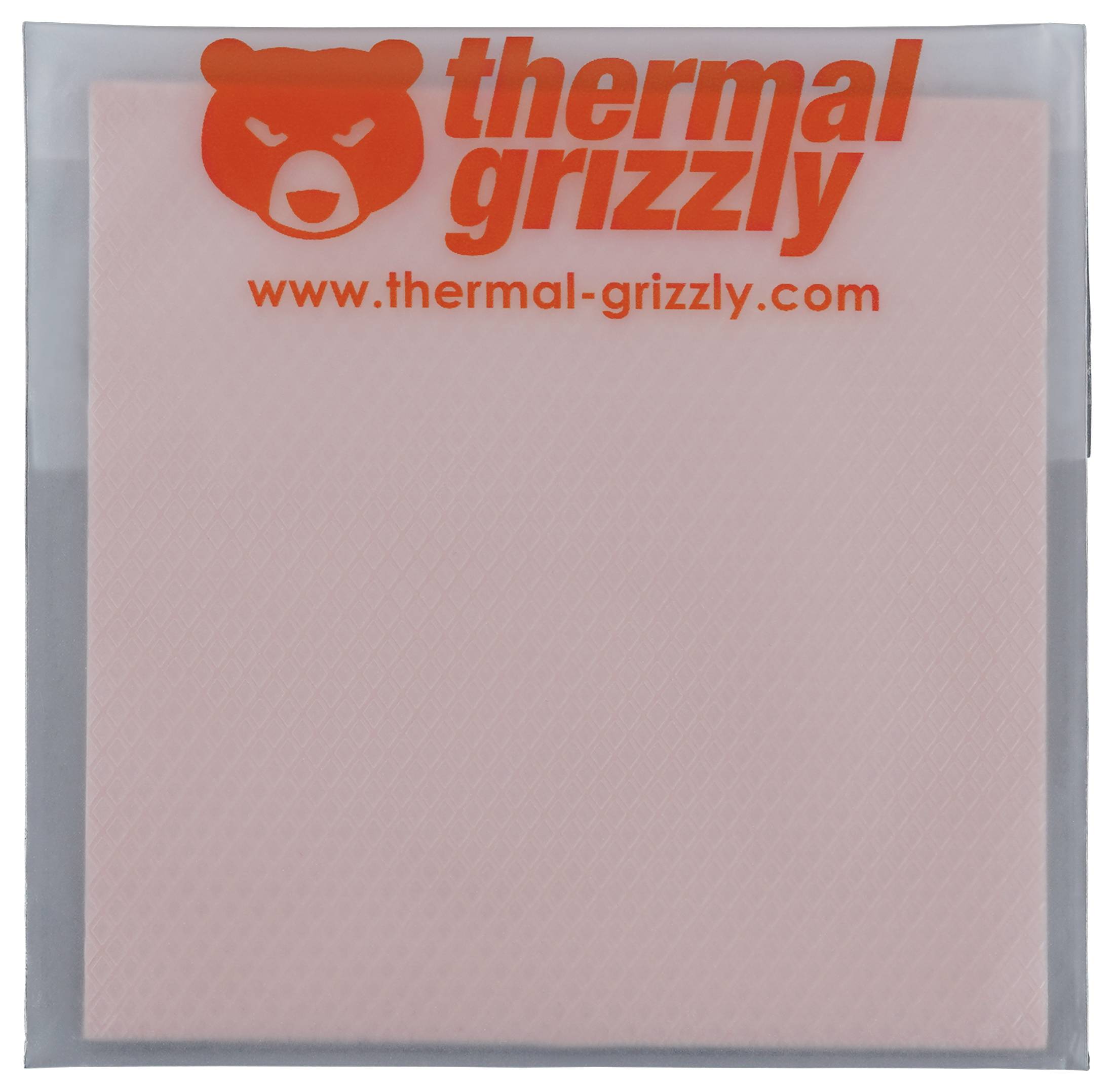

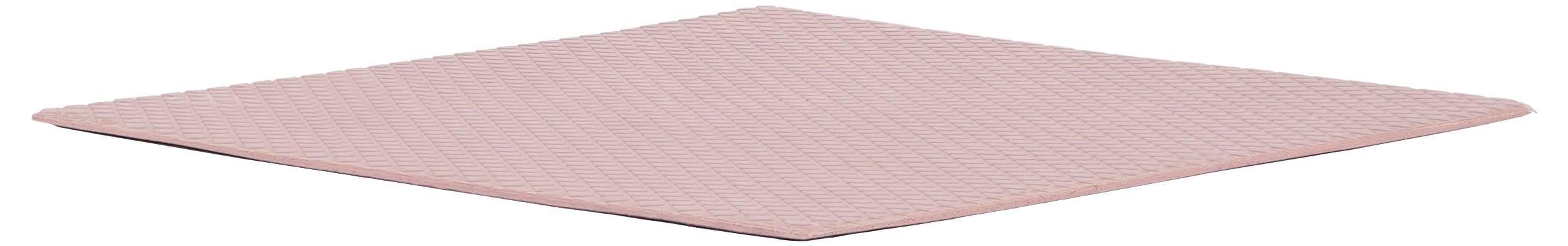

Thermal Grizzly Minus Pad 8 Electrically insulating Thermally conductive pad non-conductive 0.5 mm (L x W) 100 mm x 100
Product type
Thermally conductive pad
Material thickness
0.5 mm
Length
100 mm
Width
100 mm
Max. temperature
250 °C
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- High heat conductivity
- High compression
- Electrically insulating
Technical specifications
- Electrically insulating: Yes(8KV/mm ASTM D149)
- V-0 combustibility
- Hardness: Shore 00-60
- Product type
Thermally conductive pad
- Type
Electrically insulating

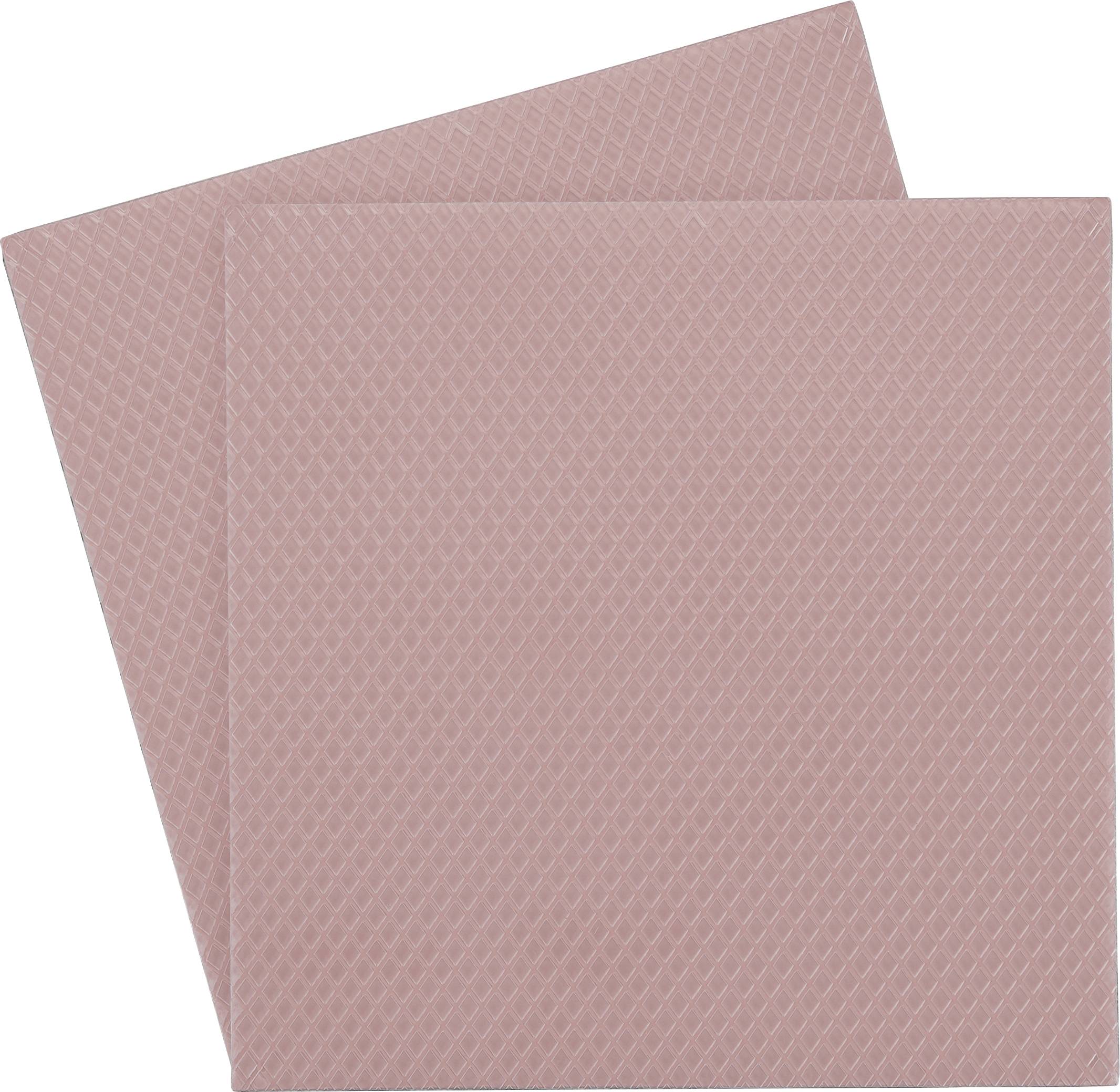

- Content
2 pc(s)
- Features
non-conductive
- Dielectric strength
8 kV/mm
- Factory colour
Rose
- Material thickness
0.5 mm
- Dim
(L x W) 100 mm x 100 mm
- Length
100 mm
- Width
100 mm
- Max. temperature
250 °C
- Min. temperature
-100 °C
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3489175 Thermal Grizzly Minus Pad 8 Electrically insulating Thermally conductive pad non-conductive 0.5 mm (L x W) 100 mm x 100
User & Safety Instructions
User & Safety Instructions 3489175 Thermal Grizzly Minus Pad 8 Electrically insulating Thermally conductive pad non-conductive 0.5 mm (L x W) 100 mm x 100
Description
The high-performance thermal conductivity pads of the minus pad 8 series have a very elastic and adaptable surface at very high heat conductivity.
Even the smallest component differences can thus be well balanced.
