Name: TP-LINK Archer NX500 V1 Wi-Fi router 2.4 GHz, 5 GHz
Brand: TP-LINK
SKU: 3799876

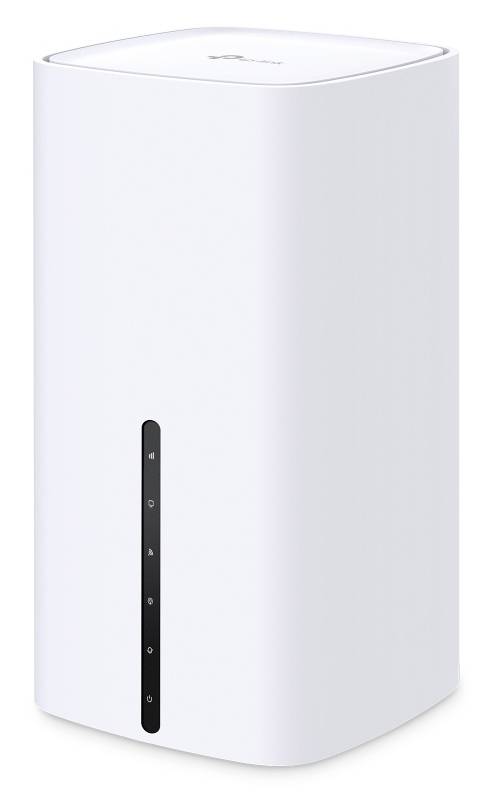

White cylindrical home appliance with a black vertical control panel and indicator lights on the front.

White air purifier standing upright with a slim black front control panel and top air outlet<br>

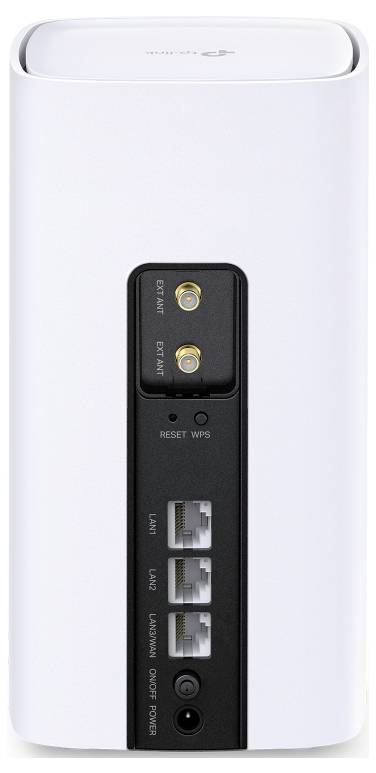

White wireless router with two EXt and one Giga ports, three LAN ports, reset/WPS buttons, and power input on the front panel.

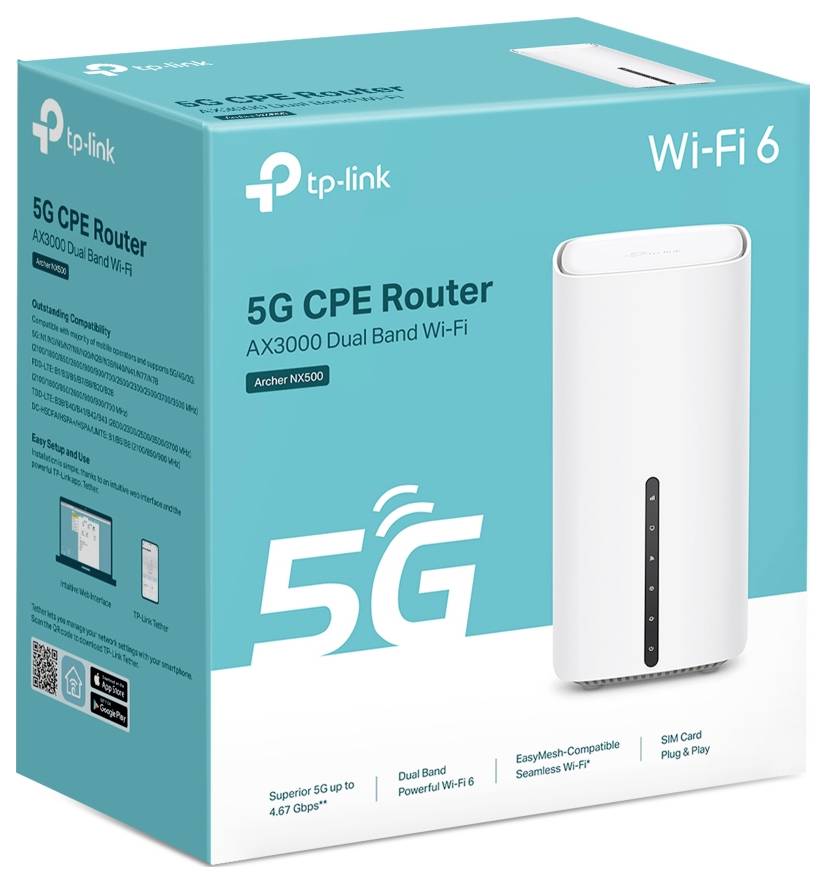

TP-Link Archer NX500 5G CPE Router box, labeled Wi‑Fi 6, AX3000 dual band, with a white router pictured on the front.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

TP-LINK Archer AX3000 Gigabit Ethernet Dual Band (2.4 GHz/5 GHz) 5G white

Desktop-/POLE-Router White
Dual band (2.4 GHz/5 GHz) Wi-Fi 6 (802.11ax) 3000 Mbit/s
Gigabit Ethernet
Ethernet WAN SIM card slot
Number of Ethernet LAN connections (RJ-45): 2
Quality of Service (QoS) support
This text is machine translated.

Technical specifications

Wi-Fi band Dual (2.4 GHz/5 GHz)
WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
NanoSIM card type
Product type: Desktop/pole router
Supports Windows operating systems: Windows 10 7, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 7 IOT Core, Windows 2000 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 Professional, Windows 10, Windows 7 Enterprise, Windows 2000 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64,Windows 7 8.1 Professional,Windows 7 8.1 Professional x64,Windows 7 8.1 Starter,Windows 8 Starter x64,Windows 8 Ultimate,Windows 8 Ultimate x64,Windows 8 x64,Windows 8,Windows 8 Enterprise,Windows 7 Enterprise x64,Windows 8.1 Pro x64,Windows 7 Enterprise,Windows 8.1 Enterprise x64,Windows 7 Pro,Windows 8.1 Pro x64,Windows 7 x64,Windows 98SE,Windows NT,Windows RT 8.1,Windows Vista business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home x64,Windows Vista Ultimate,Windows Vista x64,Windows Vista x64,Windows XP, Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64

Product type: Wi-Fi router

Type: Archer NX500 V1

Function: Router

Wi-Fi standard: IEEE802.11a
IEEE802.11ac
IEEE802.11ax
IEEE802.11b
IEEE802.11g
IEEE802.11n

Dual Band compatibility: 2.4 GHz and 5 GHz

Wi-Fi frequency band: 2.4 GHz
5 GHz

Wi-Fi speed 2.4 GHz: 574 MBit/s

Wi-Fi speed 5 GHz: 2402 MB/s

WPS compatible: Yes

No. of antennas: 10 x

10/100/1000 Mbps ports: 2 x

Width: 99 mm

Height: 99 mm

Depth: 190 mm

Weight: 610 g

Factory colour: White

Max. output current: 2 A

Output voltage: 12 V

Power supply (details): 100 - 240 V

Safety: 64-bit WEP
128-bit WEP
WPA
WPA-PSK
WPA2
WPA2-PSK

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Ethernet LAN: yes

Storage relative humidity (H-H): 5 - 90 %

URL filtering: yes

Universal Plug and Play (UPnP): yes

Guest access: yes

Dynamic DNS (DDNS): yes

Wi-Fi Multimedia (WMM)/(WME): yes

USB port: no

Filtering: yes

DSL WAN: no

Ethernet WAN: yes

SIM card slot: yes

WLAN data transfer rate (max): 3000 Mbit/s

WLAN data transfer rate (first band): 574 Mbit/s

WLAN data transfer rate (second band): 2402 Mbit/s

Quality of Service (QoS) support: yes

DHCP client: yes

DHCP server: yes

Reset button: yes

Customs product code (TARIC): 8517620000

Port triggering: yes

Number of guest networks (5 GHz): 1

Number of guest networks (2.4 GHz): 1

Parental control: yes

Maximum Tx power (2.4 GHz): 20 dBmW

Maximum Tx power (5 GHz): 30 dBmW

Quick installation guide: yes

Number of products included: 1 Stück(e)

DMZ support: yes

IP address filtering: yes

Port forwarding: yes

Operating relative humidity (H-H): 10 - 90 %

DoS attack prevention: yes

Storage temperature (T-T): -40 - 70 °C

Package weight: 1.27 kg

Mac compatibility: yes

Built-in display: no
