TP-LINK TL-PA8033P KIT V4 Powerline starter kit TL-PA8033P KIT 1300 MBit/s
EAN:
Part number:
Item no:
Highlights & Details
TP-LINK AV1300-Gigabit Powerline adapter KIT with socket
- 1300 Mbit/s
- Gigabit Ethernet
- Built-in socket
- White
Technical specifications
- Maximum data transfer rate of 1300 Mbit/s.
- Product type
Powerline starter kit
- Powerline data transfer rate
1300 MBit/s
- No. of LAN ports
3 x
- Built-in socket
Yes
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
42 mm
- Height
131 mm
- Depth
72 mm
- Factory colour
White
- 10/100/1000 Mbps ports
3 x
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Built-in power socket
yes
- Ethernet LAN
yes
- Storage relative humidity (H-H)
5 - 90 %
- Quantity per pack
2 Stück(e)
- Operating relative humidity (H-H)
10 - 90 %
- Storage temperature (T-T)
-40 - 70 °C
- Package weight
938 g
- Current
16 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3799930 TP-LINK TL-PA8033P KIT V4 Powerline starter kit TL-PA8033P KIT 1300 MBit/s
Description
AV1300 Powerline KIT
Move your network to a new level
Upgrade up to 1300 Mbit/s!
Perfect for bandwidth-intensive applications
The TL-PA8033P KIT supports the new Powerline standard Homeplug AV2 with ultra-fast data transfers of up to 1300 Mbit/s. Thanks to the 2*2 MIMO technology, all three lines in your circuit are used for transmission. This achieves a significantly higher transfer rate, so that you can benefit from a stable signal for uninterrupted HD video streaming and online gaming – even in secluded rooms or on the attic.
Neutral/earthing conductor with beamforming
Greater range
MIMO technology with beamforming maximizes the performance on the individual conductors. This improves the range, especially for distant sockets.
Higher transfer rates and more stable connections
The TL-PA8033P KIT uses all three lines to provide parallel data streams: Phase, neutral and earthing. Thus you benefit from much higher transfer rates and a much more stable connection.

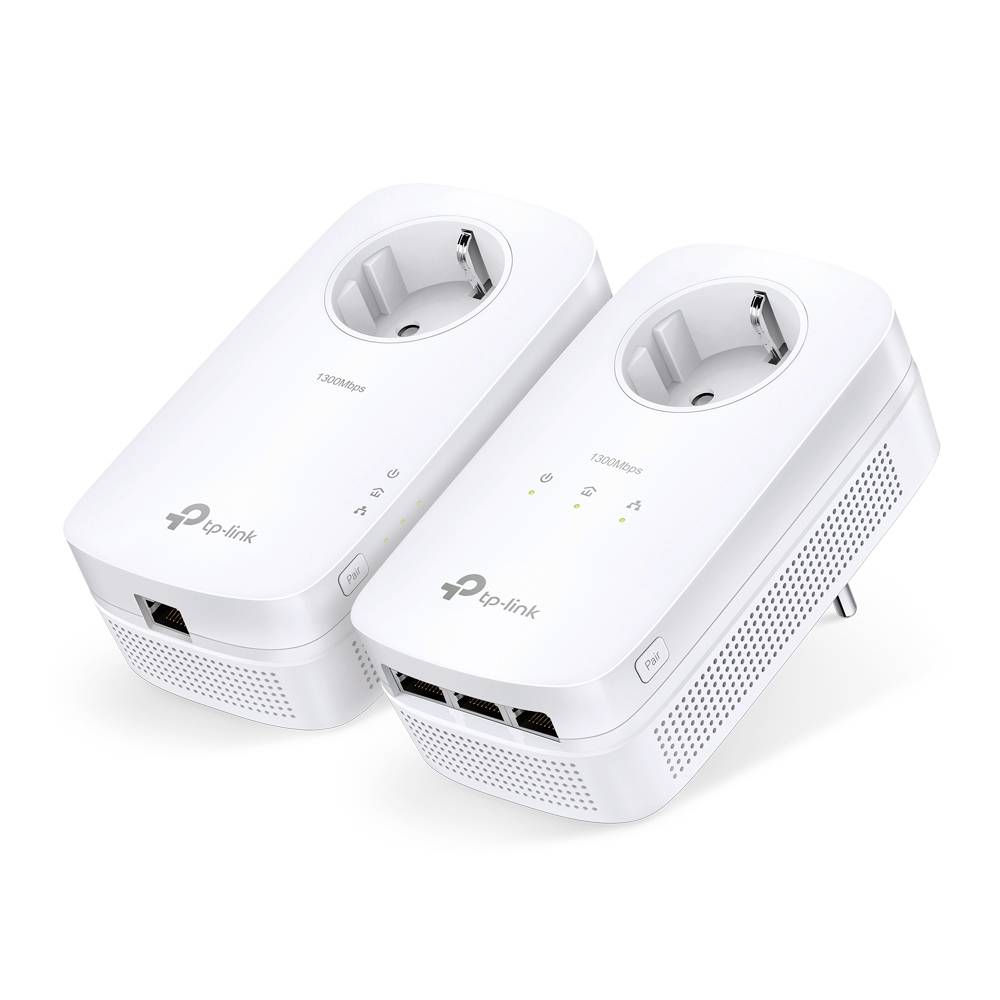

3 Gigabit LAN ports
For maximum connectivity
Three Gigabit LAN ports per adapter make the TL-PA8033PKIT an ideal partner for your home entertainment. Connect up to five network devices such as NAS, Smart TV, desktop PC, game consoles and more by a LAN cable to the adapter and they are already integrated into the powerline network.
Plug & Play
No configuration required

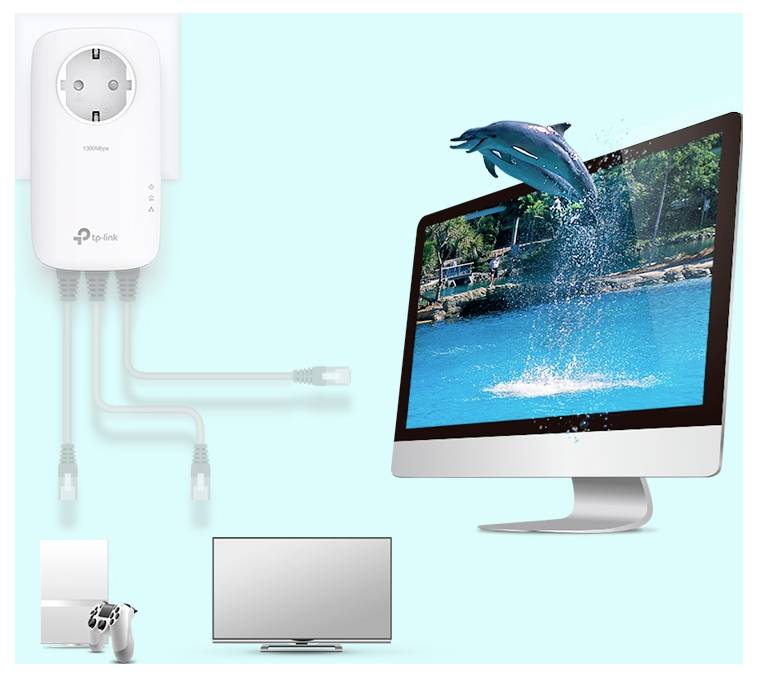

Connect the first Powerline adapter to the router and insert another Powerline adapter in the room where you need a network connection. You can then connect your network devices, e.g. PCs, Smart TVs or games consoles. That's it.
Integrated sockets for still
More flexibility
The integrated socket with a power of up to 16A/3500W can be used like a normal socket. It allows you to reconnect the device previously installed in place, so that you don't lose any slot. The integrated noise filter reduces the susceptibility of Powerline transmission to interference.
Power savings
Up to 85%
The TL-PA8033P KIT belongs to a new generation of Powerline adapters and is significantly more power saving. If no data is transferred for a certain period of time, the device automatically switches to power-saving mode and then saves up to 85% energy.
This text is machine translated.
Features
- Up to 1.3 Gbit/s according to the new Standard Homeplug AV2 via existing power lines, neutral and earthing connection
- 2x2 MIMO with beamforming ensure a large range, high transfer capacity and a stable connection
- Three Gigabit LAN ports for connecting televisions, game consoles, etc.
- The integrated socket ensures that no slot is lost
- Easy installation thanks to Plug & Play, no configuration required
- Patented power-saving mode reduces the power consumption by up to 85%
