Trilux 6788051 3331 G2 D3 #6788051 LED ceiling light LED (monochrome) LED 32 W Silver

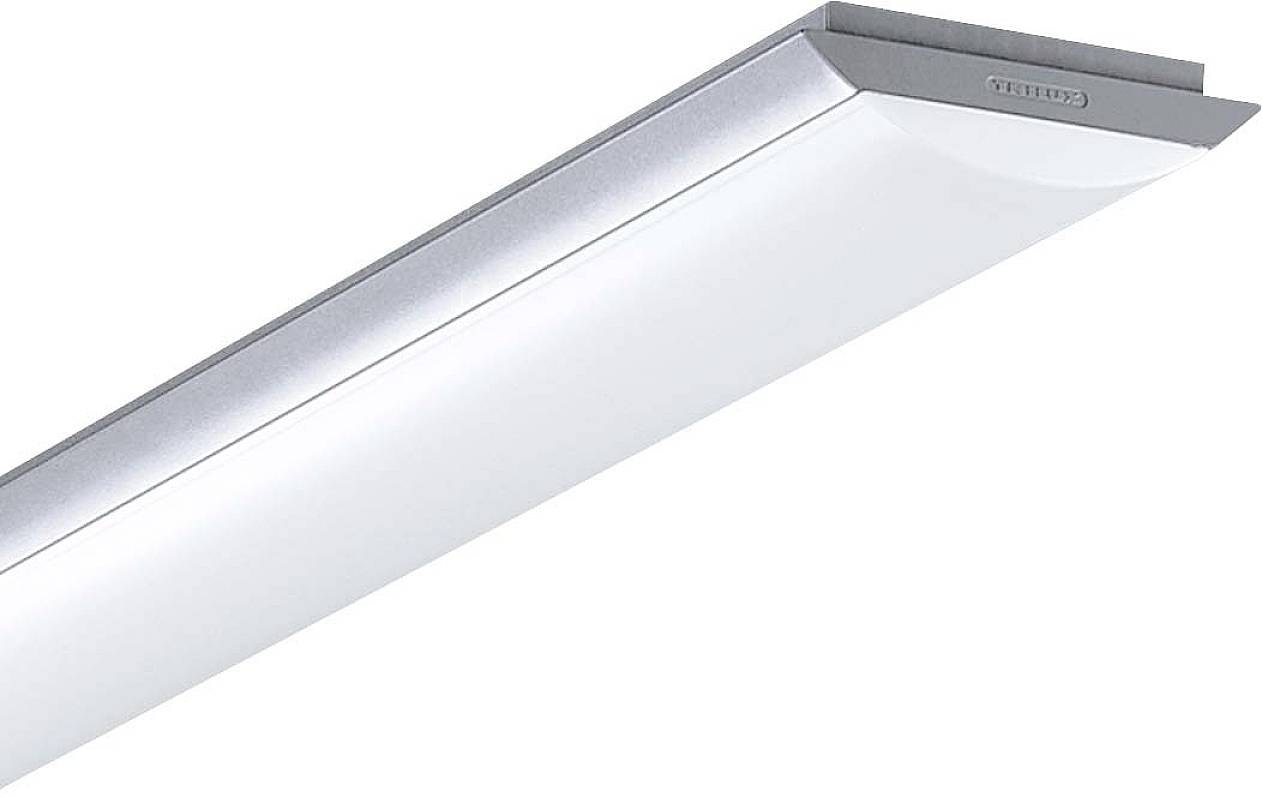

A rectangular, modern LED ceiling light in silver and white, mounted at an angle to the camera, suitable for office lighting.
Technical drawing of a component in top view with dimensional specifications: Length 1,497 mm, Width 60 mm, additional measurements and details marked.
1/2
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 32 W
  • Total luminous flux= 3600 lm
  • Colour temperature= 3000 K
  • White

Technical specifications

Dim

(L x W x H) 1494 x 212 x 70 mm

Operating voltage

230 V

No. of bulbs

1

Product type

LED ceiling light

Width

212 mm

Bulb type

LED (monochrome)

Height

70 mm

LED

Length

1494 mm

Rating per bulb

32 W

32 W

Light features

Incl. light sensor

Suitable for wall mounting

Usable as a pendant light

Ceiling mount option

Recess mount option

Suitable for wall mounting

Dimmable

Protection class

I

IP50

Factory colour

Silver

Material

Steel

n.rel.

Colour rendering index

80-89

Colour

White

Light bulb included

Yes

3000 K

Colour temperature (max.)

3000 K

Colour temperature (min.)

3000 K

Colour temperature range

3000 - 3000 K

Total luminous flux

3600 lm

3600 lm

Recess length

1472 mm

Recess width

190 mm

Recess depth

22 mm

Documents & Downloads

Datasheet

Datasheet 2607867 Trilux 6788051 3331 G2 D3 #6788051 LED ceiling light LED (monochrome) LED 32 W Silver

User & Safety Instructions

User & Safety Instructions 2607867 Trilux 6788051 3331 G2 D3 #6788051 LED ceiling light LED (monochrome) LED 32 W Silver
