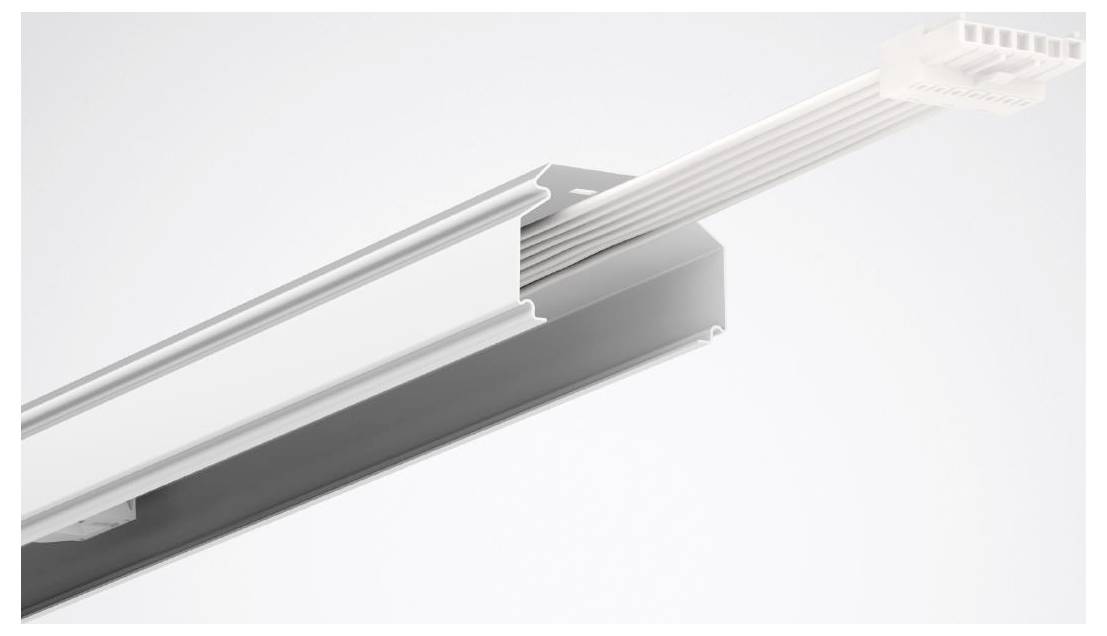

Image similar
Trilux 7275100 07650 L225 #7275100 Support 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Height: 41 mm
- Width 63 mm
- Design: 1-lang
- Material: Steel
- Colour: white
- Protection class (IP) IP20
- Protection class: I
- Length: 2213 mm
- With wiring: Yes
- Suitable for cable channel: No.
- Variable rack distance: No.
- With cable duct: No.
- Electrical connection with connector system: No.
- Integrated electromechanical coupling: No.
- Number of wiring wires: 14
- Cross-section of wiring wires: 4 mm²
- Product type
Support
IP20
n.rel.
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3540617 Trilux 7275100 07650 L225 #7275100 Support 1 pc(s)
Description
Carrier profile for E-Line 7651 Fix LED-Light band-single lamps or Lightband termination. In combination with a separate to order optical band-coupling also suitable for light band-applications. Length of support profile 2212.5 mm With 7-conductor through wiring for distributing the circuits as well as additional 7-conductor through wiring for supporting additional applications in emergency light or light management. With 1 separating connector upper section for tool-free, electrical connection of device carriers. With two 7-pin pairs of sockets and connectors for quick electrical connection and contact-proof termination of the cable ends. The heat-resistant through-wiring is complete in the factory with all the necessary components. All the connections are fast connection protected against polarity reversal. An upper opening (M20/PG13.5) allows the infeed to take place without accessories. The load profile body is made of hot-dip galvanized steel plate White surface coating.
