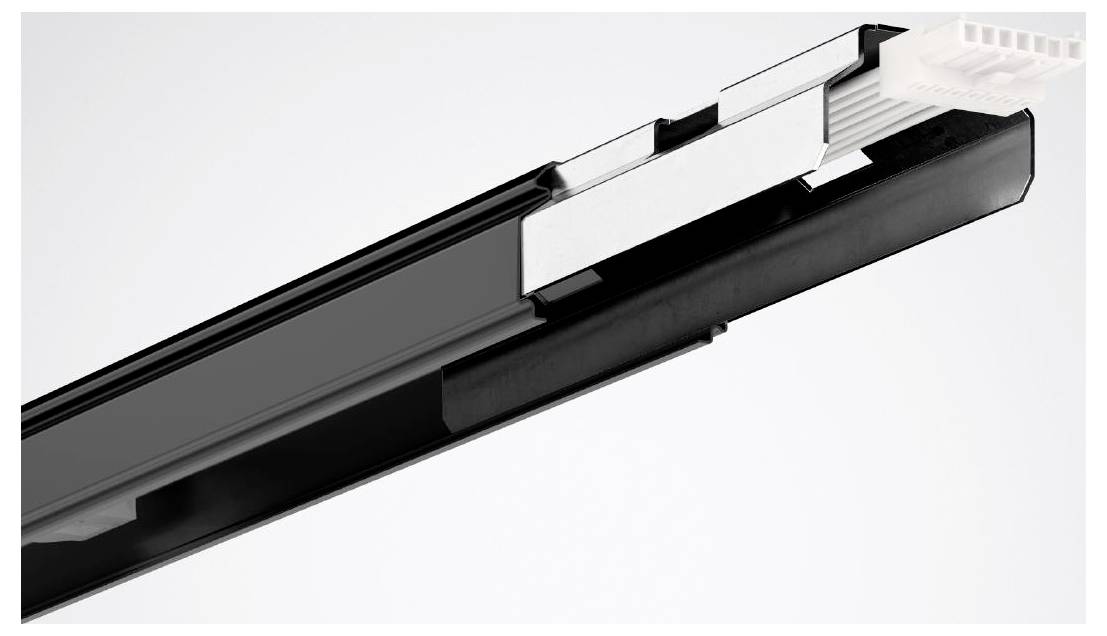

Name: Trilux 7351700 07650 L225 7LV 37 05 Support 1 pc(s)
Brand: Trilux
SKU: 3542059

Technical specifications

Height: 41 mm
Width 63 mm
Design: Other
Material: Steel
Colour, black
Protection class (IP) IP20
Protection class: I
Length: 2213 mm
With wiring: Yes
Suitable for cable channel: No.
Variable rack distance: No.
With cable duct: No.
Electrical connection with connector system: No.
Integrated electromechanical coupling: Yes
Number of wiring wires: 7
Cross-section of wiring wires: 2.5 mm²

Product type: Support

: IP20

: n.rel.

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3542059 Trilux 7351700 07650 L225 7LV 37 05 Support 1 pc(s)

Description

For simple installation a pre-mounted light band coupling is included in the delivery for connection with another carry profile. Length of support profile 2212.5 mm With 7-conductor through wiring. Cable cross-section 2.5 mm2 With 6 separating connector upper parts for tool-free, electrical connection of the device carrier in each case at a distance of 370 mm. With pair of 7-pin socket plugs for the electrical quick connection as well as contact-proof closure of the cable ends. The heat-resistant through-wiring is complete in the factory with all the necessary components. All the connections are fast connection protected against polarity reversal. An upper opening (M20/PG13.5) allows the infeed to take place without accessories. The load profile body is made of hot-dip galvanized steel plate Black-coated surface.

This text is machine translated.
