Trilux 7429262 7429262 LED pendant light LED (monochrome) 49 W Silver
EAN:
Part number:
Item no:
Highlights & Details
Trilux LED-hanging lamp HCL, DALI, silver SFflow-act H #7429262
- Power= 49 W Total luminous flux= 6600 lm Colour temperature= 4000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Workplace training material - EN 12464-1: Yes
- Suitable for light band configuration: Yes
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Steel
- Housing color: Silver
- Cover material: Other
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: Electronic transformer
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: Yes
- DALI-2 dimming: Yes
- Dimmer DMX: No
- Dimming programmable: No.
- Dimmer DSI: No.
- Dim. RF: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Light distributor: Other
- Reflector: Without
- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct/indirect
- Direct/indirect shares separately adjustable: No.
- Energy efficiency of the permanently installed light bulb: Other
- Protection class (IP) IP20
- Protection class (NEMA): Other
- Impact strength: IK03
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": No.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 49 W
- Rated light current according to IEC 62722-2-1: 6600 lm
- Light color: White
- Light output 135 lm/W
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Glare limiter (UGR): 19
- Power factor 0.95
- Flicker value PST LM: 0.3
- Constant luminous flux regulation: No.
- Strobe effect value SVM: 0.3
- Adjustable color temperature: Continuously
- Luminous flux can be set continuously
- Adjustable radiation angle: No.
- Width 100 mm
- Height/depth 70 mm
- Length: 1413 mm
- With suspension: No.
- Pendant length: 2000 mm
- Number of pins: 5
- Connection type: Plug-in terminal
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: Yes
- Product type
LED pendant light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
49 W
- Light features
Selectable luminous flux
- Protection class
I
IP20
- Factory colour
Silver
- Material
Steel
- Weight
5.4 kg
- Dim
(L x W x H) 1413.00 x 100.00 x 70.00 mm
n.rel.
- Colour
White
- Light bulb included
Yes
4000 K
- Total luminous flux
6600 lm
6600 lm
- Width
100.00 mm
- Height
70.00 mm
- Length
1413.00 mm
- Depth
70 mm
- Rated luminous flux
6600 lm
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3154474 Trilux 7429262 7429262 LED pendant light LED (monochrome) 49 W Silver
Description

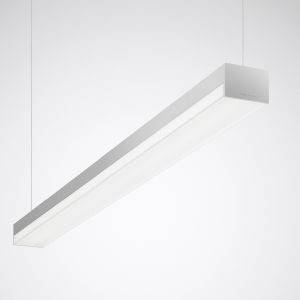

LED-suspended light for single or light band applications. Lamp with active-equipment for controlling the light color by means of separate control device. For suspended mounting. As a single light or in light band application. With highly efficient CDP microprismatic. The micro-structured PMMA prism surface of the optical system has a dazzle effect, is yellowing-free and does not fade. Prism structure inside, surface of the cover smooth from the room side. With direct/indirect light intensity distribution. With symmetric deep-wide radiating light intensity distribution. According to EN 12464-1-2-5 by limited luminance L = 1500 cd/m2 for radiation angle above 65 ° all round. The following specifications for the luminous flux and the system power capacity refer to the operation of this lamp with dynamically adjustable light color (HCL) in the warm-white light color mode (2700 K). Rated light current 6400 lm, rated power 53.00 W, maximum light yield 173 lm/W. Colour temperature variable (warm white - daylight white), color temperature variable (CCT) (2700 K - 6500 K), general color reproduction index (CRI) Ra > 80. Average measuring lifetime L80(TQ 25 °C) = 50,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). Light fixtures made of steel plate Surface silver-gray coated (RAL 9006). Dimensions (L x B) 1413 x 100 mm, lamp height 70 mm. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 5.4 kg With electronic operating device for switching, dimming and controlling the light color by means of DALI Device Type 8-compatible control device. Operating device in accordance with DALI 2 standard (EN 62386). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
