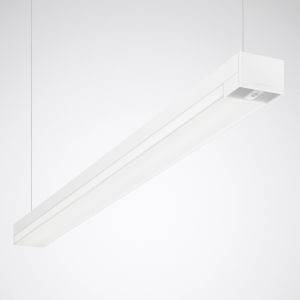

Trilux 7429462 7429462 LED pendant light LED (monochrome) 52 W White
EAN:
Part number:
Item no:
Highlights & Details
Trilux LED-hanging lamp HCL, DALI, ws SFflow-act H #7429462
- Power= 52 W Total luminous flux= 6600 lm Colour temperature= 4000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Workplace training material - EN 12464-1: Yes
- Suitable for light band configuration: Yes
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Steel
- Housing color: White
- Cover material: Other
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: Electronic transformer
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: Yes
- DALI-2 dimming: Yes
- Dimmer DMX: No
- Dimming programmable: No.
- Dimmer DSI: No.
- Dim. RF: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Light distributor: Other
- Reflector: Without
- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct/indirect
- Direct/indirect shares separately adjustable: No.
- Energy efficiency of the permanently installed light bulb: Other
- Protection class (IP) IP20
- Protection class (NEMA): Other
- Impact strength: IK03
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 52 W
- Rated light current according to IEC 62722-2-1: 6600 lm
- Light color: White
- Light output 127 lm/W
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Glare limiter (UGR): 19
- Power factor 0.95
- Flicker value PST LM: 0.3
- Constant luminous flux regulation: No.
- Strobe effect value SVM: 0.3
- Adjustable color temperature: Continuously
- Luminous flux can be set continuously
- Adjustable radiation angle: No.
- Width 100 mm
- Height/depth 70 mm
- Length: 1473 mm
- With suspension: No.
- Pendant length: 2000 mm
- Number of pins: 5
- Connection type: Plug-in terminal
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: Yes
- Product type
LED pendant light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
52 W
- Light features
Incl. sensor
- Pendulum length (max.)
2000 cm
- Protection class
I
IP20
- Factory colour
White
- Material
Steel
- Weight
5.6 kg
- Dim
(L x W x H) 1473.00 x 100.00 x 70.00 mm
n.rel.
- Coverage max. (width)
6 m
- Colour
White
- Light bulb included
Yes
4000 K
- Total luminous flux
6600 lm
6600 lm
- Width
100.00 mm
- Height
70.00 mm
- Length
1473.00 mm
- Depth
70 mm
- Rated luminous flux
6600 lm
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3153482 Trilux 7429462 7429462 LED pendant light LED (monochrome) 52 W White
Description
LED-suspended light for single or light band applications. Lamp with active-equipment for controlling the light color by means of separate control device. With integrated LiveLink WiFi control unit and LiveLink sensor for daylight dependent control and presence detection as well as WLAN module for a secure start-up and operation (WPA2 encryption). Pre-defined space configurations (use cases) with all planning-relevant data enable an easy and fast commissioning. Control of up to 64 DALI subscribers. The APP LiveLink installation for tablet PCs is used for commissioning. LiveLink sensor IR micro for daylight-dependent control and presence detection. Constant light control with switch-off function in sufficient daylight. Passive infrared presence sensor, with highly sensitive multi-segment pyrosensors, with adjustable delay time, either in automatic mode (automatic on, automatic off) or semi-automatic operation (automatic off, manual on). Special IQ-mode for automatic adjustment of the follow-up time to the use of space. Electrical supply via the DALI interface of the control unit. Occupies 2 DALI subscribers. Square detection, detection square presence max. 4 m x 4 m (16 m2) / radial max. 4 m x 4 m (16 m2) / tangential max. 6 m x 6 m (36 m2) at a recommended installation height of 2.8 m, permissible installation height 2.5 m to 4 m. For suspended installation. As a single light or in light band application. With highly efficient CDP microprismatic. The micro-structured PMMA prism surface of the optical system has a dazzle effect, is yellowing-free and does not fade. Prism structure inside, surface of the cover smooth from the room side. With direct/indirect light intensity distribution. With symmetric deep-wide radiating light intensity distribution. According to EN 12464-1-2-5 by limited luminance L = 1500 cd/m2 for radiation angle above 65 ° all round. The following specifications for the luminous flux and the system power capacity refer to the operation of this lamp with dynamically adjustable light color (HCL) in the warm-white light color mode (2700 K). Rated light current 6400 lm, rated power 56.00 W, maximum light yield 160 lm/W. Colour temperature variable (warm white - daylight white), color temperature variable (CCT) (2700 K - 6500 K), general color reproduction index (CRI) Ra > 80. Average measuring lifetime L80(TQ 25 °C) = 50,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). Light fixtures made of steel plate White surface coating (RAL 9016). Dimensions (L x B) 1473 x 100 mm, lamp height 70 mm. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 5.6 kg With electronic operating device for switching, dimming and controlling the light color by means of DALI Device Type 8-compatible control device. Operating device in accordance with DALI 2 standard (EN 62386). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
