Trilux 7535740 ArimoFit M48#7535740 LED ceiling light LED (monochrome) LED 42 W White

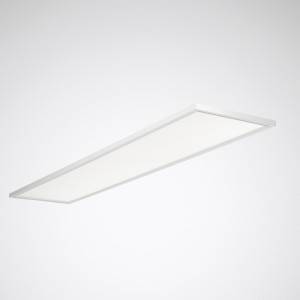

A rectangular LED panel illuminates evenly in a minimalist environment. Main light source in a contemporary room.

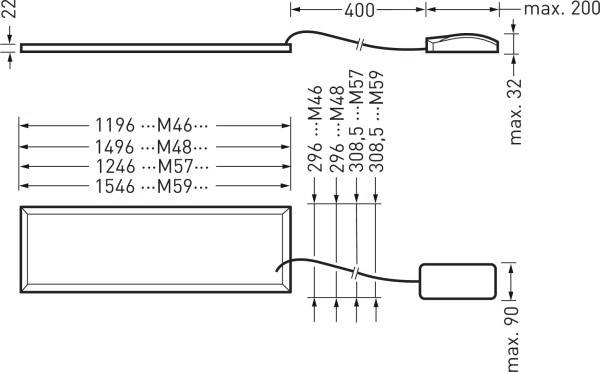

Technical drawing of a radiator with dimensions: Length 1196–1546 mm, Width 400 mm, Height 22 mm; with cable and control panel.
1/2
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 42 W
  • Total luminous flux= 5000 lm
  • Colour temperature= 3000 K
  • White

Technical specifications

Dim

(L x W x H) 1496 x 296 x 22 mm

Type

Rectangular

Operating voltage

220 V

240 V

No. of bulbs

1

Product type

LED ceiling light

Width

296 mm

Bulb type

LED (monochrome)

Height

22 mm

LED

Length

1496 mm

Rating per bulb

42 W

Depth

22 mm

42 W

Light features

Ceiling mount option

Recess mount option

Protection class

II

IP20

Factory colour

White

Material

Aluminium

Weight

4.2 kg

n.rel.

Colour rendering index

80-89

Colour

White

Light bulb included

Yes

3000 K

Colour temperature (max.)

3000 K

Colour temperature (min.)

3000 K

Colour temperature range

3000 - 3000 K

Total luminous flux

5000 lm

5000 lm

Recess length

1496 mm

Recess width

296 mm

Recess depth

160 mm

Radiation angle

80°

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2610843 Trilux 7535740 ArimoFit M48#7535740 LED ceiling light LED (monochrome) LED 42 W White

User & Safety Instructions

User & Safety Instructions 2610843 Trilux 7535740 ArimoFit M48#7535740 LED ceiling light LED (monochrome) LED 42 W White

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
