Trilux 7625762 CreavoAct M #7625762 LED ceiling light LED (monochrome) LED 39 W White

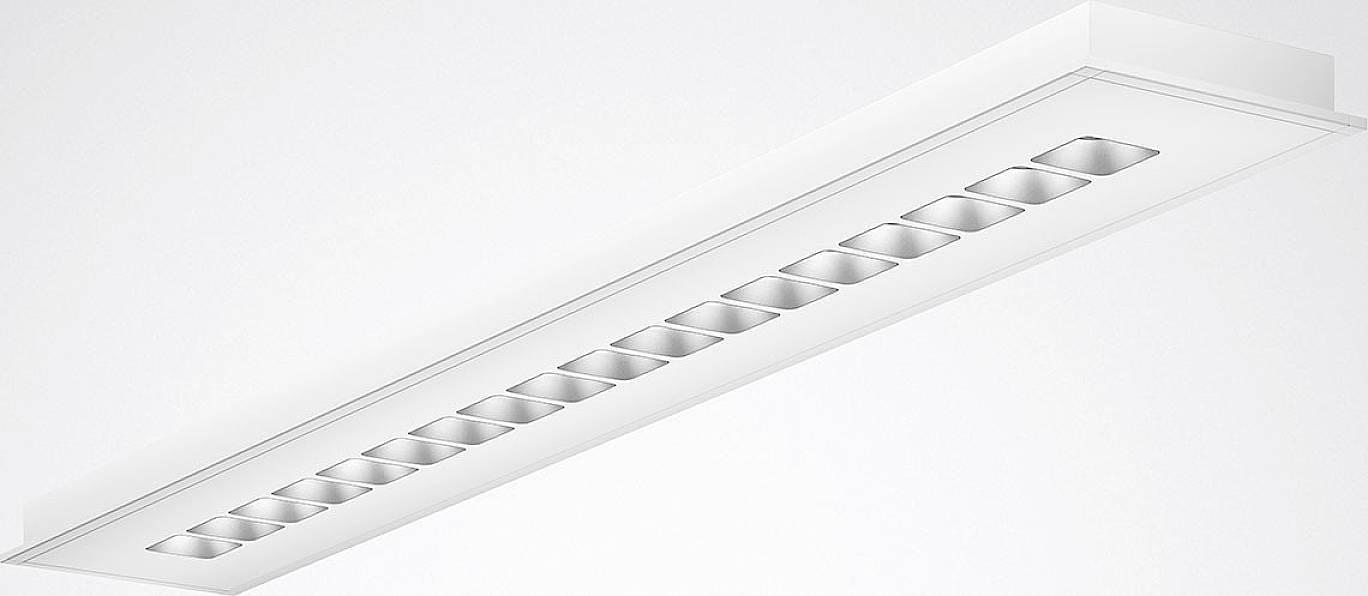

A simple, rectangular LED ceiling light with multiple built-in reflectors, suitable for modern interior lighting.
Technical drawing of a rectangular light fitting with dimensions: Length 1247 to 1547 mm, Width 184 mm, Height 85 mm.
1/2
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 39 W
  • Total luminous flux= 4200 lm
  • Colour temperature= 4000 K
  • White

Technical specifications

Dim

(L x W x H) 1247 x 184 x 90 mm

Type

Rectangular

Operating voltage

220 V

240 V

No. of bulbs

1

Product type

LED ceiling light

Width

184 mm

Bulb type

LED (monochrome)

Height

90 mm

LED

Length

1247 mm

Rating per bulb

39 W

Depth

90 mm

39 W

Light features

Ceiling mount option

Recess mount option

Dimmable

Selectable colour

Protection class

I

IP20

Factory colour

White

Material

Steel

Weight

7.0 kg

n.rel.

Colour rendering index

80-89

Colour

White

Light bulb included

Yes

4000 K

Colour temperature (max.)

6500 K

Colour temperature (min.)

2700 K

Colour temperature range

2700 - 6500 K

Total luminous flux

4200 lm

4200 lm

Recess length

1224 mm

Recess width

165 mm

Recess depth

85 mm

Radiation angle

80°

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2603023 Trilux 7625762 CreavoAct M #7625762 LED ceiling light LED (monochrome) LED 39 W White

User & Safety Instructions

User & Safety Instructions 2603023 Trilux 7625762 CreavoAct M #7625762 LED ceiling light LED (monochrome) LED 39 W White
